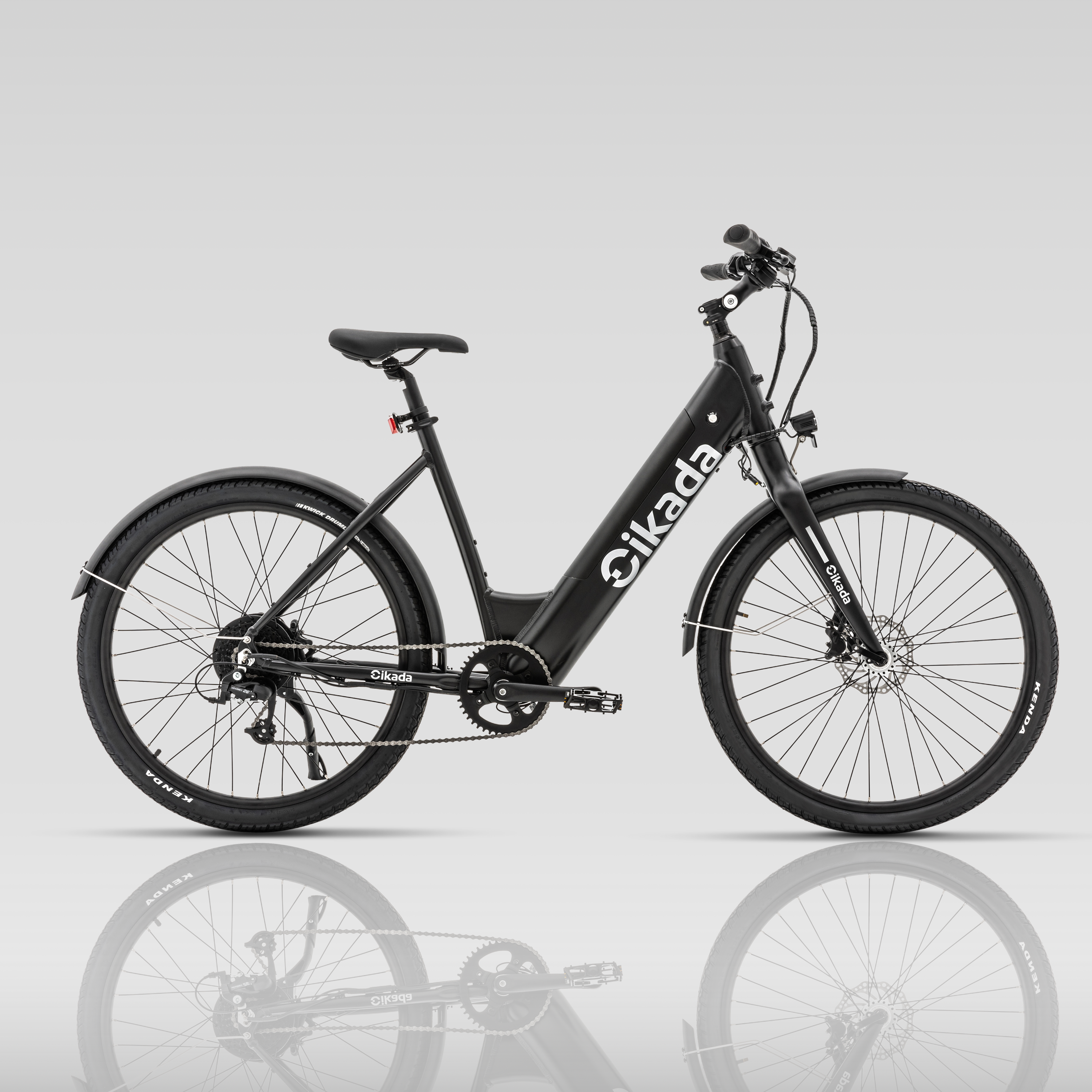

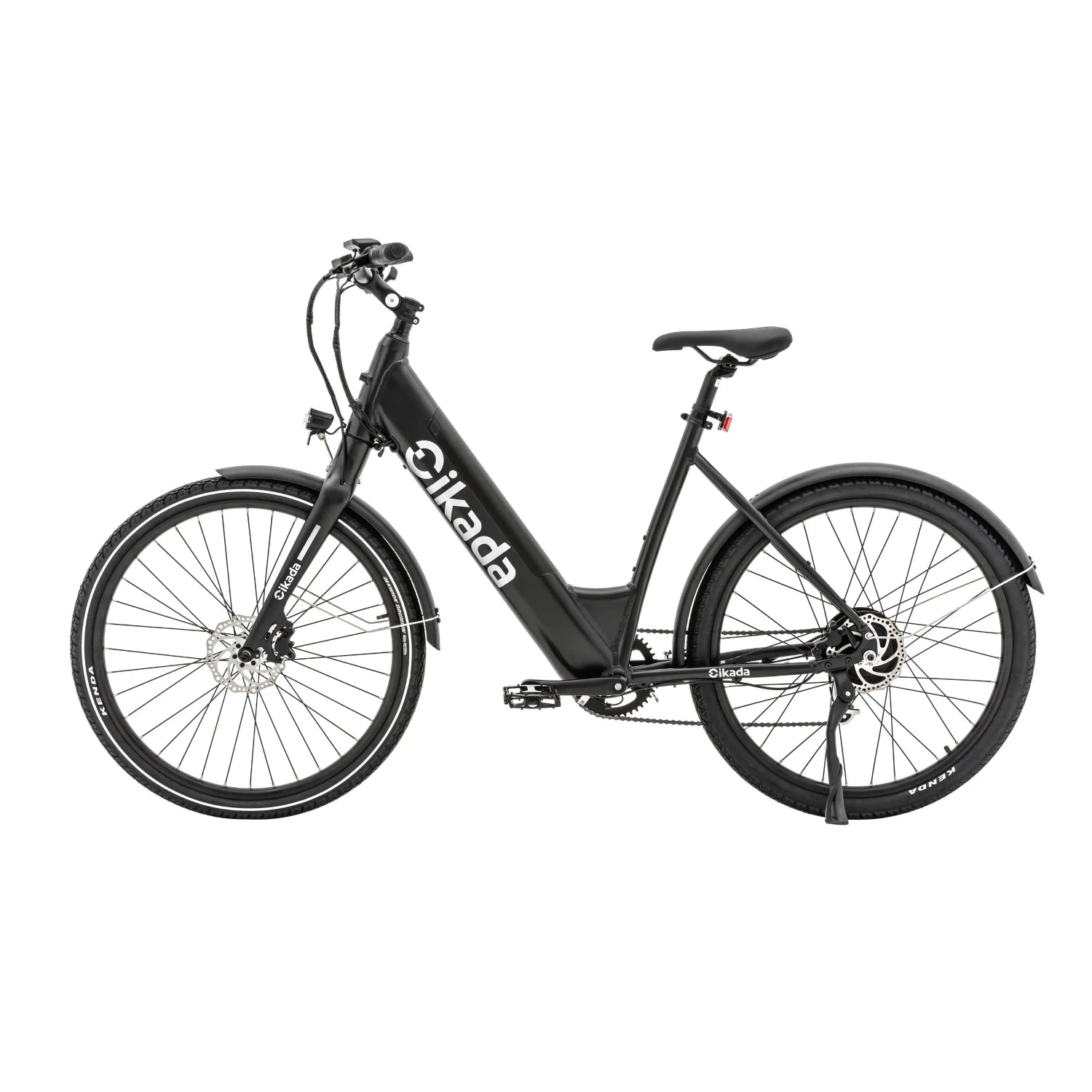

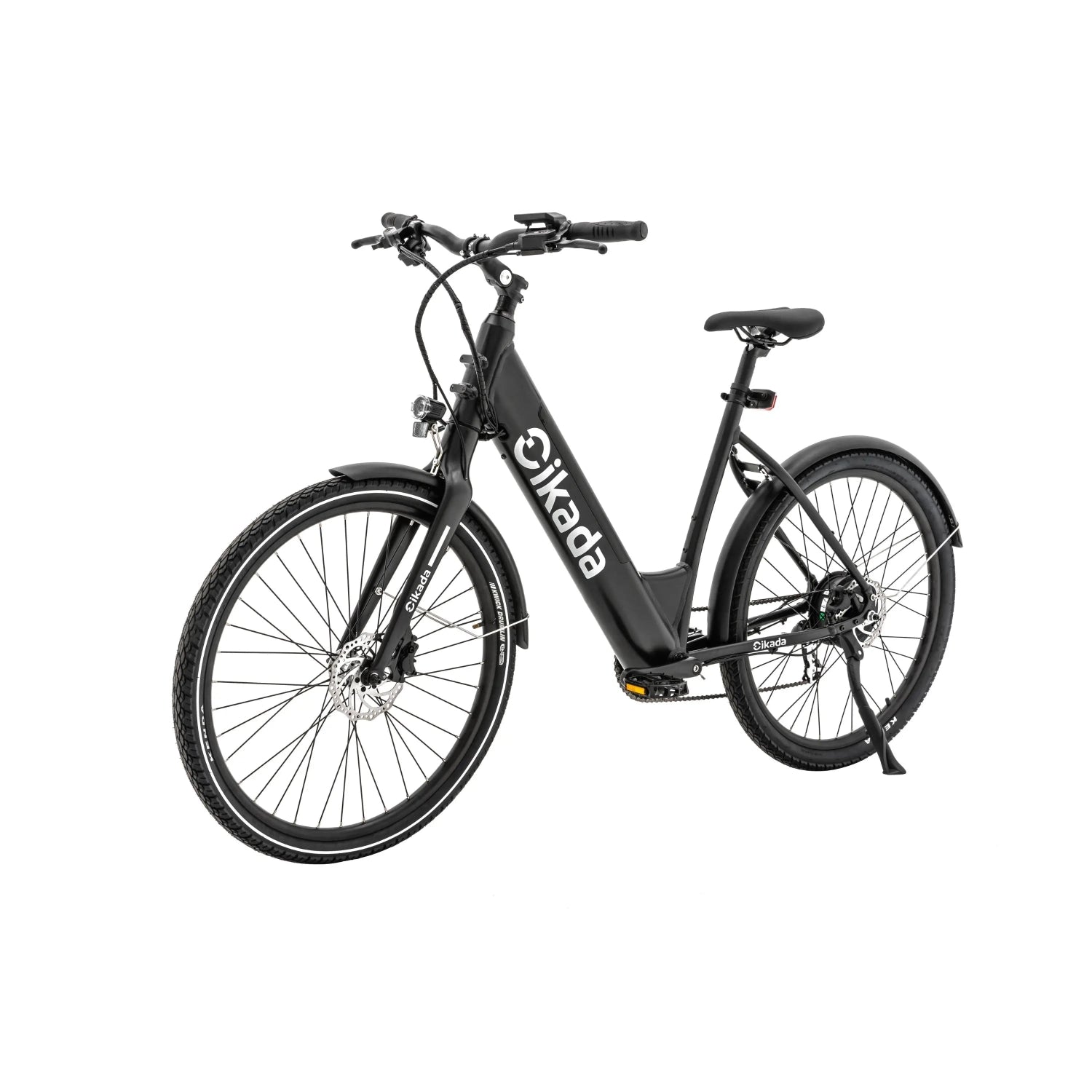

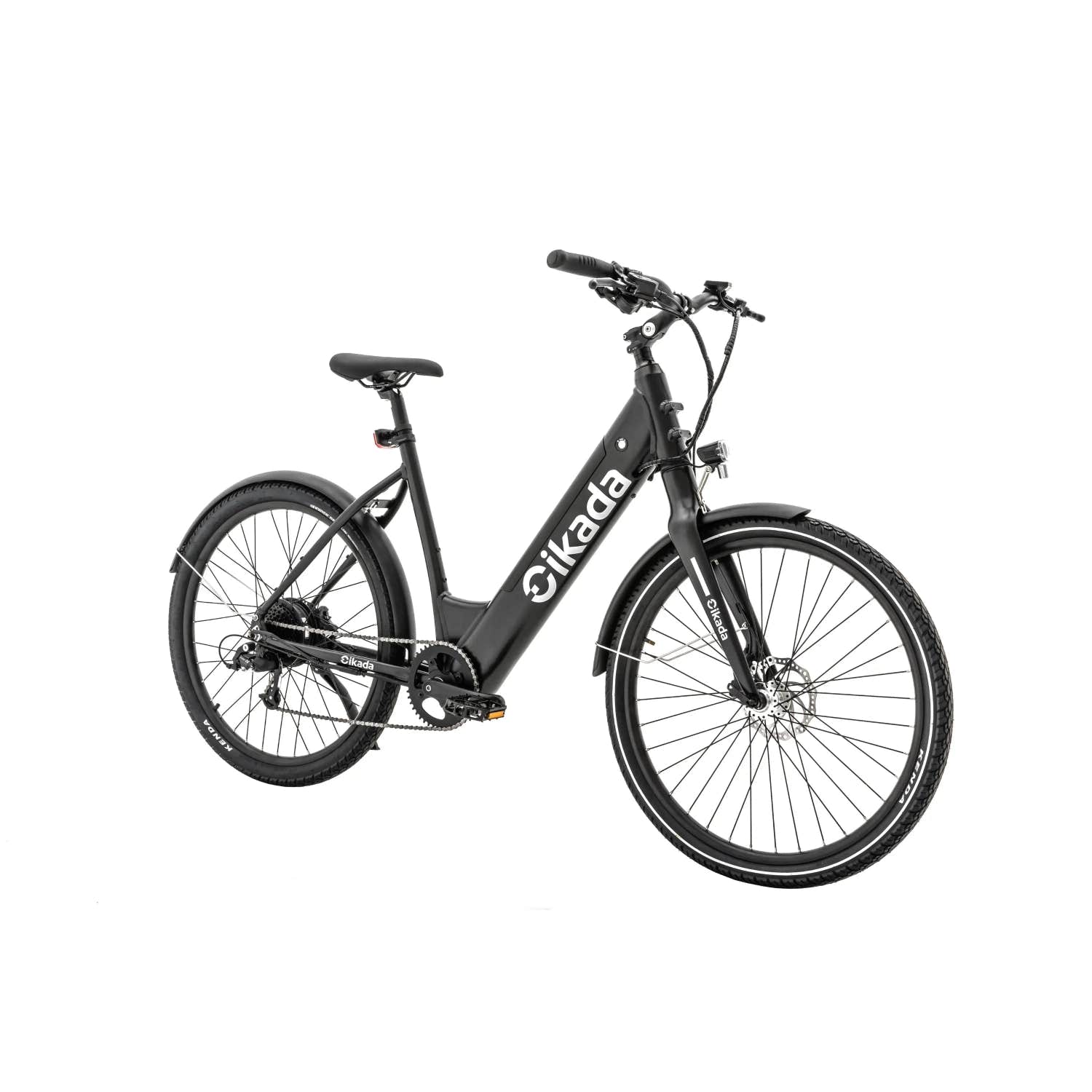

Cikada City E-Bike
The Cikada Promise
We offer an unprecedented 30-day trial period on all our e-Bikes. If you are not completely satisfied with your e-Bike, we will refund your purchase, no questions asked.
City e-Bike Highlights
- Versatile and sturdy hybrid for everyday use, city commuting, and leisure riding
- Smooth, comfortable ride
- Clear LCD display with Bluetooth connectivity and 5 pedal assist levels
- Integrated 480Wh battery with a complete charge from flat within 6-8 hours
- Plenty of power to tackle hills with 40nm of torque
- Hydraulic disc brakes and a rigid fork for enhanced durability and added safety
- Maximum Range: 90km (56mi)
- Maximum Assisted Speed: 25kph (15.5mph)
Shipping and Returns
We offer free Returns within 30 days of the original purchase date or with a small fee within 90 days. See terms and conditions.
Choose options
Motor
BaFang H400B 250W rear hub motor
Tires
Kenda, 27.5*2.00 Anti-puncture
Battery
480Wh (48V/10Ah) LG 21700
Maximum Range
90km (56mi)
Torque Sensor
BaFang SR PA221.32.ST.C B.B.
Reshape the way you get around. Redefine your ride.
Be Free In The City. Do More. Go Further.
Stay Connected: The Cikada App
Download the Cikada App for iPhone or Android smartphones to take advantage of the City E-Bike's integrated navigation and console features.
BaFang e-Motor
BaFang 500W/40Nm H400 Rear Drive Motor
BaFang is a world leader in the manufacturing of e-Bike motors. The City's rear drive motor delivers a high quality ride with powerful and efficient propulsion. It ensures a smooth and responsive ride on challenging terrains and its compact, lightweight design integrates seamlessly with our e-Bike, enhancing ride quality and stability.

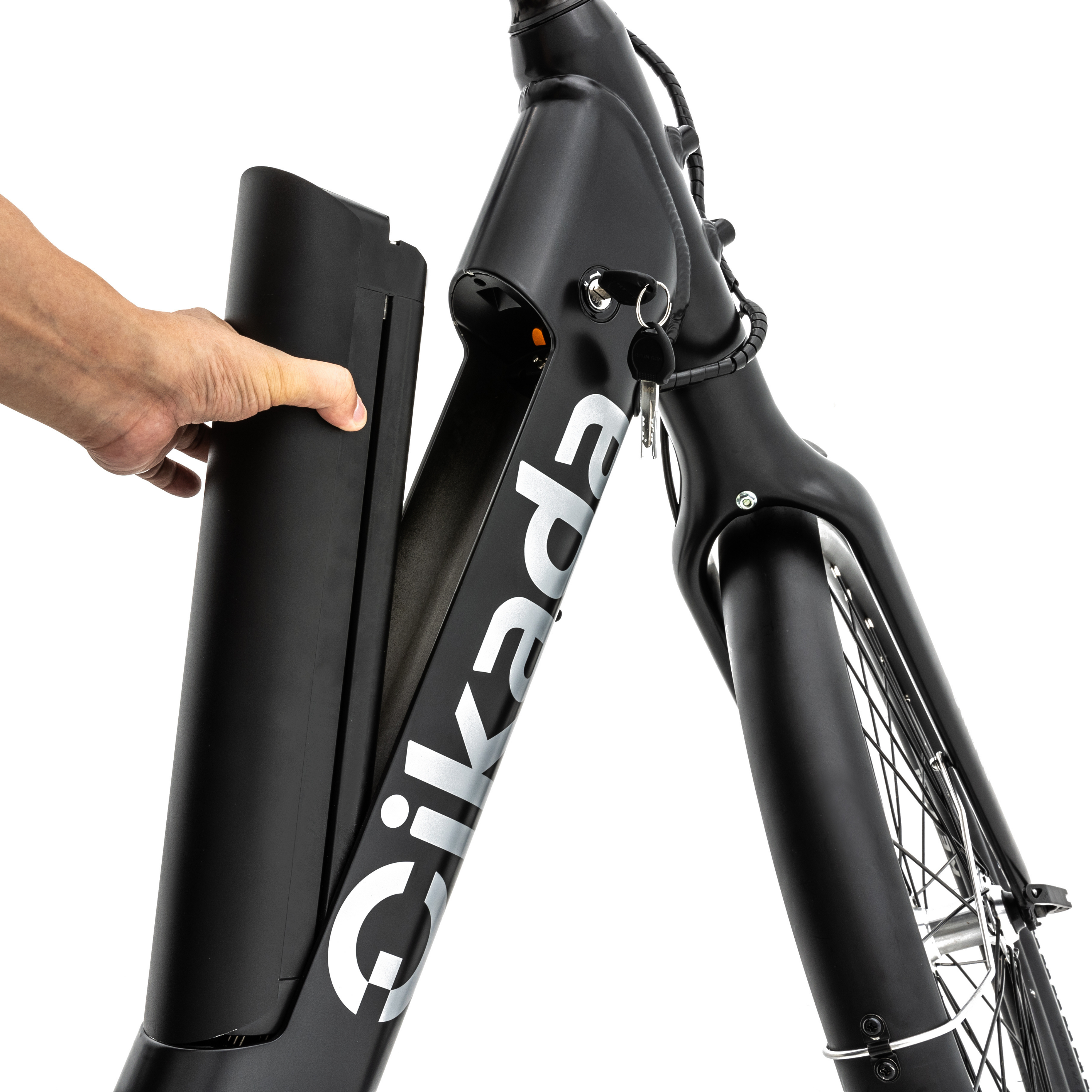

Removable Battery
480Wh LG 21700
Engineered with the highest safety features, the LG battery protects against overcharging, over-discharging, and overheating. The 480Wh battery provides long-lasting power and reliability, with a high capacity for extended rides and an easy-to-charge, removable design.
Turn Signals & Headlight
The City e-Bike boasts rear turn signals, enhancing safety on urban roads. Activated by convenient buttons on the handlebars, they provide clear signals to other road users.
Moreover, a front headlight, controlled via the front display console, illuminates your way during evening rides, ensuring visibility and security.

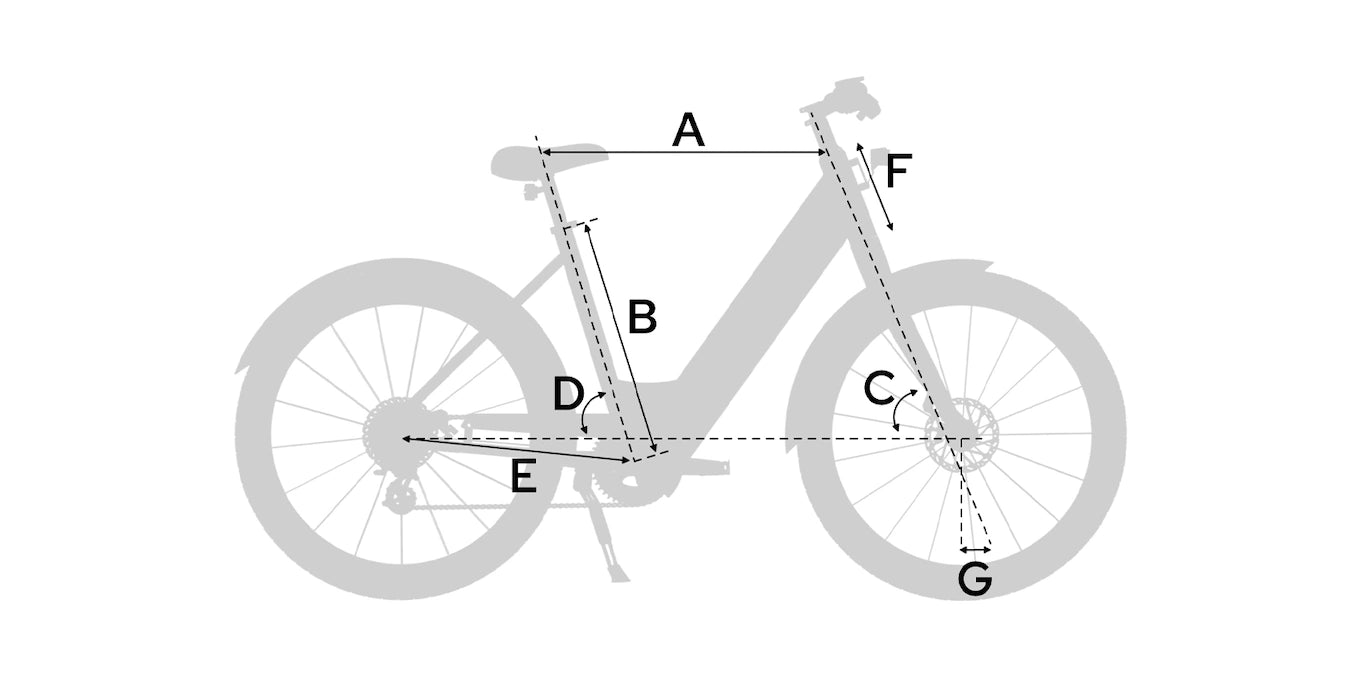

City e-Bike Geometry
City has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large |
|---|---|---|
| A - Effective Top Tube | 623mm (24.5″) | 621mm (24.4″) |
| B - Seat Tube Length | 480mm (18.9″) | 530mm (20.9″) |
| C - Head Tube Angle | 69° | 69° |
| D - Seat Tube Angle | 72.5° | 72.5° |
| E - Chain Stay Length | 485mm (19.1″) | 485mm (19.1″) |
| F - Head Tube Length | 185mm (7.3″) | 200mm (7.9″) |
| G - Trail | 80mm (3.1″) | 80mm (3.1″) |
Detailed Specification
Full specification and detailed explanation of the City e-Bike construction and features.
Power System
Motor: BaFang H400B 250W rear hub motor; 40nm
Sensor: BaFang SR PA221.32.ST.C B.B. torque sensor
Battery: 480Wh (48V/10Ah) LG 21700 battery, 6-8h charging time; removable for charging on or off the bike; integrated battery lock for added safety
Controller: BaFang CR C101.C 48V 250W

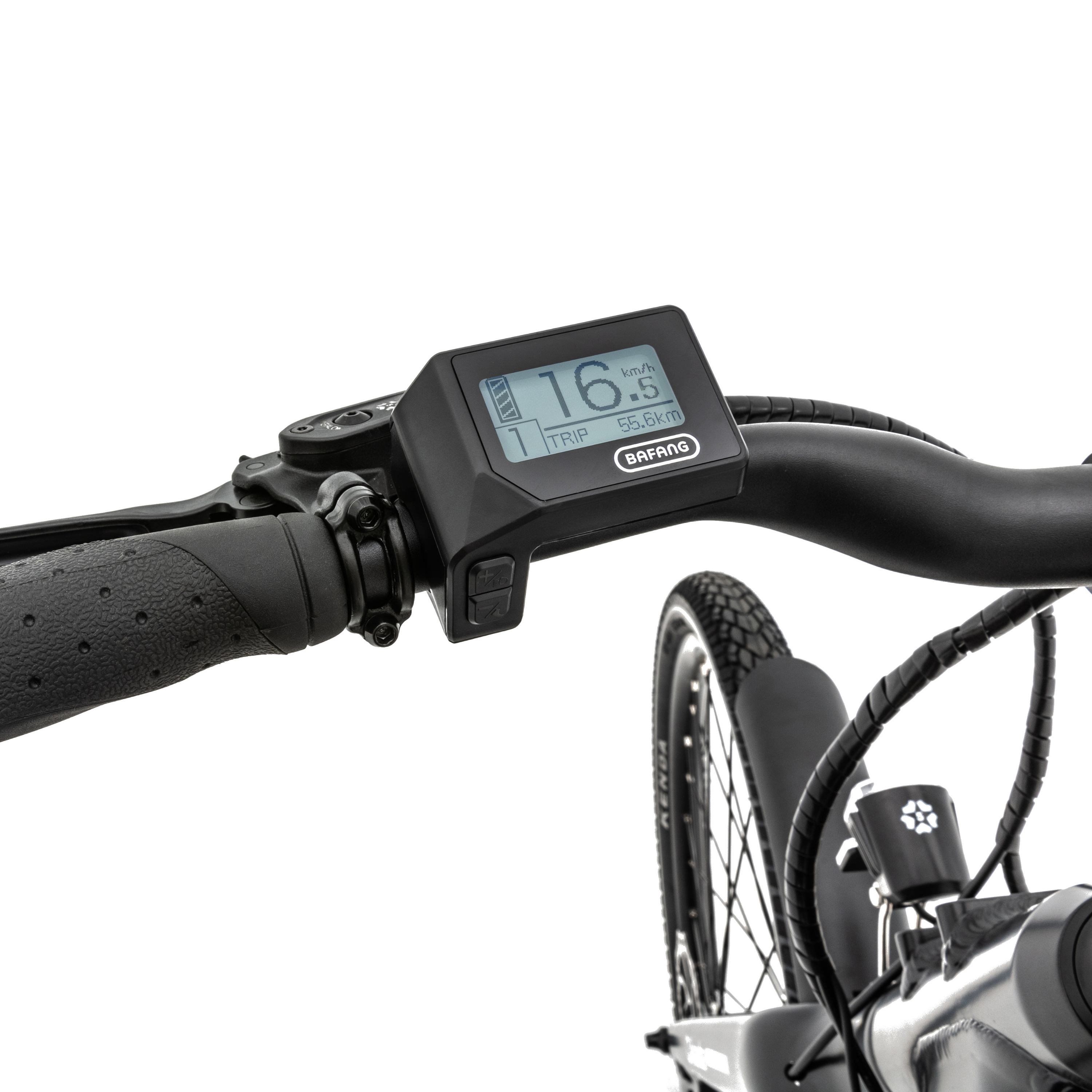

Display: BaFang DP C221.CAN with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset:
Frame: 27.5” 6061 aluminium low step frame
Fork: Alloy rigid fork, 10mm x 100mm (0.4” x 4”)
Wheels
Tyres: Kenda, 27.5*2.00 anti-puncture with a reflector strip
Rims: 27.5”, double wall, 36H
Inner Tubes: Kenda A/V
Hub: Front hub, aluminium, OLD 100mm 3.9”), 36H, with QR
Interactivity
Compatible Applications: Cikada app (Riding display/Ride summary/Ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: total distance/total time/ CO2 reduced/ total rides
Drive Train:
Crankset: Prowheel 44T 170mm (6.7”), with chain cover

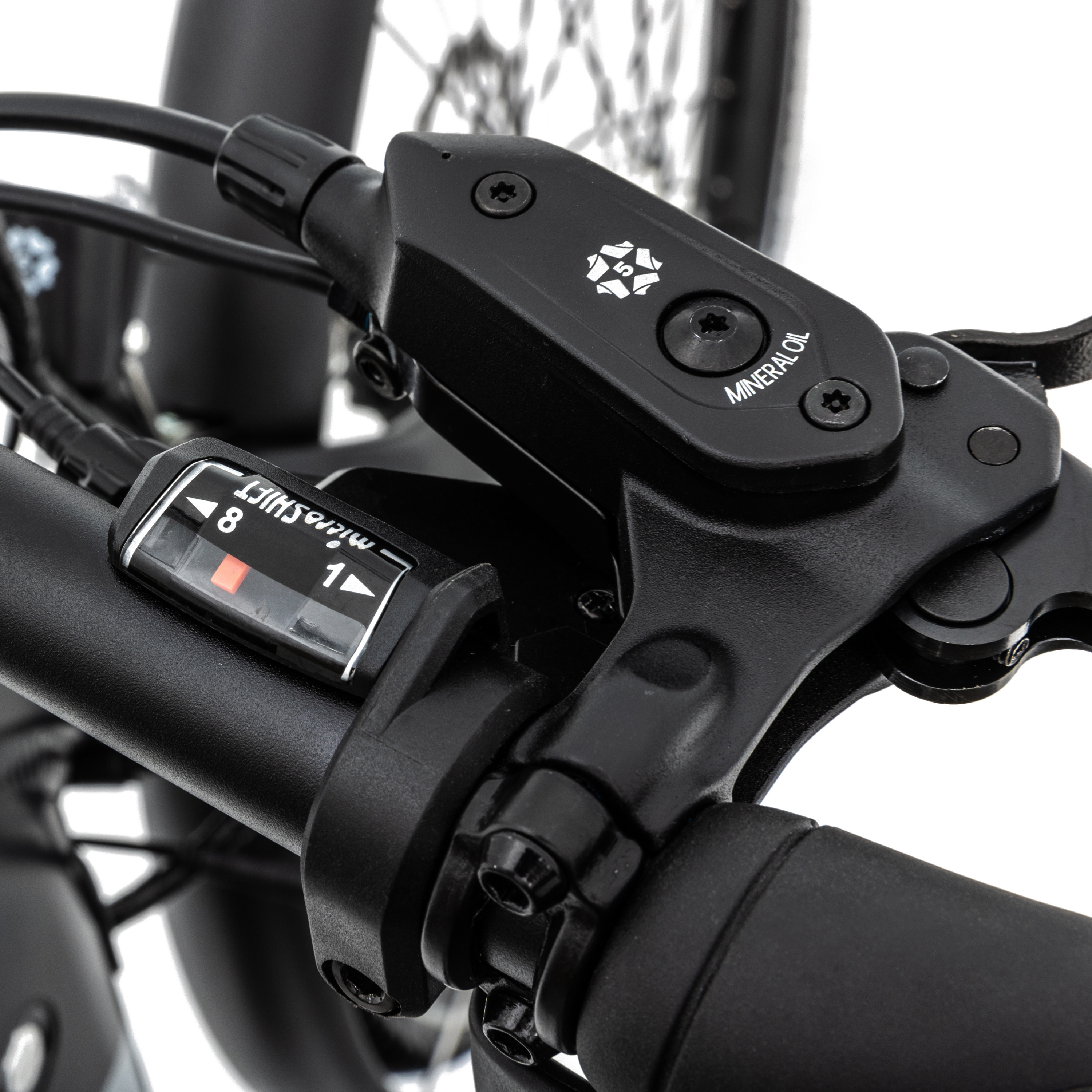

Shift Lever: Microshift TS-39 R, thumb-tap shifters
Rear Derailleur: Microshift RD-M26S
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, Z8.3
Pedals: W/CPSC REF, alloy body, 9/16” steel axle, size: 112mm x 108mm (4.4” x 4.3”)
Components
Brakes: Hydraulic disc brakes, rotor 160mm (6.3”); cut off power function
Handlebar: Zoom, aluminium, rise bar; width 680mm (27”), barbore 31.8mm (1.25”)
Stem: Zoom, adjustable aluminium; extension 105mm (4”), barbore 31.8mm (1.25”)
Saddle: Ergonomic leather saddle with a steel seat rail
Seatpost: Zoom, aluminium (31mm x 300mm/ 1.2” x 12” for size L, 31mm x 250mm/ 1.2” x 10” for size M)
Grips: Velo At-rubber/gel
Bottom Bracket: BB73
Additional Information
Product Weight: 26kg (57lbs)
Maximum User Weight: 140kg (309lbs)
Size Options
M: 19” (48cm) for riders between 5’2”-5’9” (157cm - 175cm) in height
L: 21” (53cm) for riders between 5’5”-6’4” (165cm - 193cm) in height
Accessories
K-Mark front light
Rear light
Sunny wheel mudguards
Reflector
Aluminium kickstand
