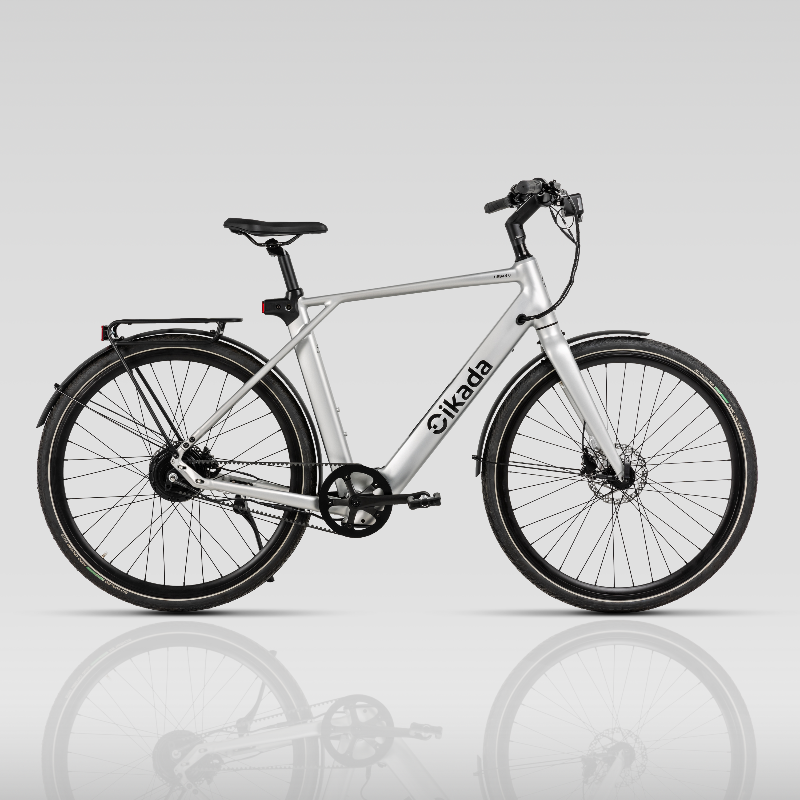

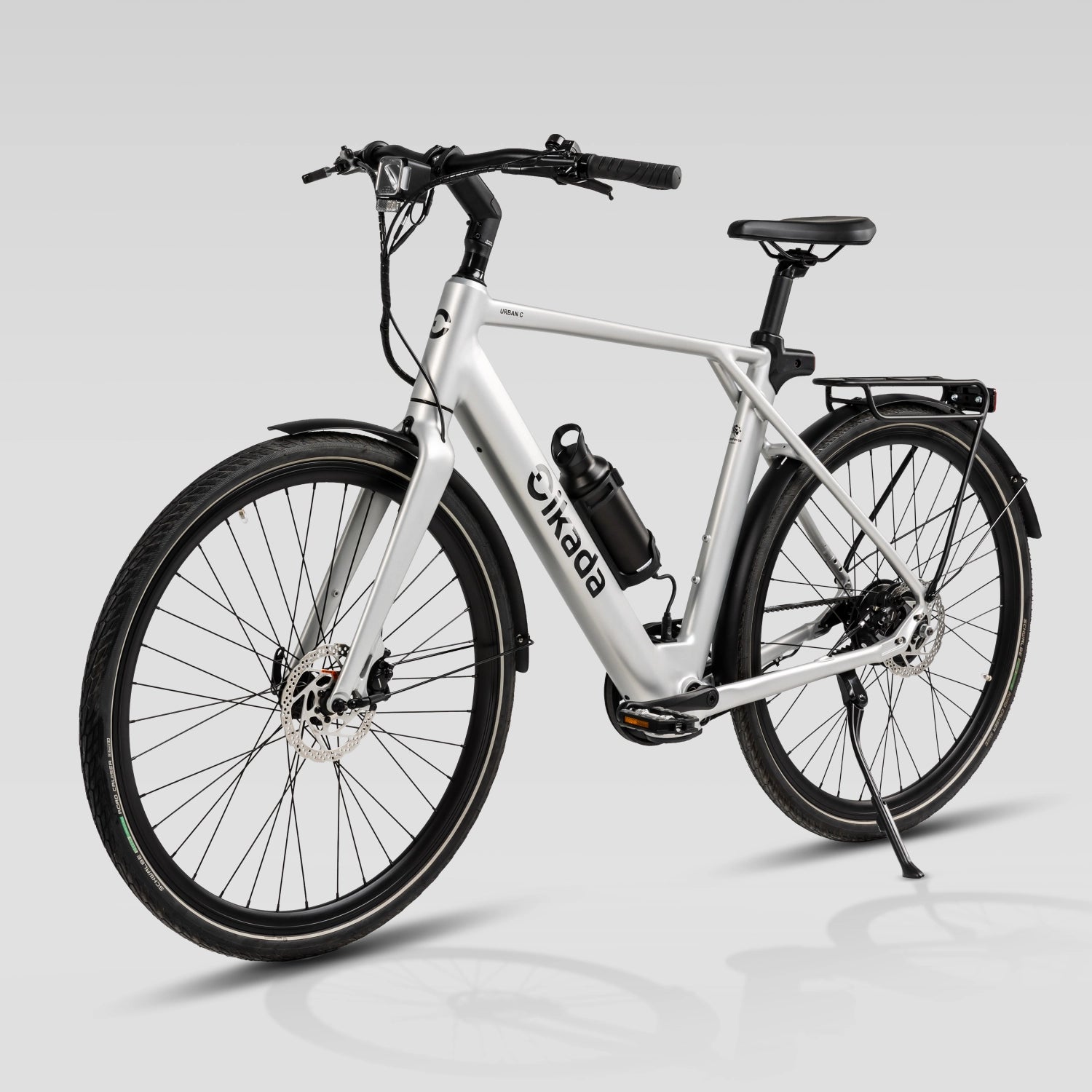

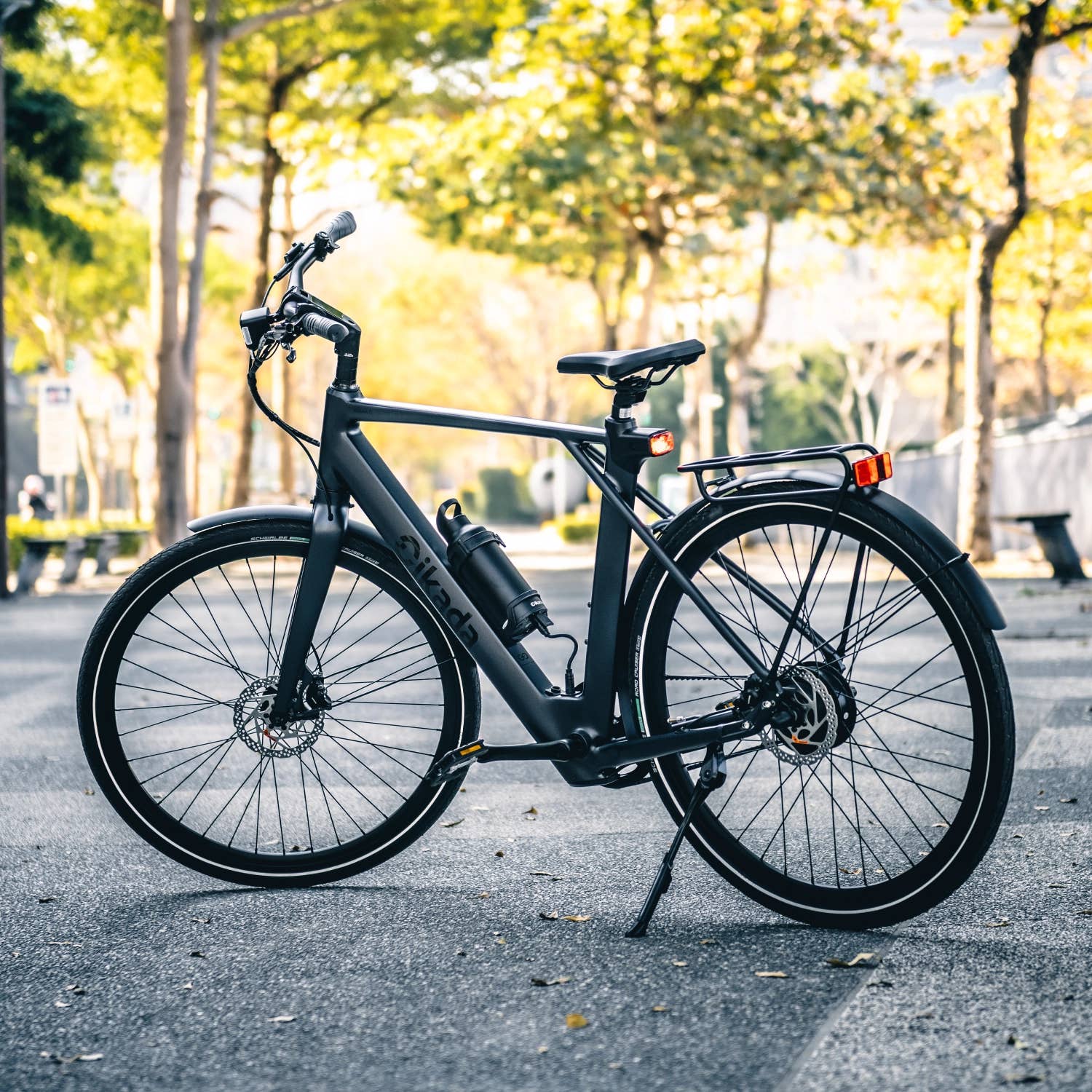

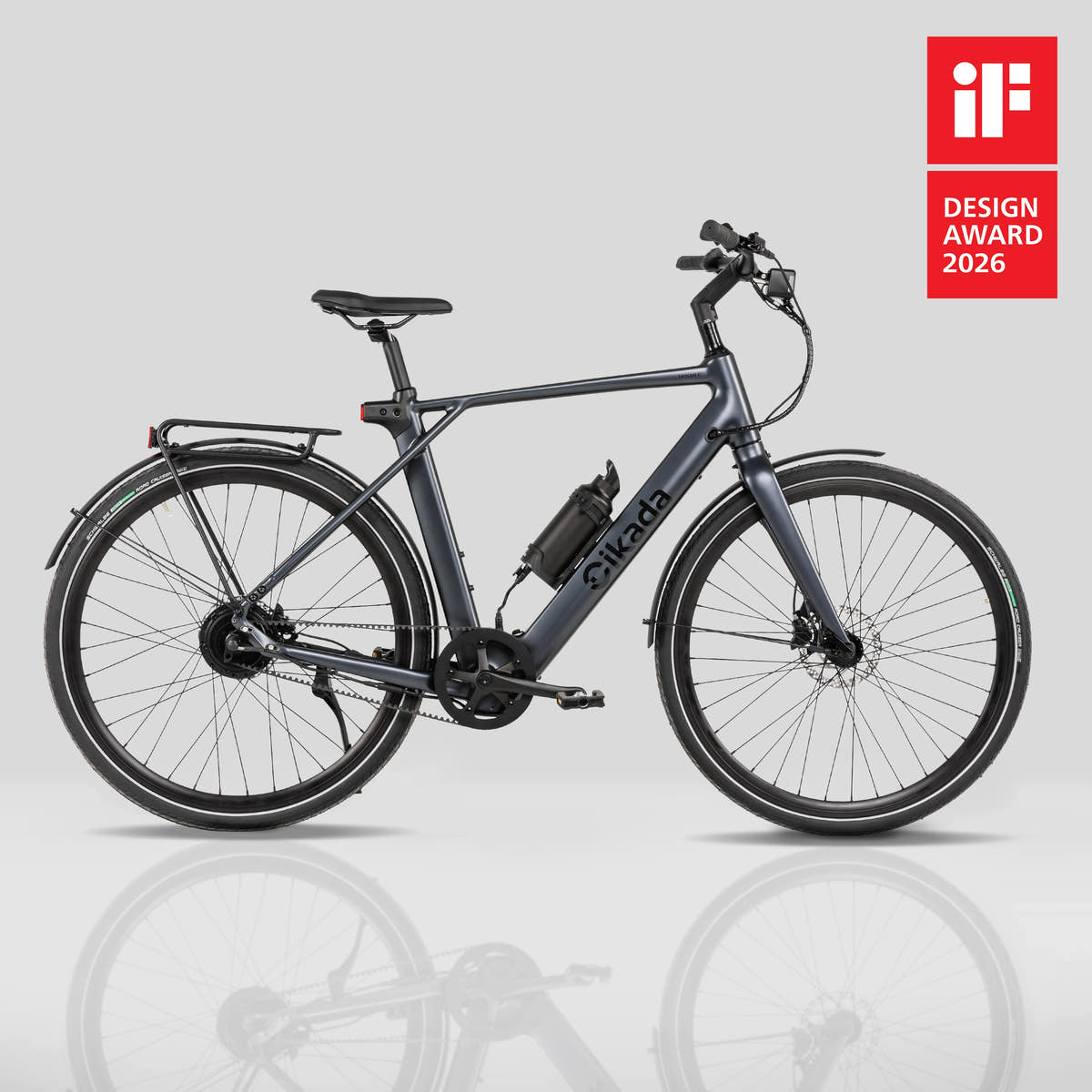

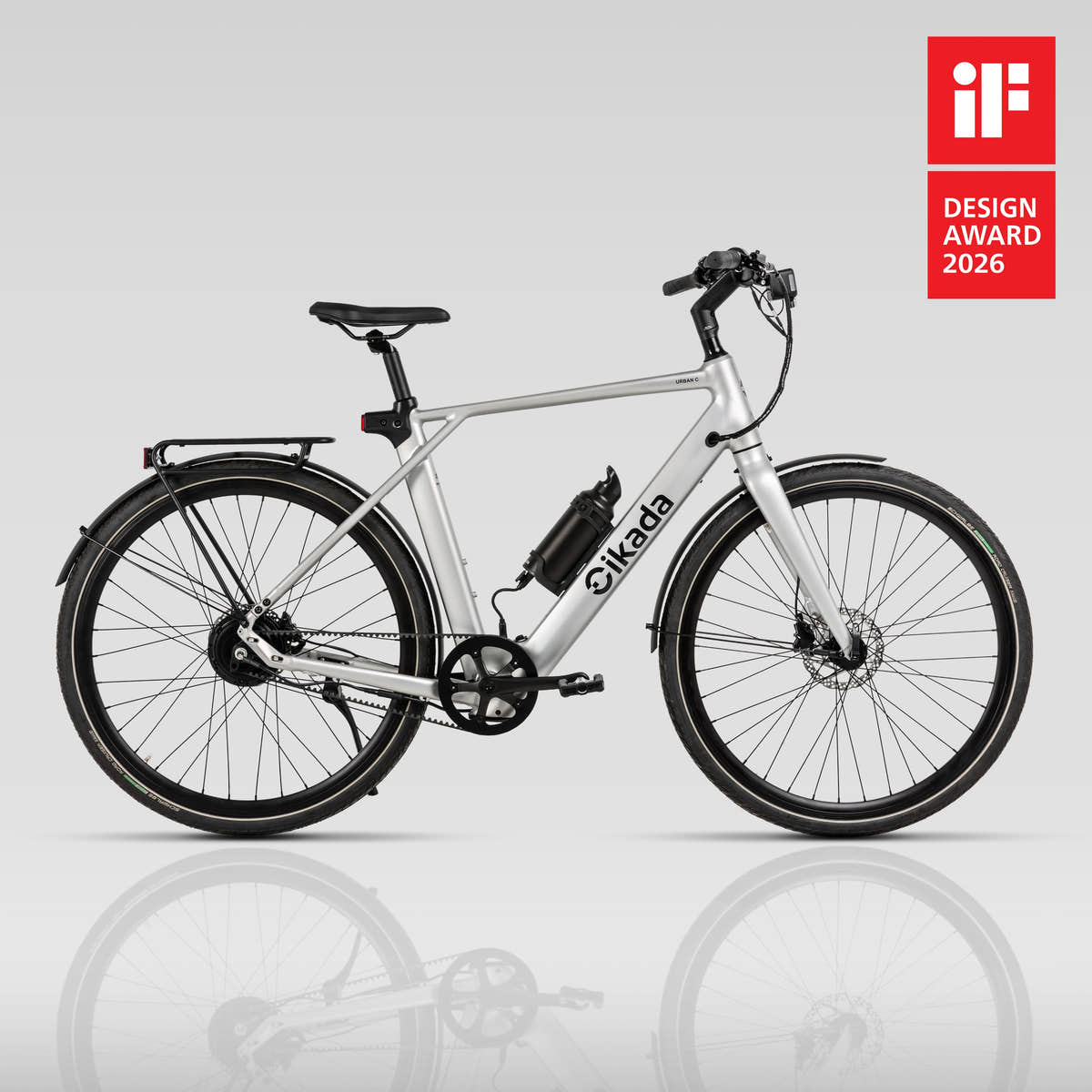

Urban Cruise
The Urban C offers a comfortable ride, ideal for daily commutes and town rides. It provides a smooth cruising experience in urban and suburban areas, blending simplicity and ease with its single-speed configuration and belt drive. The belt drive reduces maintenance, making the Urban C a reliable, eco-friendly transport option.
Equipped with smart features, the Urban C records route, ride data, and tracks emissions, enhancing your experience with the FocusRide stem-integrated TFT display, connecting seamlessly via Bluetooth with the Cikada Connect app. Choose from 3 pedal assist modes and power your rides with the responsive 250W rear hub motor, delivering 40Nm of torque for a sporty urban feel with moderate hill support.
Featuring an in-tube Samsung 353Wh battery with premium cells, it ensures maximum efficiency, a smooth ride, and consistent power delivery. A great partner for long-range commuting, the Urban C features a dual-battery-ready system that extends its range from 60km (37mi) to up to 90km (56mi) with an optional 250Wh water bottle battery.
With DynaForce multi-sensor technology, the Urban C provides a natural riding feel, while Shimano hydraulic disc brakes offer added safety and complete ride control. Designed for comfort, reliability, and responsive urban riding, the Urban C delivers quick acceleration, as well as smooth and easy traffic navigation. Its straightforward design lets you focus on enjoying your ride without the need for gear shifting or complex adjustments.
Cikada Urban C e-Bike Highlights
- Dual-battery-ready system for extended riding distance
- Maximum Range: 60km (37mi) (up to90km (56mi) with an optional water bottle battery)
- Maximum Assisted Speed: 25kph (15.5mph)
- Relaxed and effortless cruising experience
- Premium Samsung 353Wh in-tube battery
- Great combination of simplicity, comfort, and ease of use
- Single-speed configuration with no gears for less maintenance and no complex adjustments
- Stem-integrated TFT display with Bluetooth for seamless connection with the Cikada app and smart e-Bike control
- 40Nm of torque for steady hill support
- Sleek and agile fixie design
- Integrates efficiency, style, environmental consciousness, and smart technology into the visionary rider’s daily commute
- Perfect for urban commuters seeking a hassle-free and reliable e-Bike for daily use
Choose options
What makes the Urban Cruise e-Bike so special.
Highlighted Features
Motor
DynaForce 250W rear hub motor; 40Nm
Tires
Schwalbe Road Cruiser KGuard, 700C wheels
Battery
Samsung 21700/36V/9.8Ah/353Wh
Maximum Range
60km (37mi) with main battery & up to 90km (56mi) with the optional water bottle battery
Torque Sensor
Mounted on bottom
bracket
Responsive Riding with Urban C
Relaxed, Effortless Urban Cruising Experience

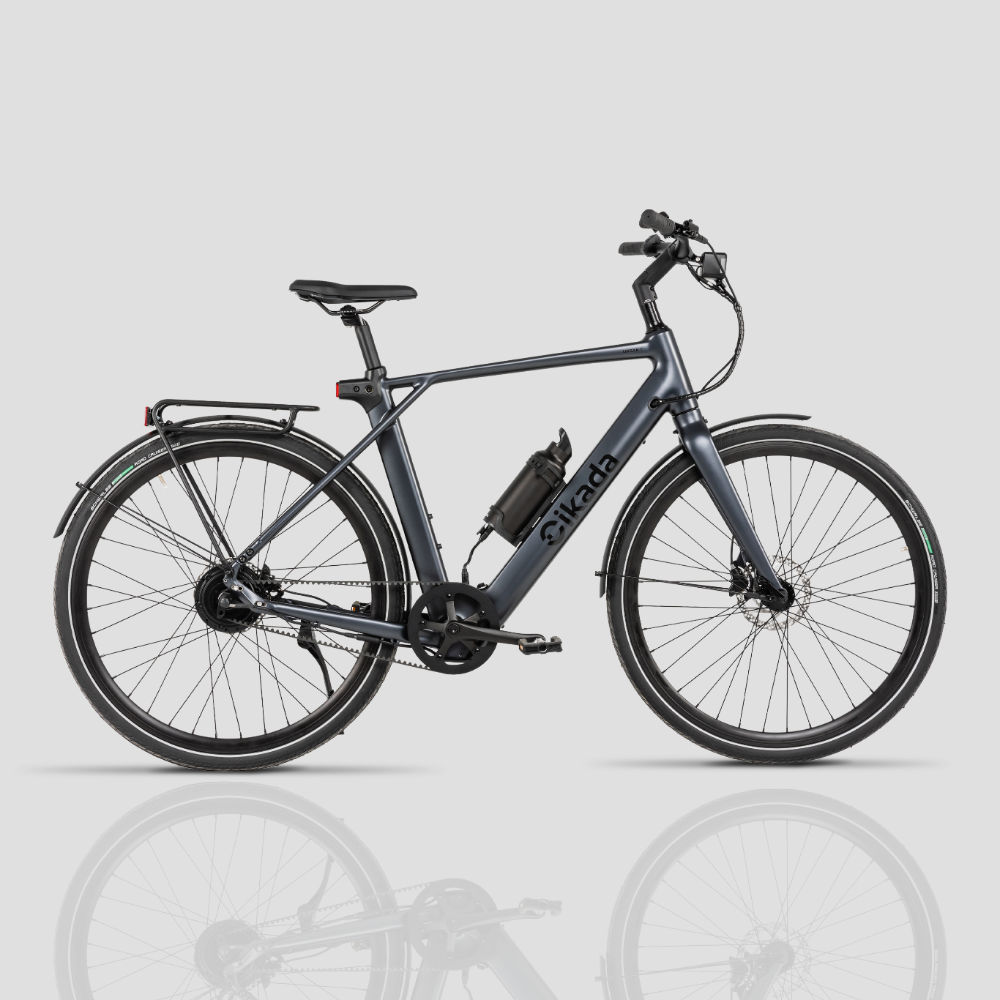

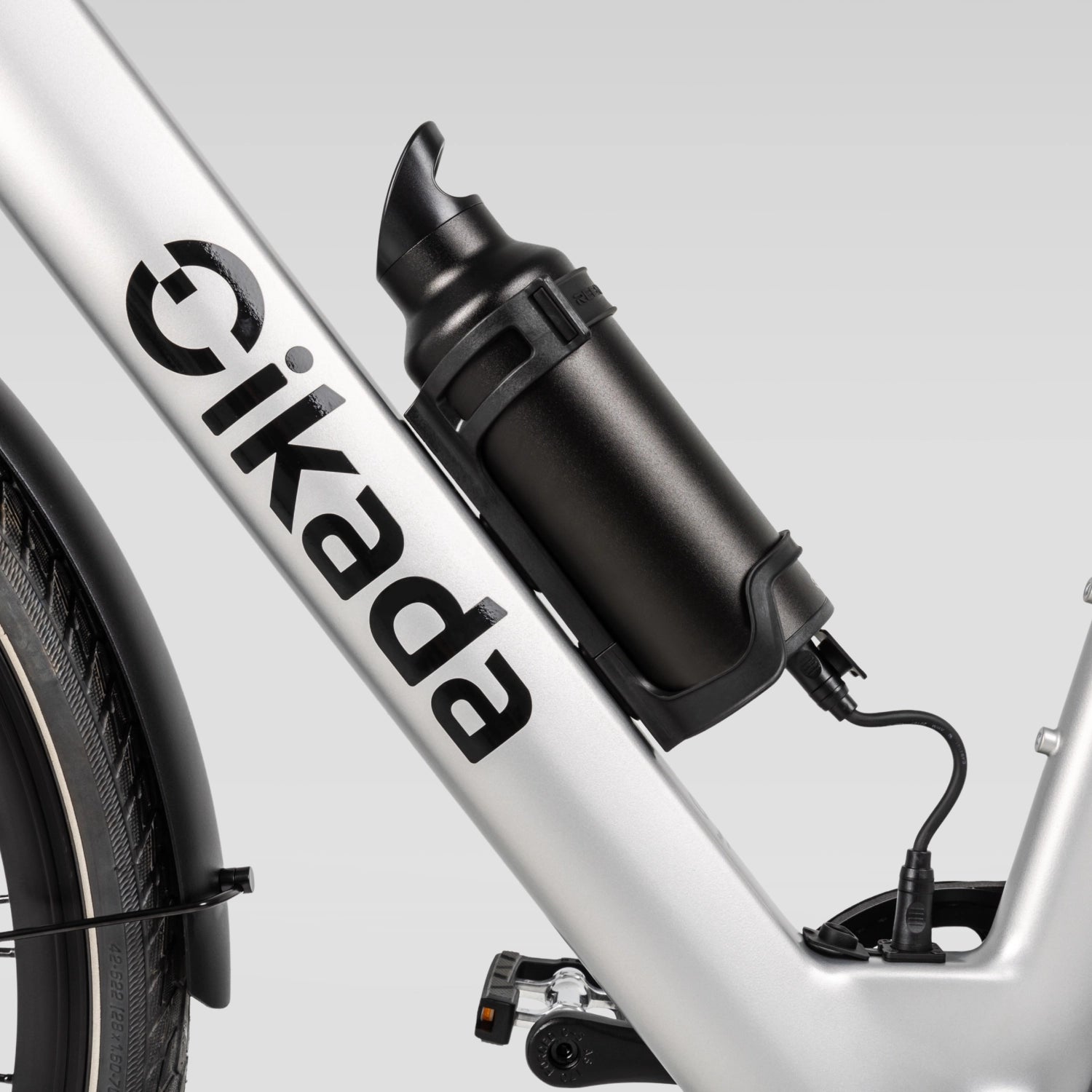

Extended Range

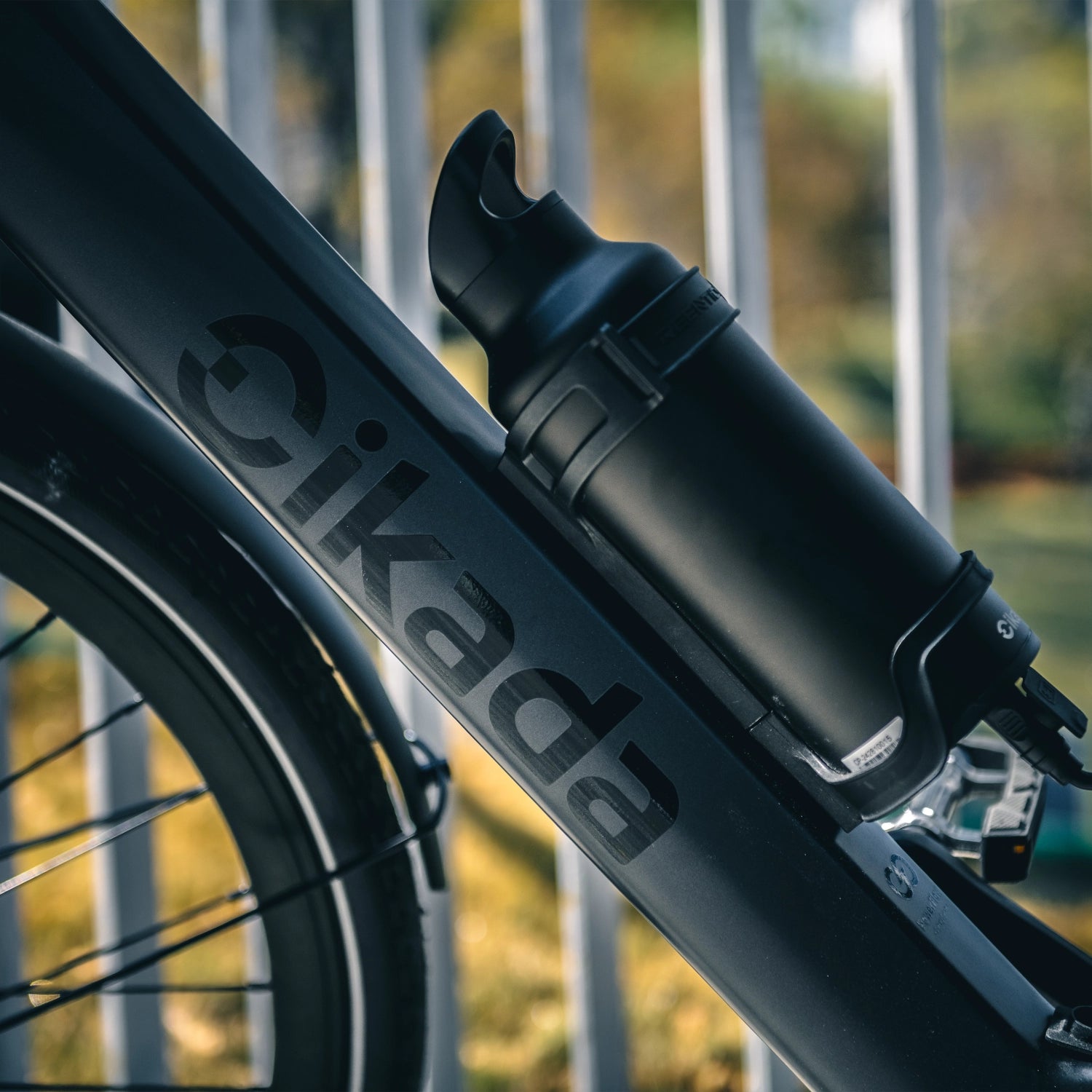

Ideal for long-range commuting, the Urban C’s dual-battery-ready system extends range by up to 40% with minimal added weight. Enhance daily commutes, rides, and errands without power concerns. The Urban C increases assisted range from 60km (37mi) to 90km (56mi), with quick switching between a Samsung 353Wh battery and an optional 250Wh water bottle battery for flexibility and convenience.
City-Focused Simplicity
With its single-speed configuration, no derailleur, and no gears to shift, the Urban C lets you hop on and ride smoothly and quietly. Ideal for urban riding and simplicity-focused cyclists, the Urban C offers a perfect blend of reliability, low maintenance, and ease of use. The absence of a multi-gear drivetrain reduces weight, making the Urban C easier to handle and more agile in urban settings. Streamlined for city life, effortlessly simple, and super-sleek with a stylish fixie design, the Urban C combines efficiency, a modern minimalist look, and a hassle-free ride.

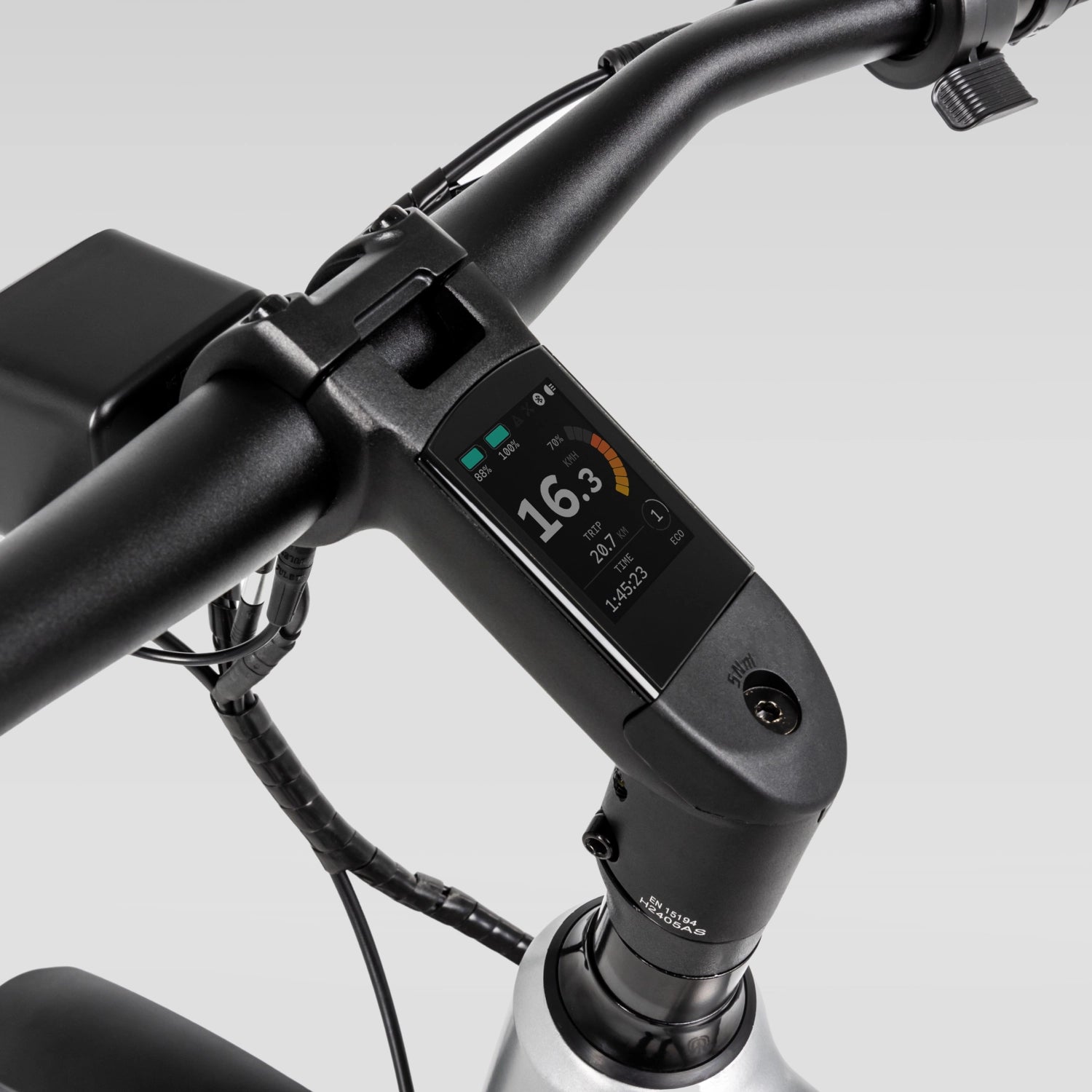

Stem-Integrated Smart Display

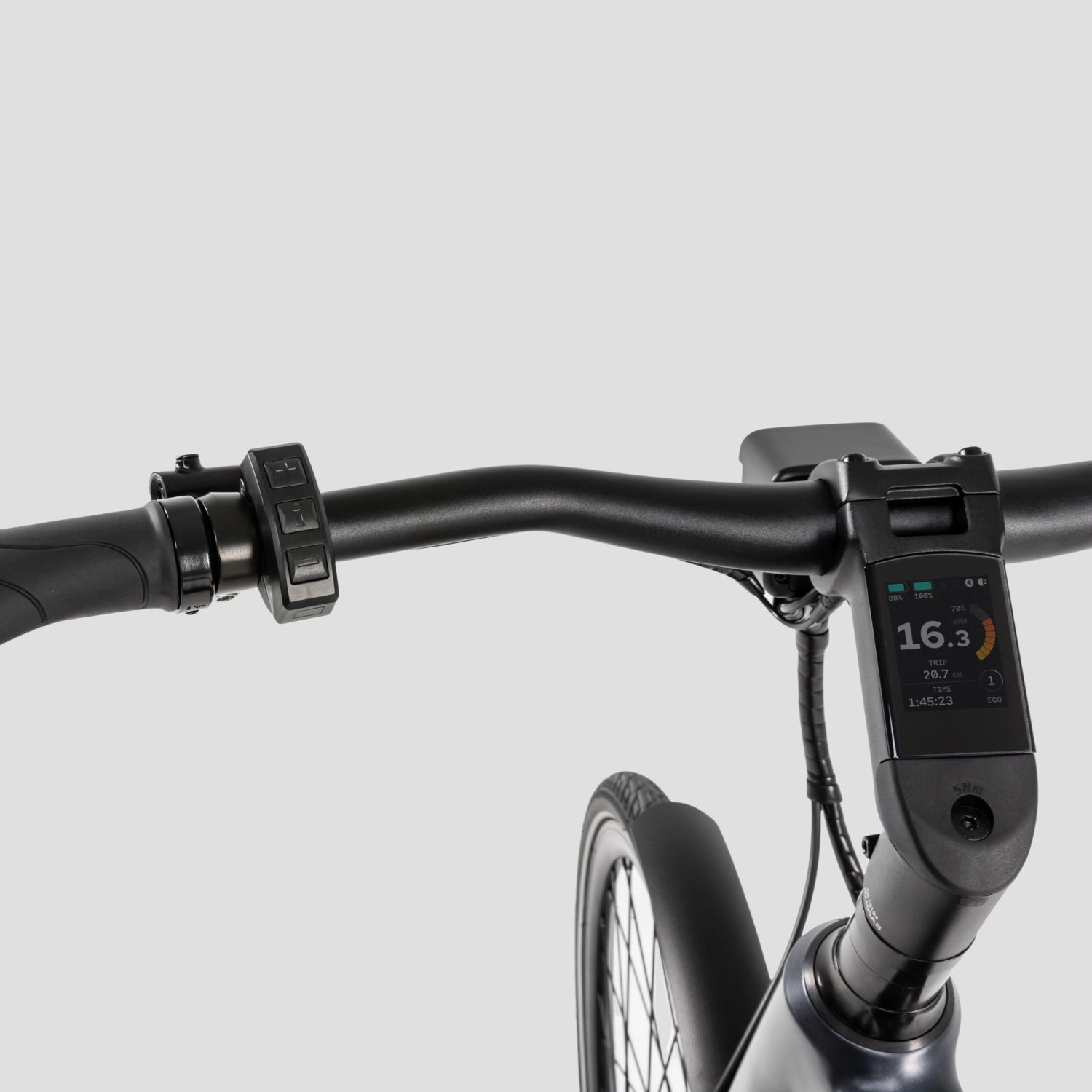

Combining a sleek, minimalist design with Bluetooth connectivity, the FocusRide console with a 2" TFT display not only enhances your overall riding experience but also serves as a central hub of information, providing real-time data and total ride control at your fingertips. Enjoy a distraction-free ride, intuitive city navigation, and a user-friendly interface to optimize your performance. Conveniently manage all your e-Bike’s functions and seamlessly sync with the Cikada Connect app to customize your ride, monitor and analyze key metrics, and record trips worth remembering.
Technology

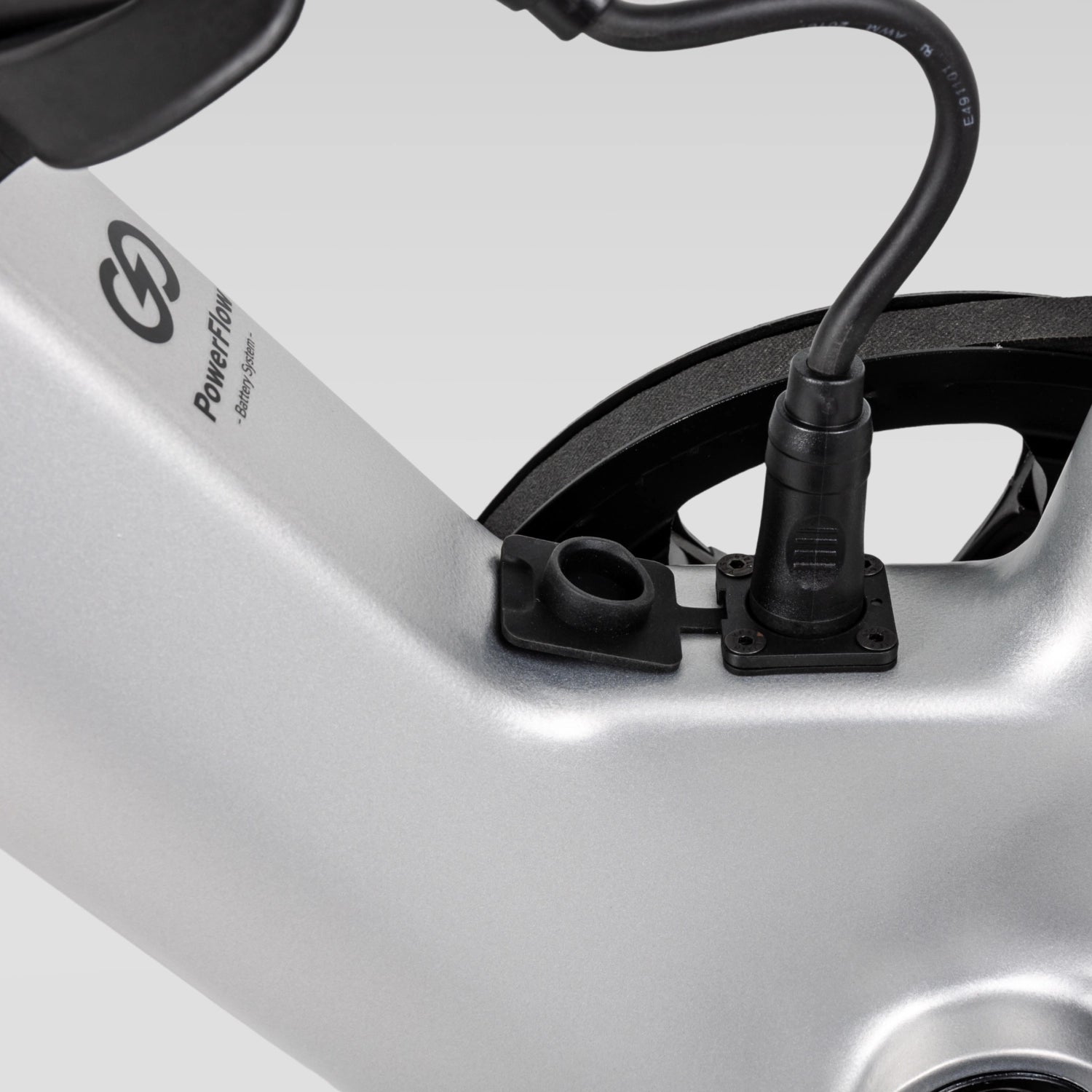

The Urban C integrates technologies for an effective e-biking experience. With DynaForce, it offers a natural ride feel and power via multi-sensor technology and a 250W rear hub motor with 40Nm torque. The stem-integrated FocusRide display provides road-focused data access, while PowerFlow battery technology and a dual-battery-ready system enhance performance across terrains.

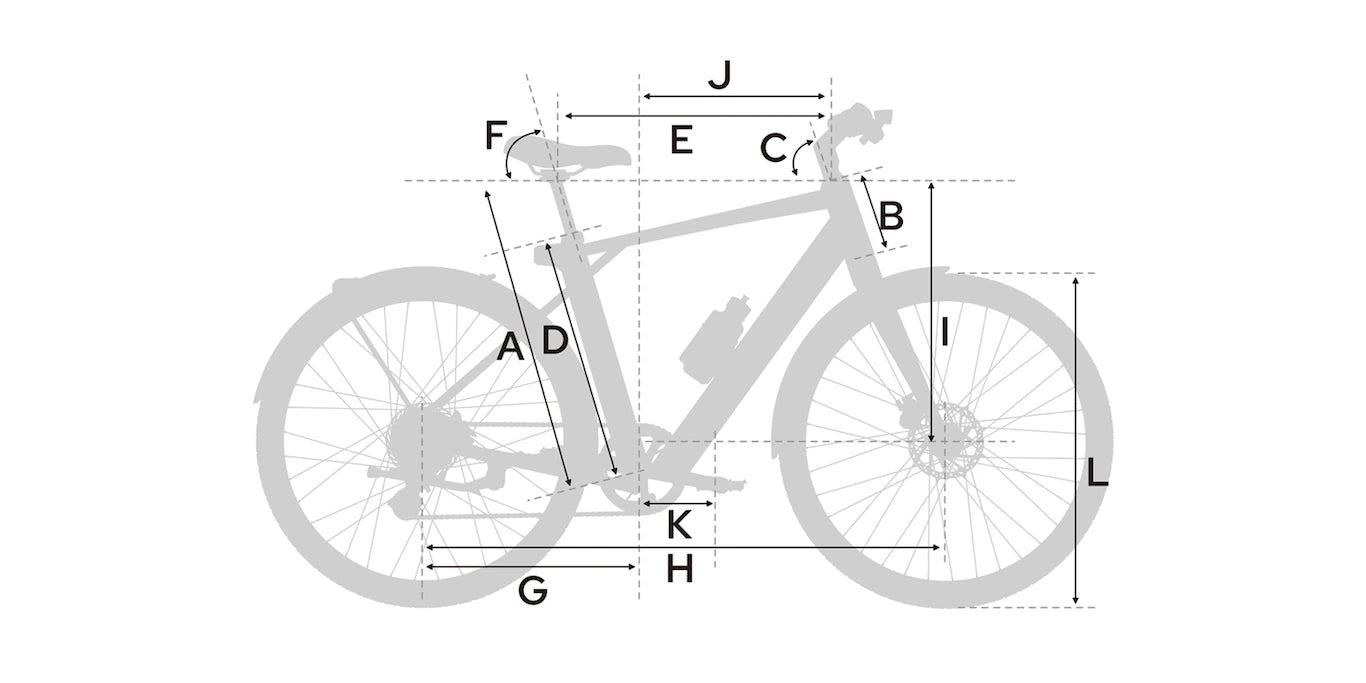

Urban Cruise e-Bike Geometry
Urban C has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large | Extra Large |
|---|---|---|---|
| A - Seat Height | Min: 610mm (24″), Max: 750mm (29.5″) | Min: 655mm (25.7″), Max: 805mm (31.6″) | Min: 685mm (27″), Max: 880mm (34.6″) |
| B - Head Tube Length | 175mm (6.8″) | 175mm (6.8″) | 175mm (6.8″) |
| C - Head Tube Angle | 71° | 71° | 71° |
| D - Seat Tube Length | 500mm (19.7″) | 540mm (21.2″) | 580mm (22.8″) |
| E - Top Tube Length | 579.4mm (22.8″) | 605mm (23.8″) | 623.5mm (24.5″) |
| F - Seat Tube Angle | 73.5° | 73.5° | 73.5° |
| G - Chainstay Length | 458.5mm (18″) | 458.5mm (18″) | 458.5mm (18″) |
| H - Wheel Base | 1095mm (43″) | 1121mm (44″) | 1140mm (45″) |
| I - Stack | 606.3mm (23.9″) | 606.3mm (23.9″) | 606.3mm (23.9″) |
| J - Reach | 399.8mm (15.7″) | 425.6mm (16.7″) | 442.9mm (17.4″) |
| K - Crank Length | 170mm (6.7″) | 170mm (6.7″) | 170mm (6.7″) |
| L - Wheel Size | 700C | 700C | 700C |
Detailed Specification
Full specification and detailed explanation of the Urban Cruise e-Bike construction and features.
Power System
Motor: DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm (OLD: 137.5mm/cassette/disc brake)
Battery: Samsung 21700/36V/9.8Ah/353Wh, internal down tube battery; 4-6h charging time
Additional Battery: Samsung 18650/36V/250Wh, water bottle battery (optional extra)
Riding Range: up to 60km (37mi) with main battery and up to 90km (56mi) with the optional water bottle battery
Display: Stem integrated display with Bluetooth (2”/TFT/36V); 3 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view
Torque Sensor: Yes
Frameset
Frame: 6061 aluminium (700C x M500mm / L 540mm / XL 580mm)
Fork: Aluminium 6061 T6, rigid fork, Old - 10mm x 100mm
Wheels
Tires: Schwalbe Road Cruiser KGuard, 42-622 green 50 EPI
Rims: 700C alloy double wall rim, ETRTO - 622 x 18.8, 36H x 13G
Front Hub: 36H x 13G, O.L.D – 100mm, CR-MO hollow axle, W/QR
Rear Hub: Hub motor
Spokes: 13G stainless black spokes, with 14mm brass nipples
Interactivity
Compatible Applications: Cikada Connect app
Drive Train

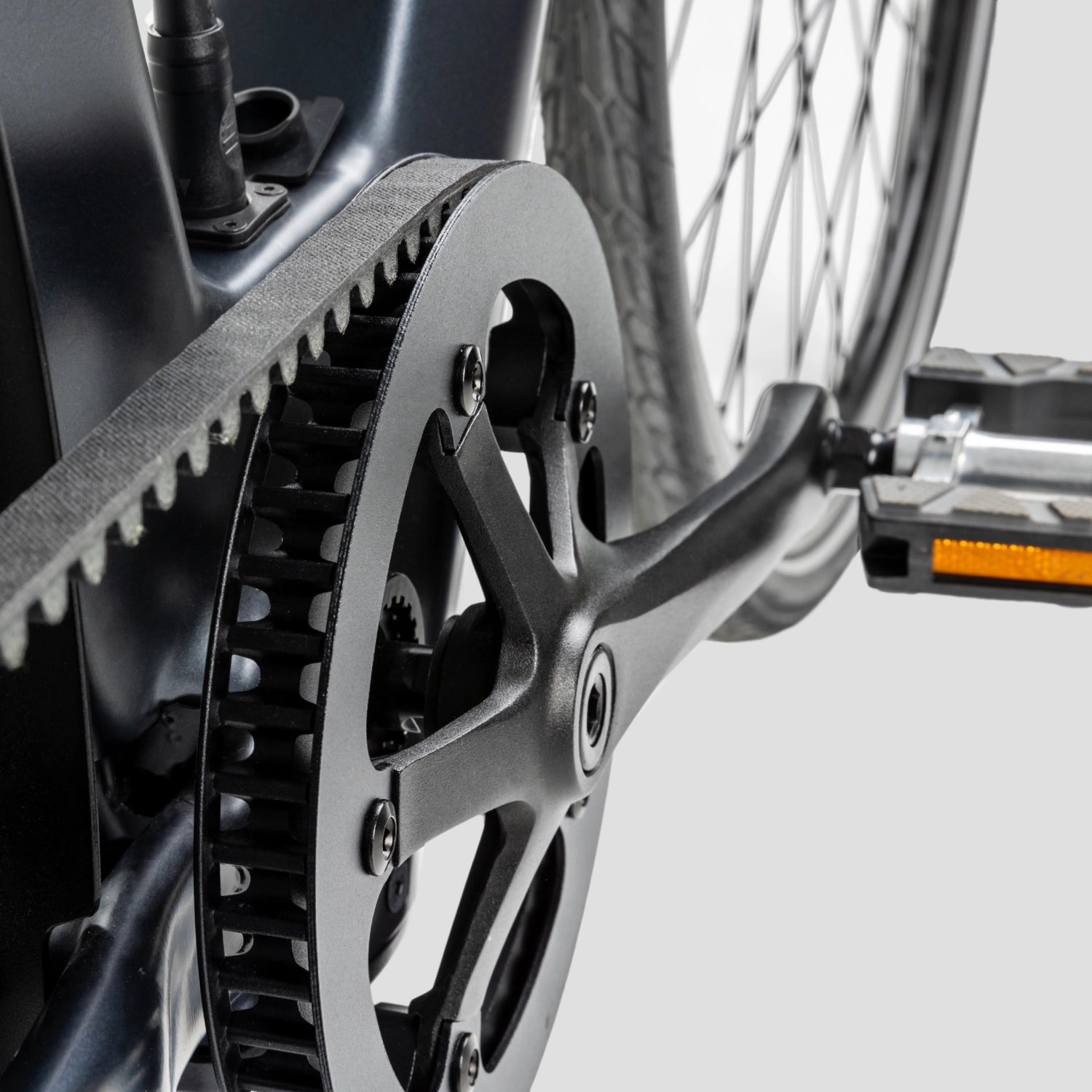

Crankset: Alloy crankset + chainring + spider 5-arm for single torque B.B, crank length – 170mm, 11M-52T
Cassette: Rear sprocket, cassette, single speed; CR-MOLY 11M-20T-9K
Chain: Dyaco belt drive

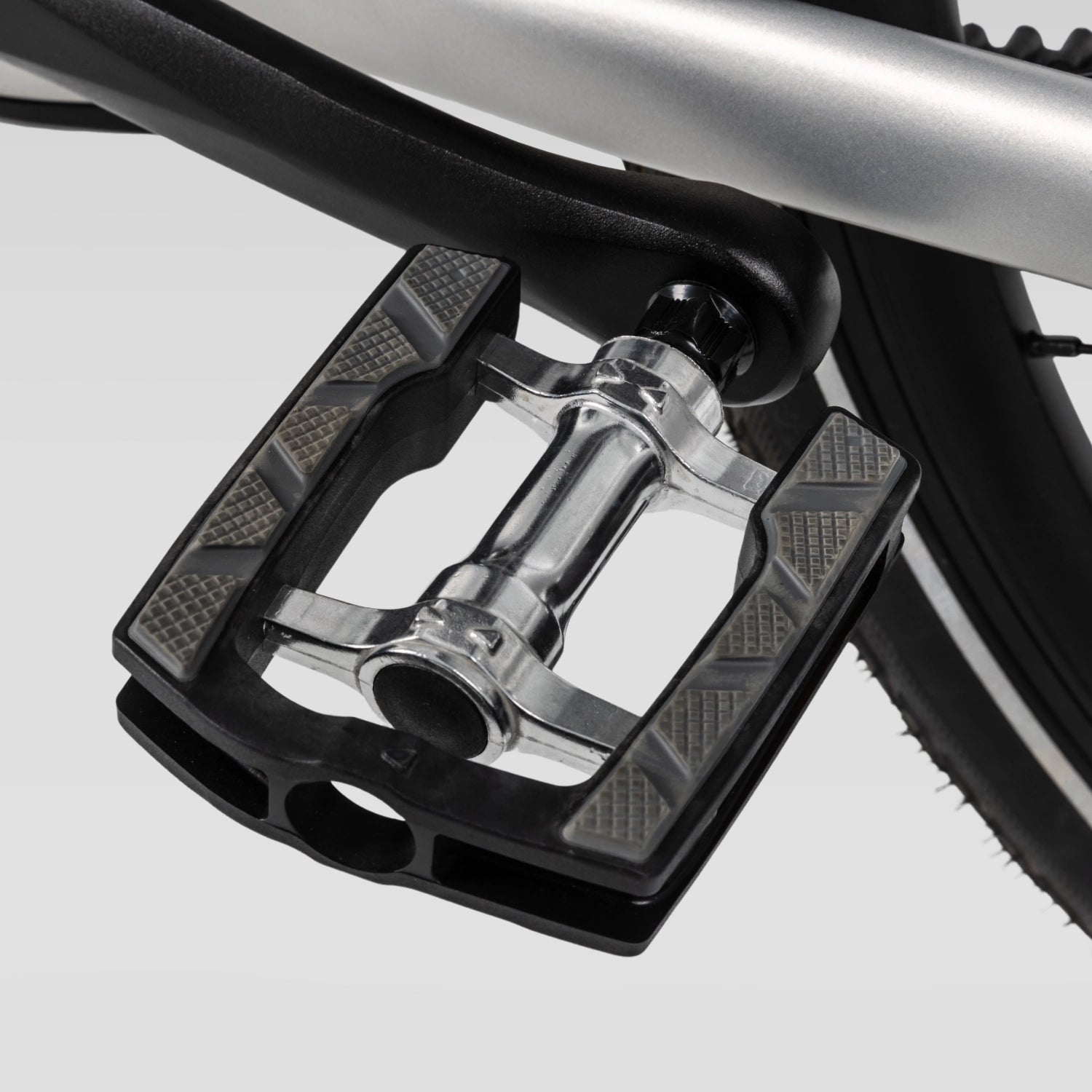

Pedals: Alloy body steel boron axle 9/16”, Size - 106mm x 82.3mm, with reflector
Components

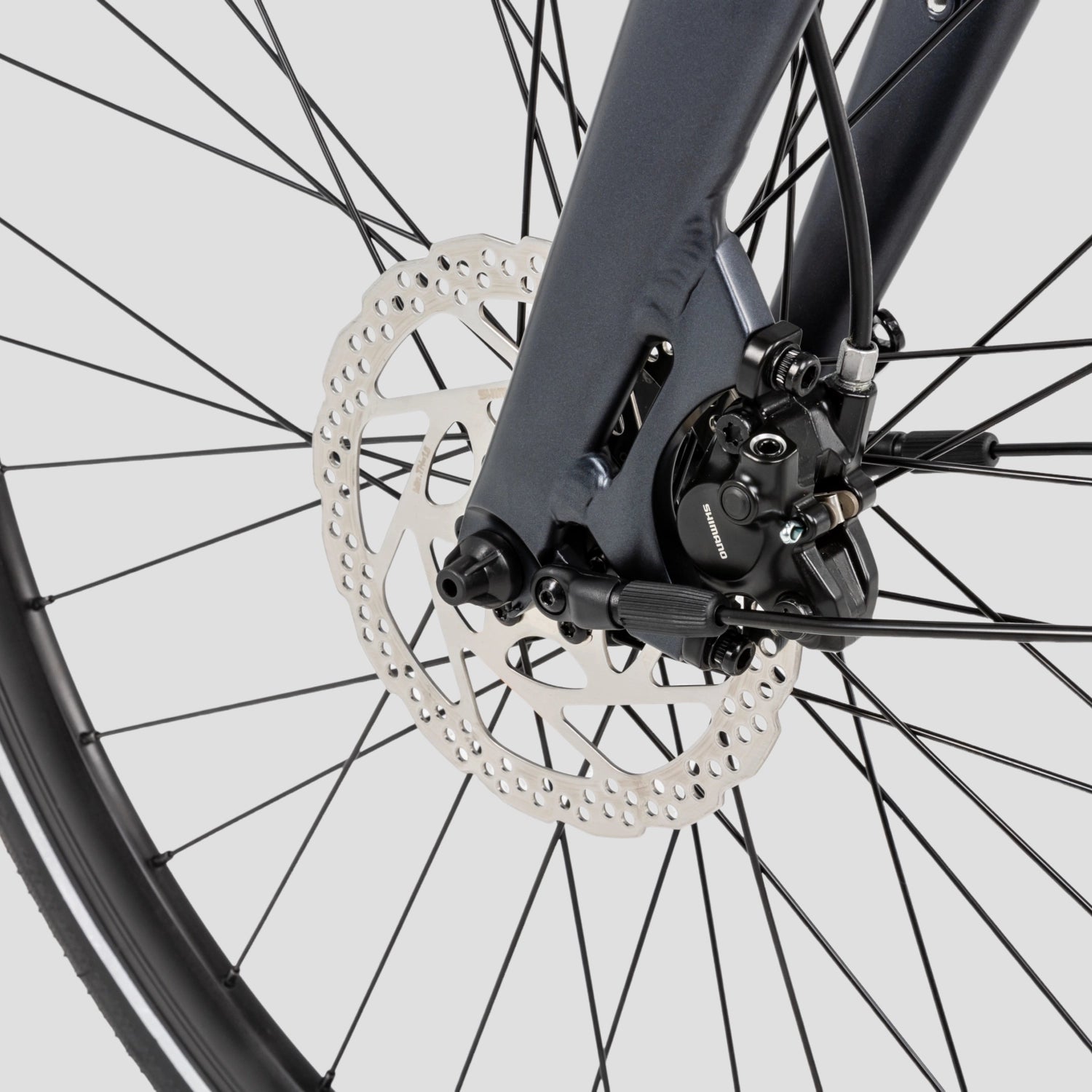

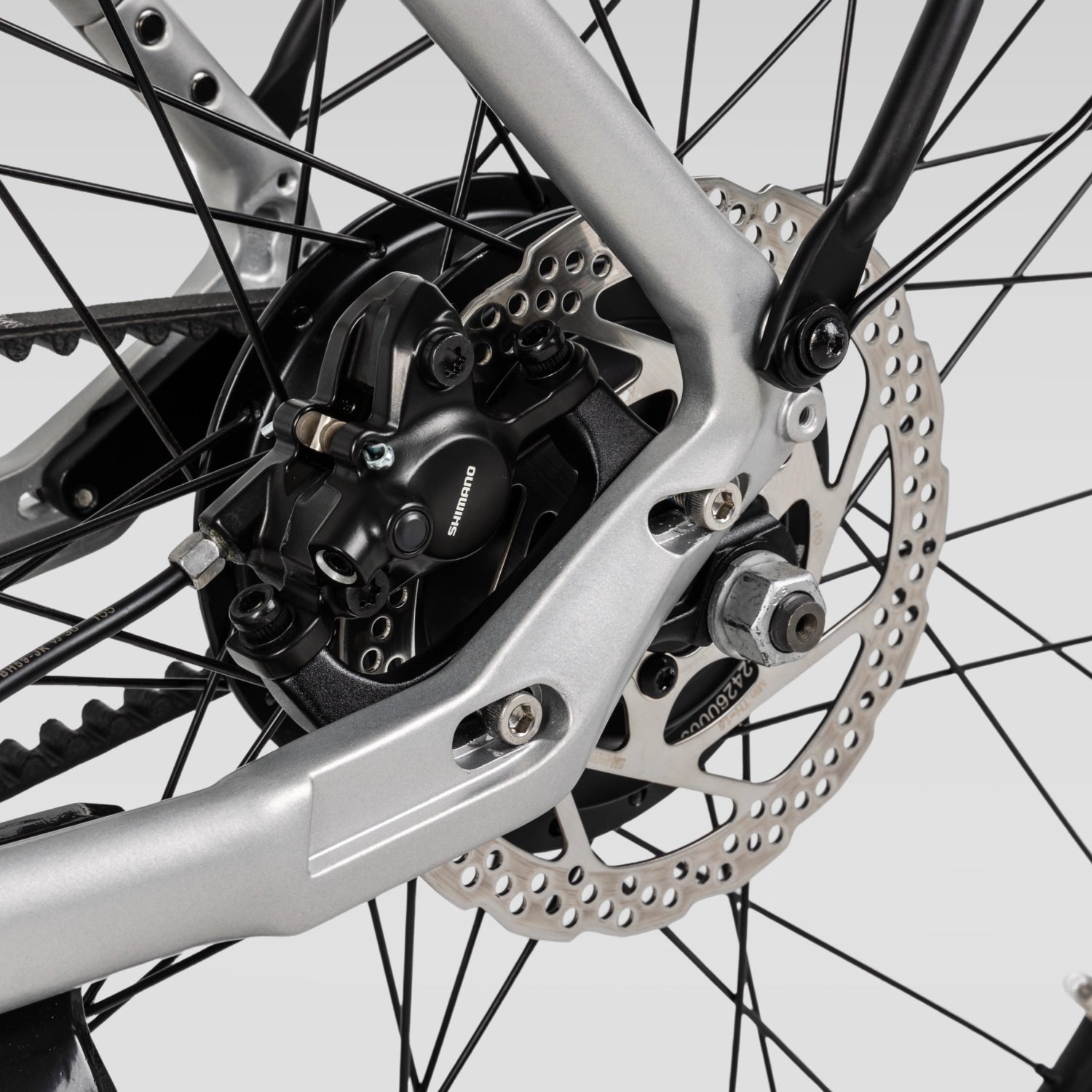

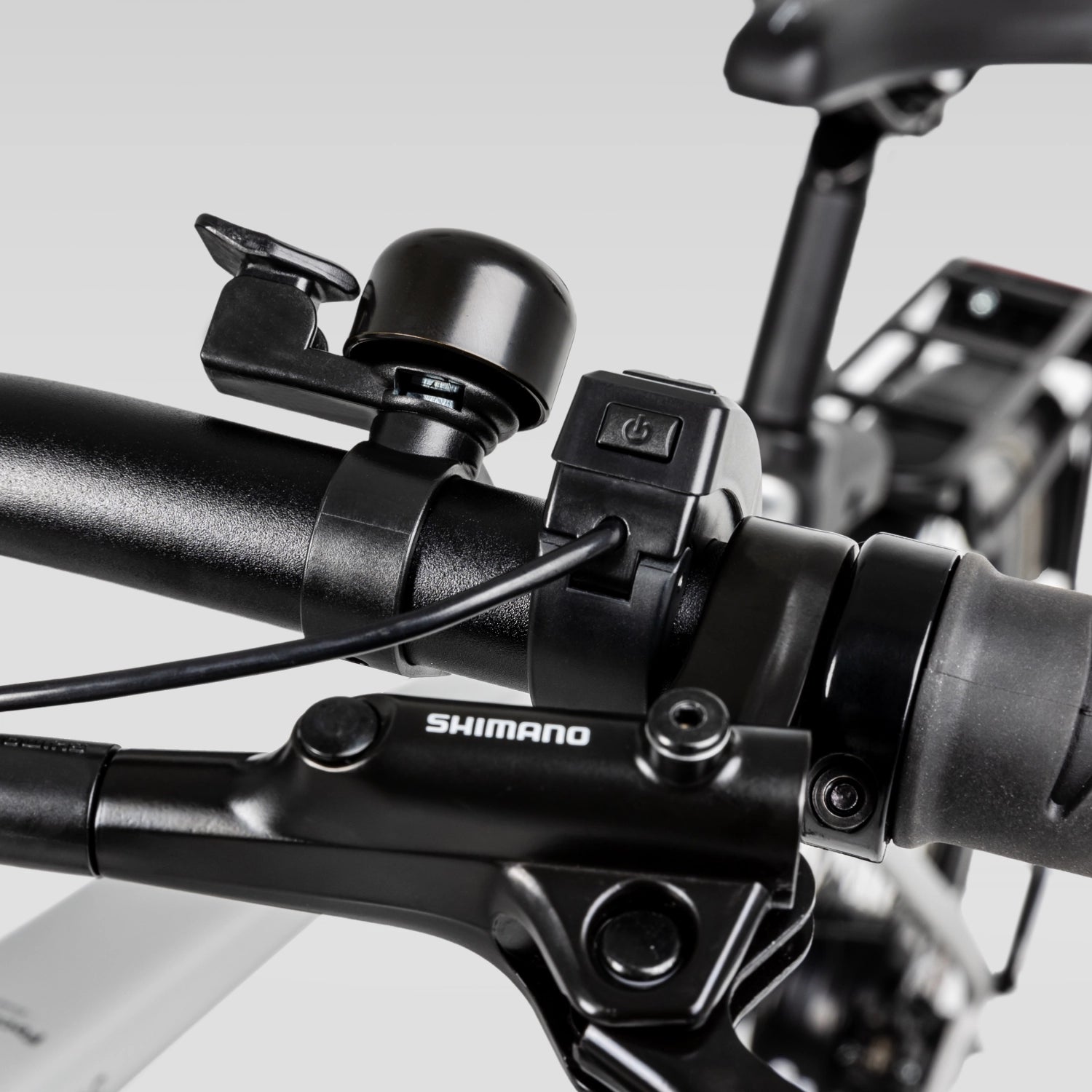

Brakes: Shimano hydraulic disc brakes, 160mm rotor, MT120
Handlebar: Alloy 6061 PG, Width - 630mm M/ 680mm L&XL, Barbore - 31.8mm, Backsweep - 15°
Stem: One-piece display stem (Zoom Stem), Barbore - Ø31.8mm, Extension - 100mm
Headset: Semi-integrated threadless 1-1/8” x 44/50x55/61x30

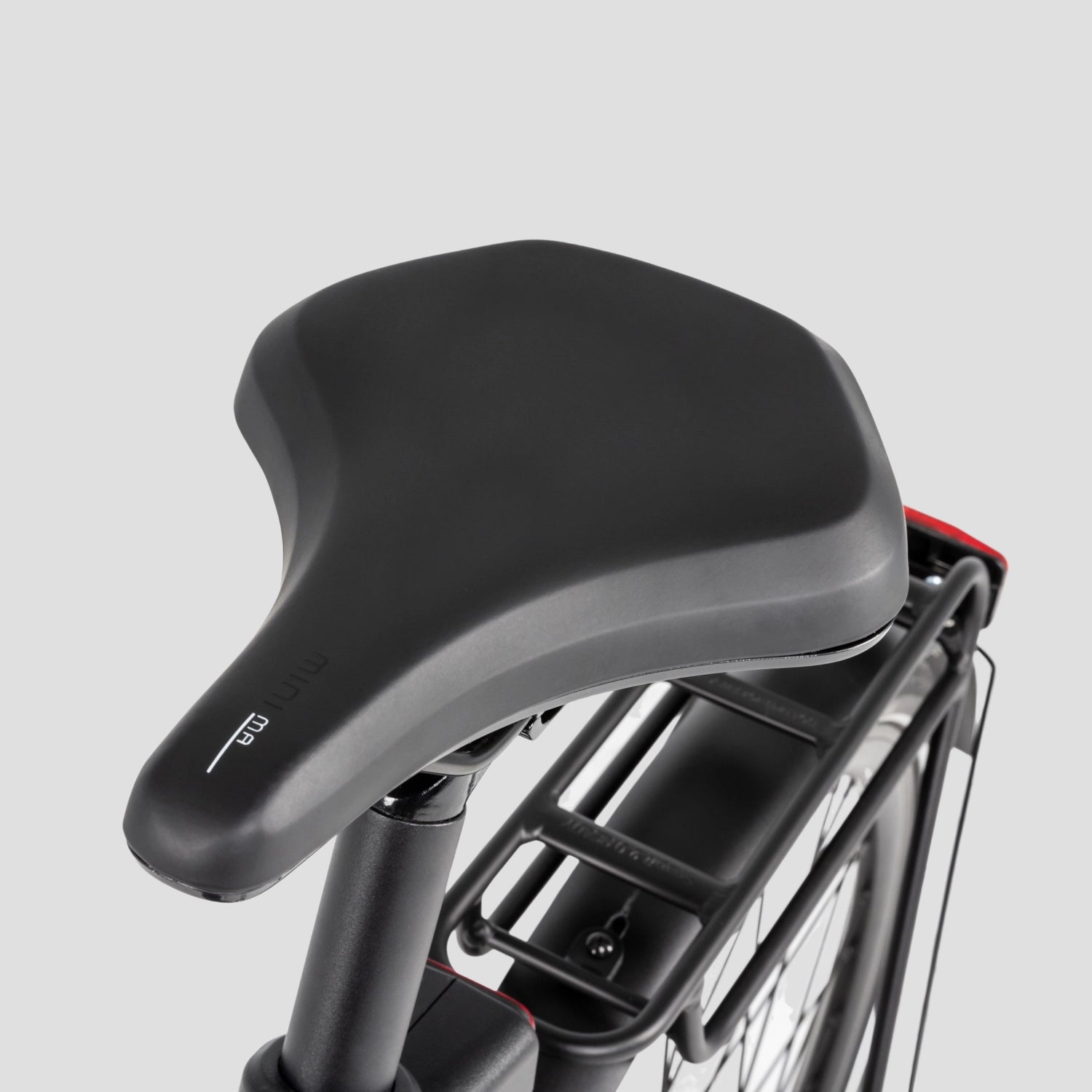

Saddle: Ergonomic saddle; Size - 264mm x 194mm, Material - Support PU foam, Base: PP, Leather: Black, seamless, Rail: Steel ED black with scale
Seatpost: Die-casting alloy, Diameter - Ø 31.6, Offset 16mm, Length - 300mm M&L/ 350mm XL
Grips: Hard plastic black/ VEXT, 133mm, with black plastic clamp, close end
Bottom Bracket: Torque sensor single, BB 73/ JIS
Additional Information
Product Weight: 21kg (46lbs)
Maximum User Weight: 120kg (264.5lbs)
Size Options
M: 20” (50cm) for riders between 5’3” - 5’9” (160cm - 175cm) in height
L: 21” (54cm) for riders between 5’7” - 6’1” (170cm - 185cm) in height
XL: 23" (58cm) for riders between 5’11” - 6’5” (180cm - 195cm) in height
Accessories
Head light
Tail light
Kickstand
Fender
Bell
