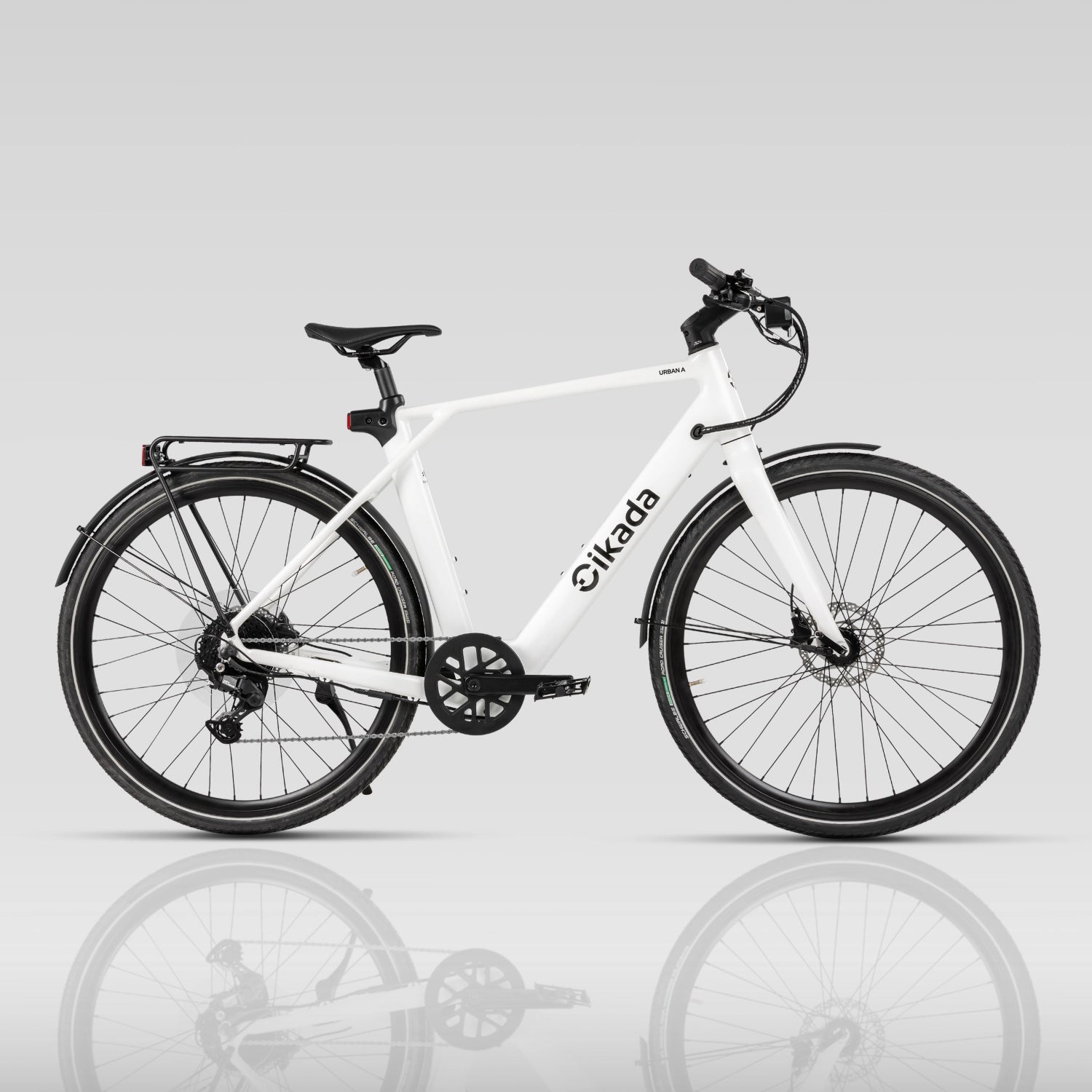

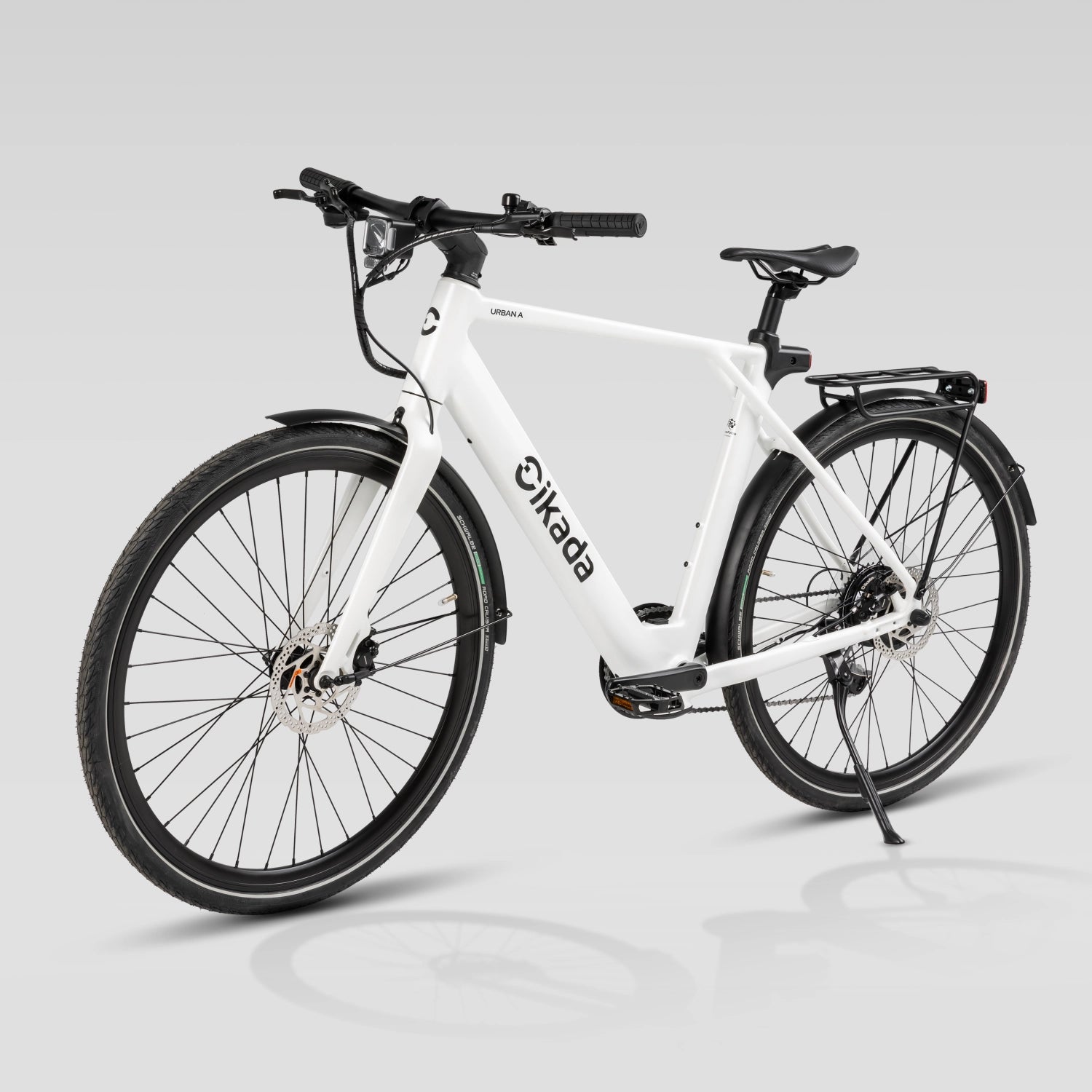

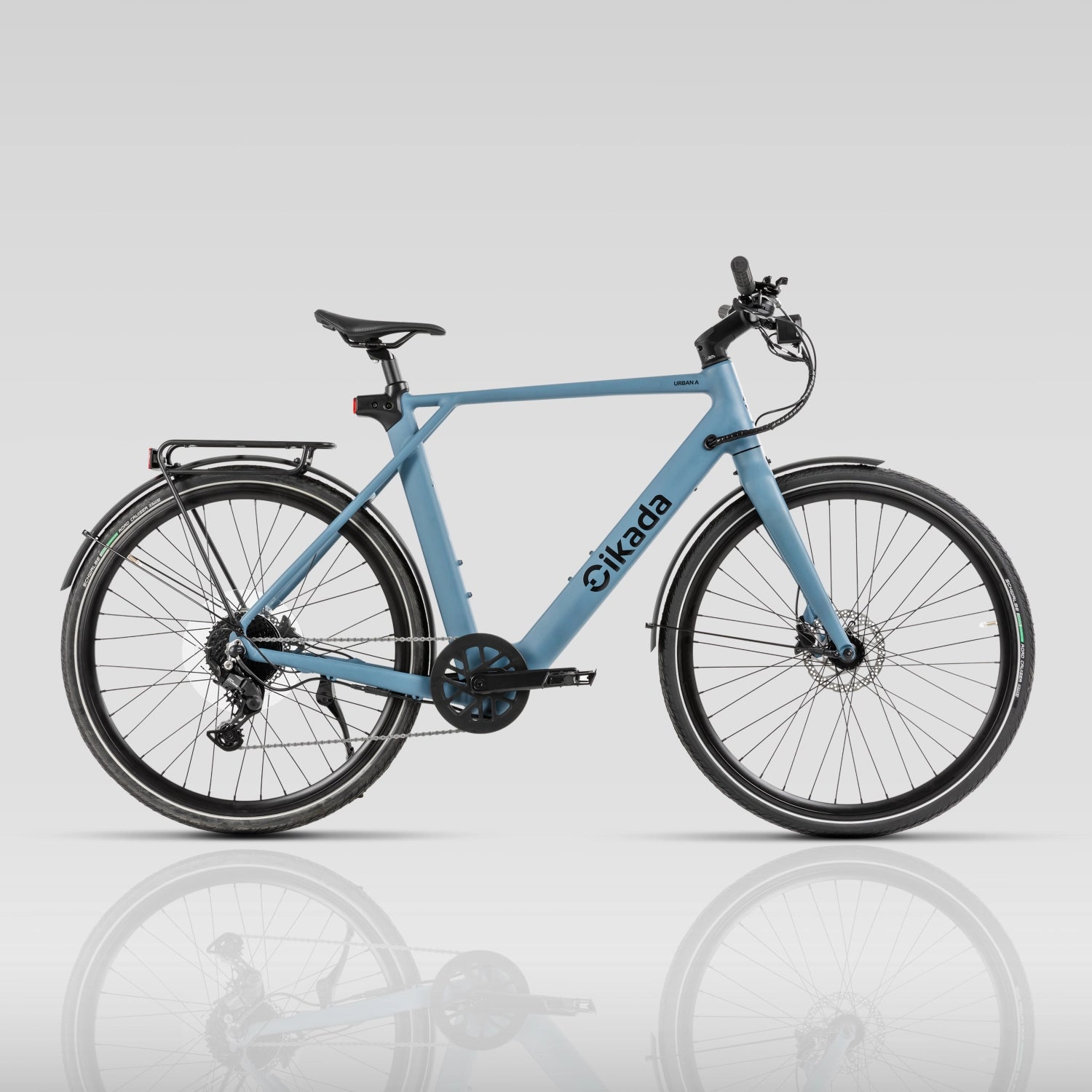

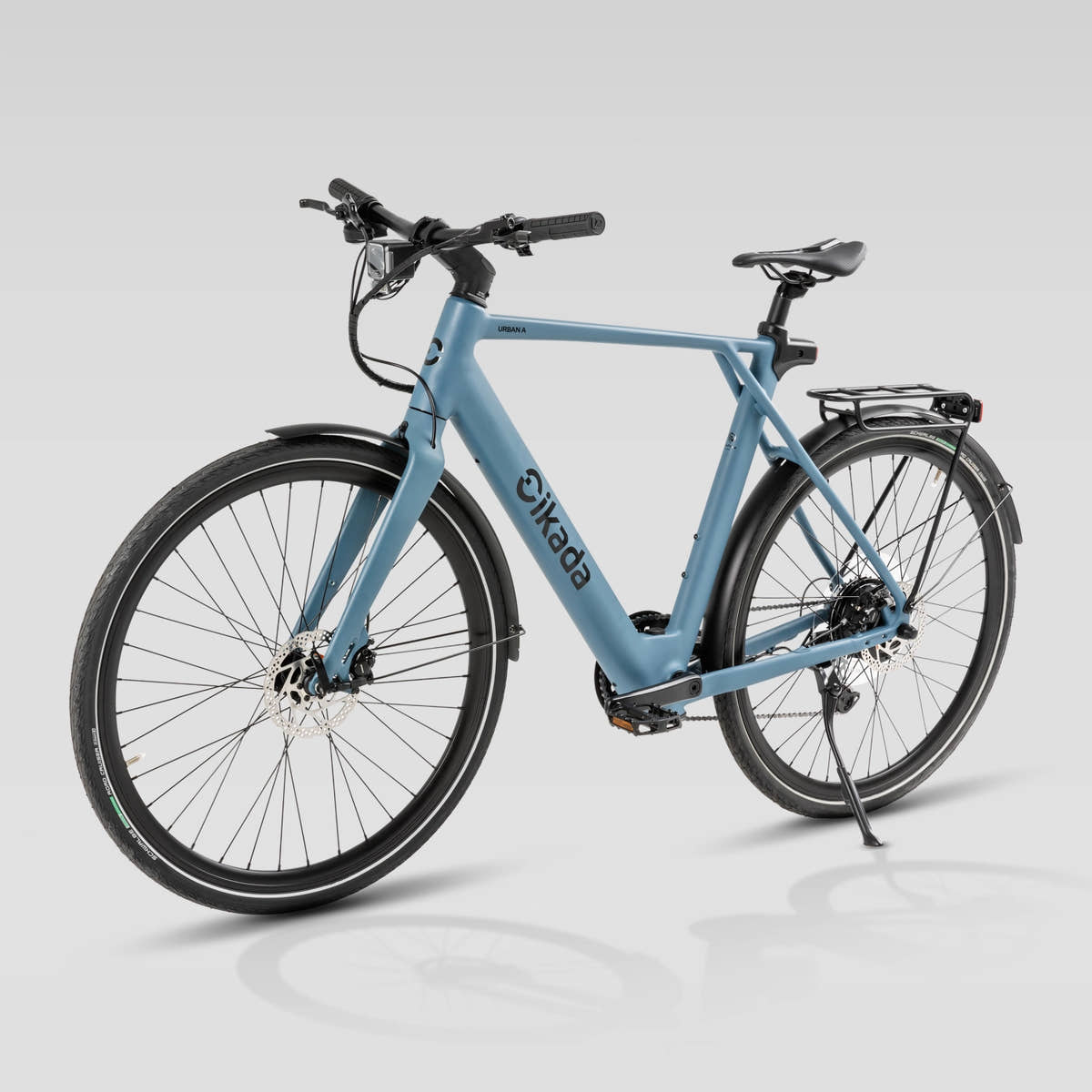

Urban Adventure
Designed for urban-optimized riding with a sporty feel, the Urban A suits riders seeking a dynamic e-Bike. Its electric assistance enhances performance on city streets and varied urban routes, adjusted by a sportier seat tube angle and straight handlebar.
Featuring a sturdy frame, a sport-style saddle, a lower stem, and a straight handlebar, it offers a sport riding geometry for improved posture and comfort. A Shimano 9-speed Cues derailleur provides a range of gears for diverse urban conditions, while a dual-battery-ready system with an optional water bottle battery extends range without frequent recharging.
It includes a 250W rear hub motor and a down tube-integrated battery with Samsung 21700 cells, 353Wh capacity, offering up to 60km (37mi) assisted range and up to 90km (56mi) with an optional 250Wh battery.
With 40Nm torque, the Urban A supports nimble city navigation with a sporty edge. The stem-integrated FocusRide GoDash TFT display provides performance data, while the Cikada Connect app via Bluetooth allows ride customization, analysis, and management for a smart, eco-friendly experience.
Cikada Urban A e-Bike Highlights
- Dual-battery-ready systemfor extended riding distance
- Maximum Range:60km (37mi)(up to90km (56mi)with an optional water bottle battery)
- Maximum Assisted Speed: 25kph (15.5mph)
- Sleek and agile frame design
- Premium Samsung 353Wh in-tube battery
- Integrated Shimano Cues technology for smooth shifting, durability, and ultimate versatility for every ride
- Stem-integrated TFT display with Bluetooth for seamless connection with the Cikada app and smart e-Bike control
- 3 pedal assist modes
- Ergonomically designed saddle, Schwalbe Road Cruiser K-Guard tires, lower stem, and straight handlebar for a sport riding posture
- Shimano 9-speed derailleur to tackle various surfaces and riding conditions
- 40Nm of torque for moderate hill support
- Ideal for commuting and exploring urban landscapes with ease and elegance
- Adventure-ready e-Bike that handles a variety of terrains, from city streets to rugged trails and countryside paths
Choose options
What makes the Urban Adventure e-Bike so special.
Highlighted Features
Motor
DynaForce 250W rear hub motor; 40Nm
Tires
Schwalbe Road Cruiser KGuard, 700C wheels
Battery
Samsung 21700/36V/9.8Ah/353Wh
Maximum Range
60km (37mi) with main battery & up to 90km (56mi) with the optional water bottle battery
Torque Sensor
Mounted on bottom
bracket

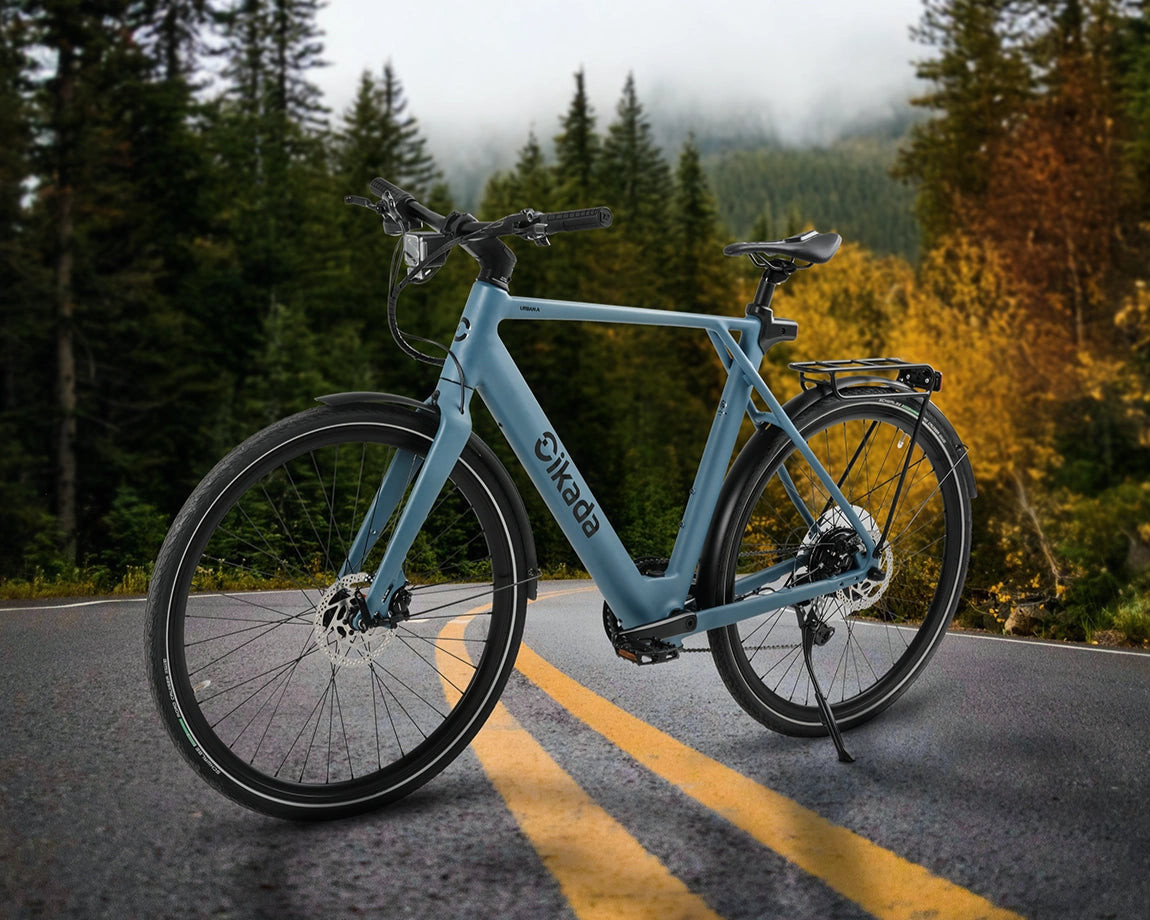

All-Terrain Versatility with Urban A
Varied Adventures In & Out Of Town
Enhanced Adventure Capabilities

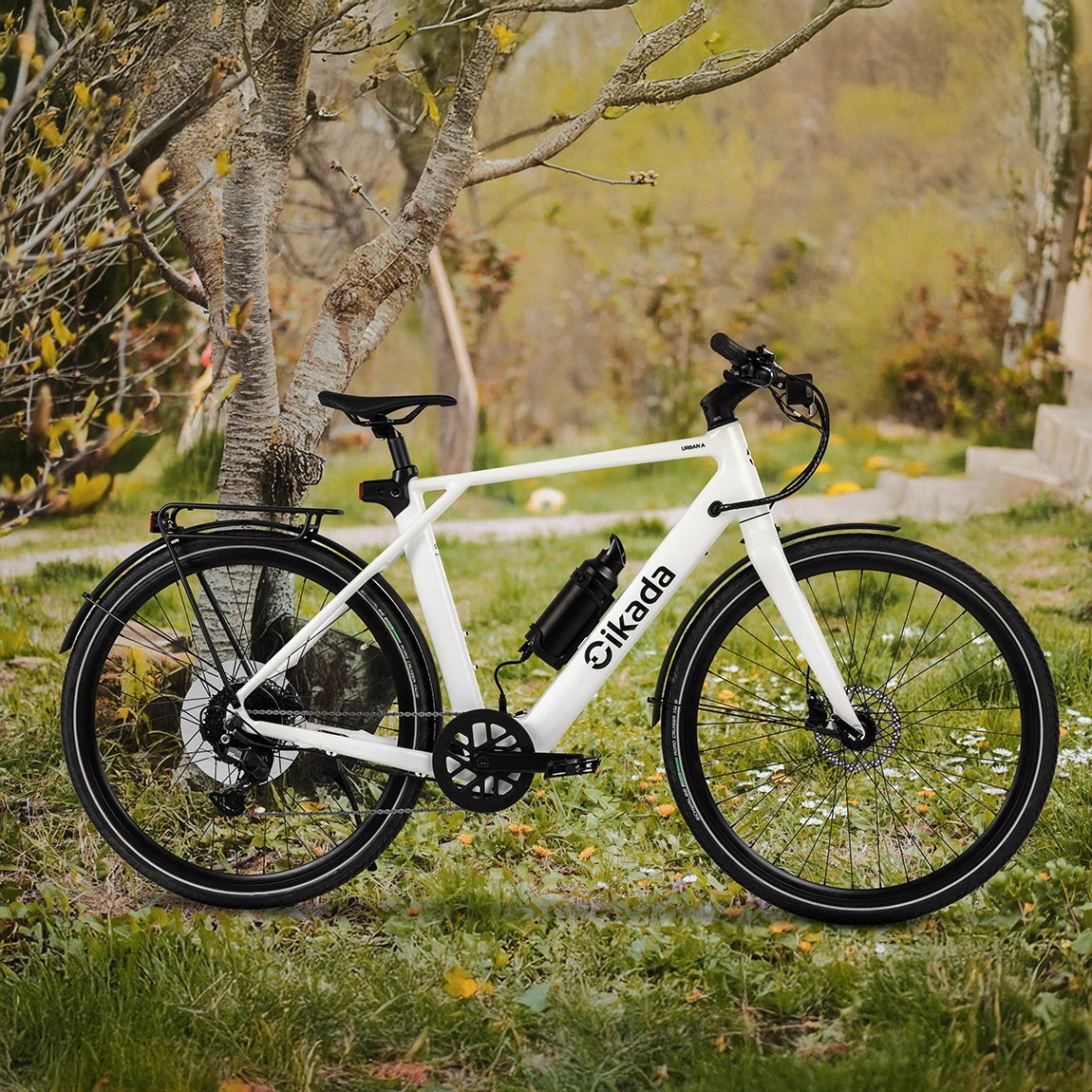

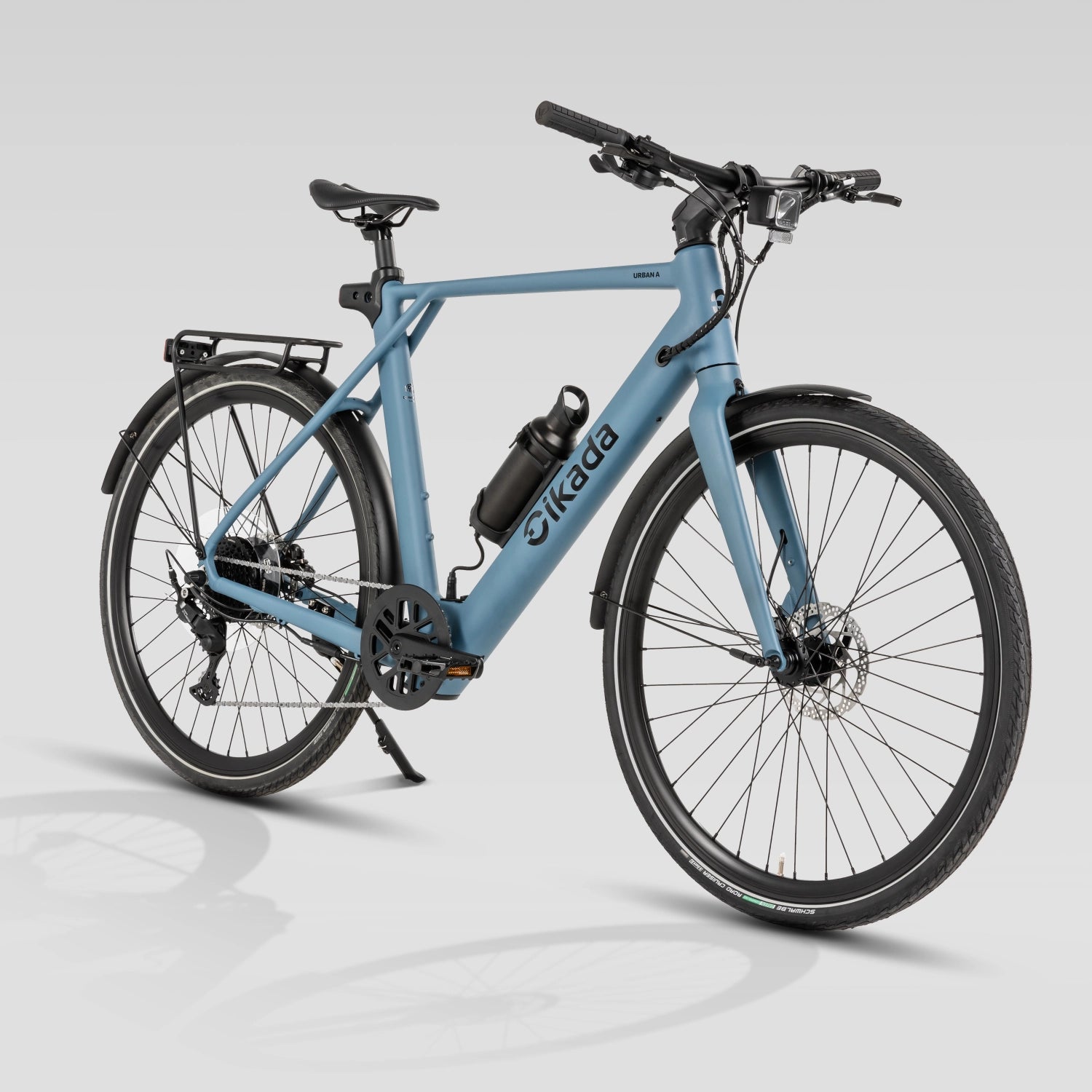

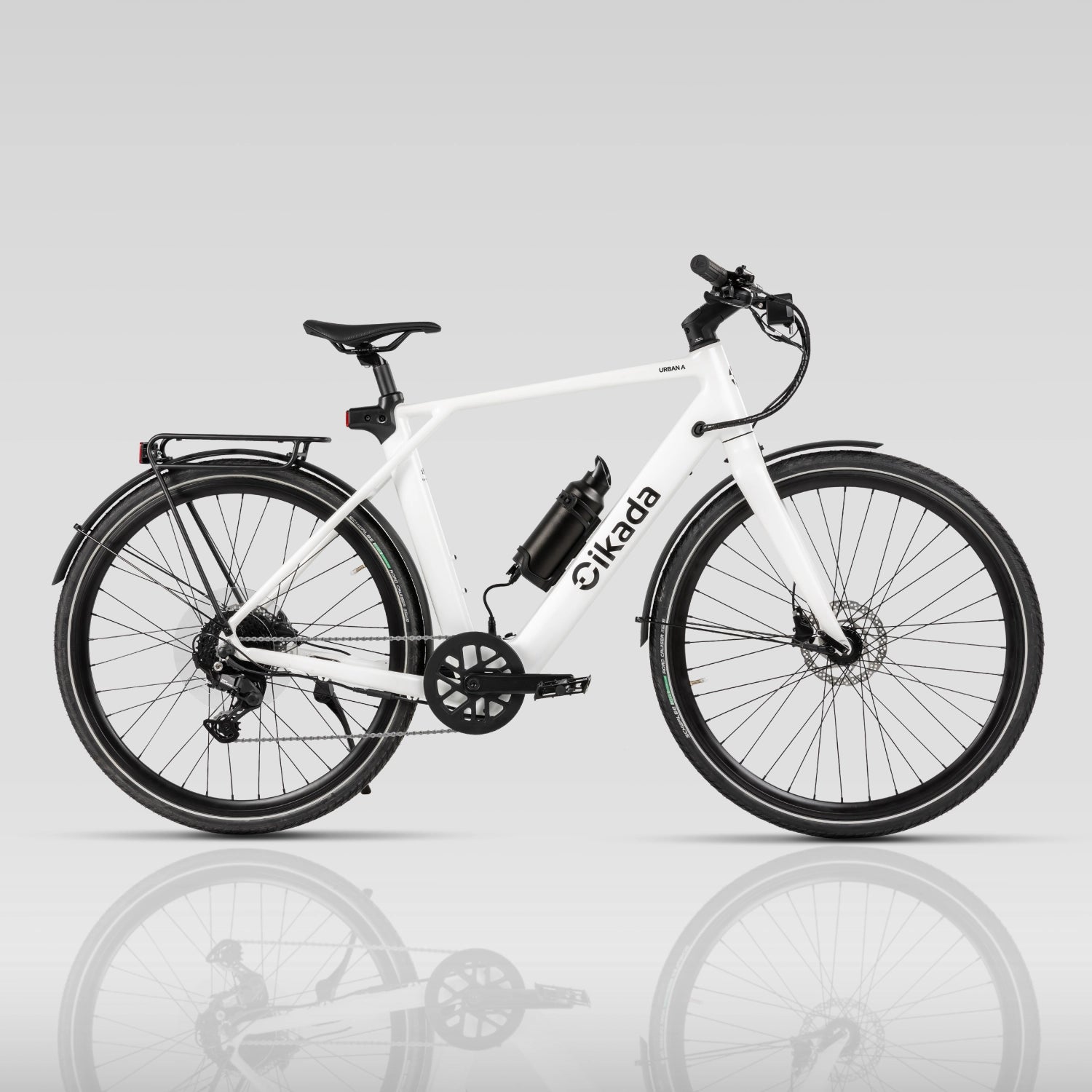

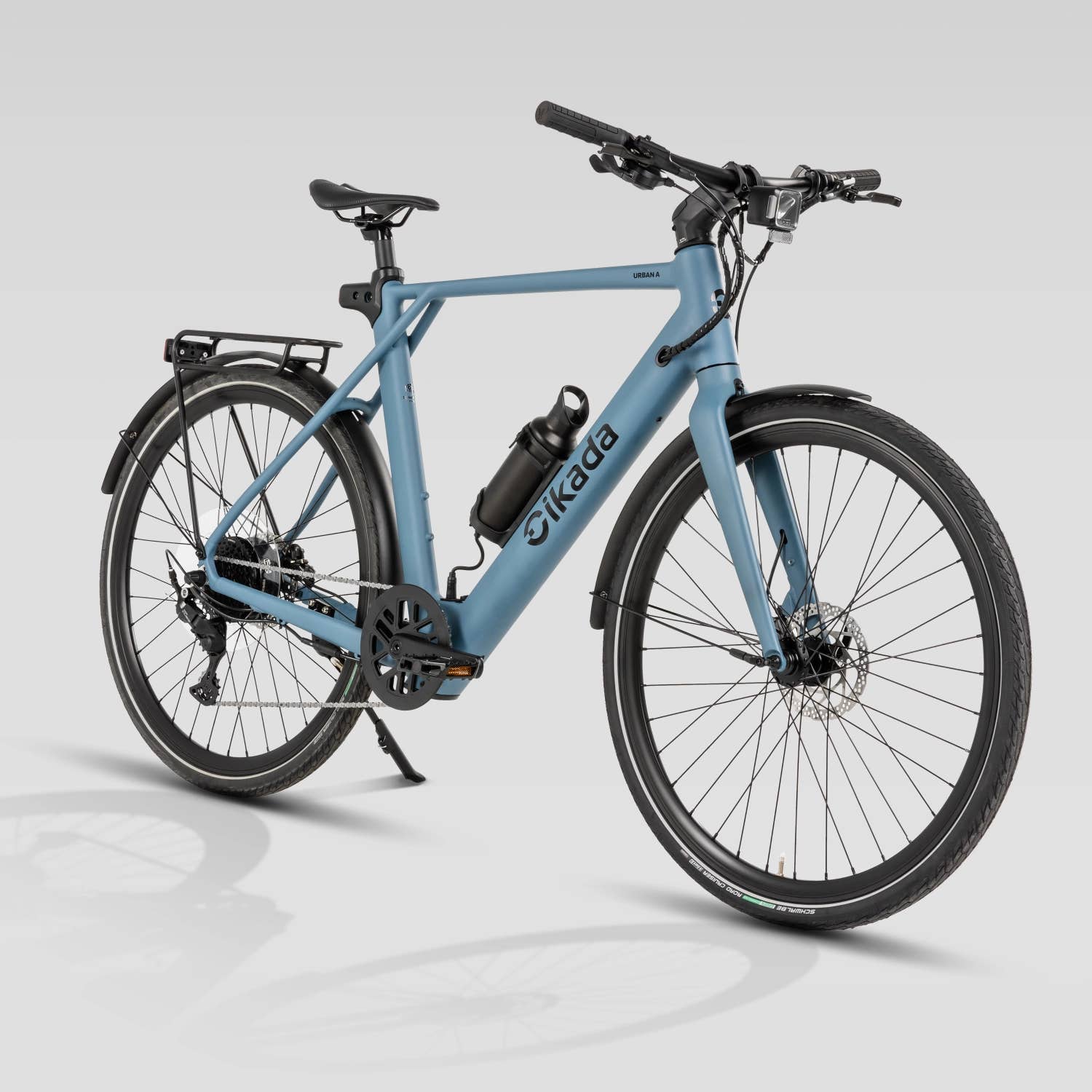

Featuring a dual-battery-ready system, the Urban A suits long commutes and touring. With a down tube-integrated battery with Samsung 21700 cells, 353Wh capacity, and an optional 250Wh water bottle battery, you can extend your riding distance for moderate inclines, a smooth ride, and longer exploration without power concerns. The dual-battery setup increases the assisted range from 60km (37mi) to up to 90km (56mi), offering flexibility to adjust your ride for daily needs.

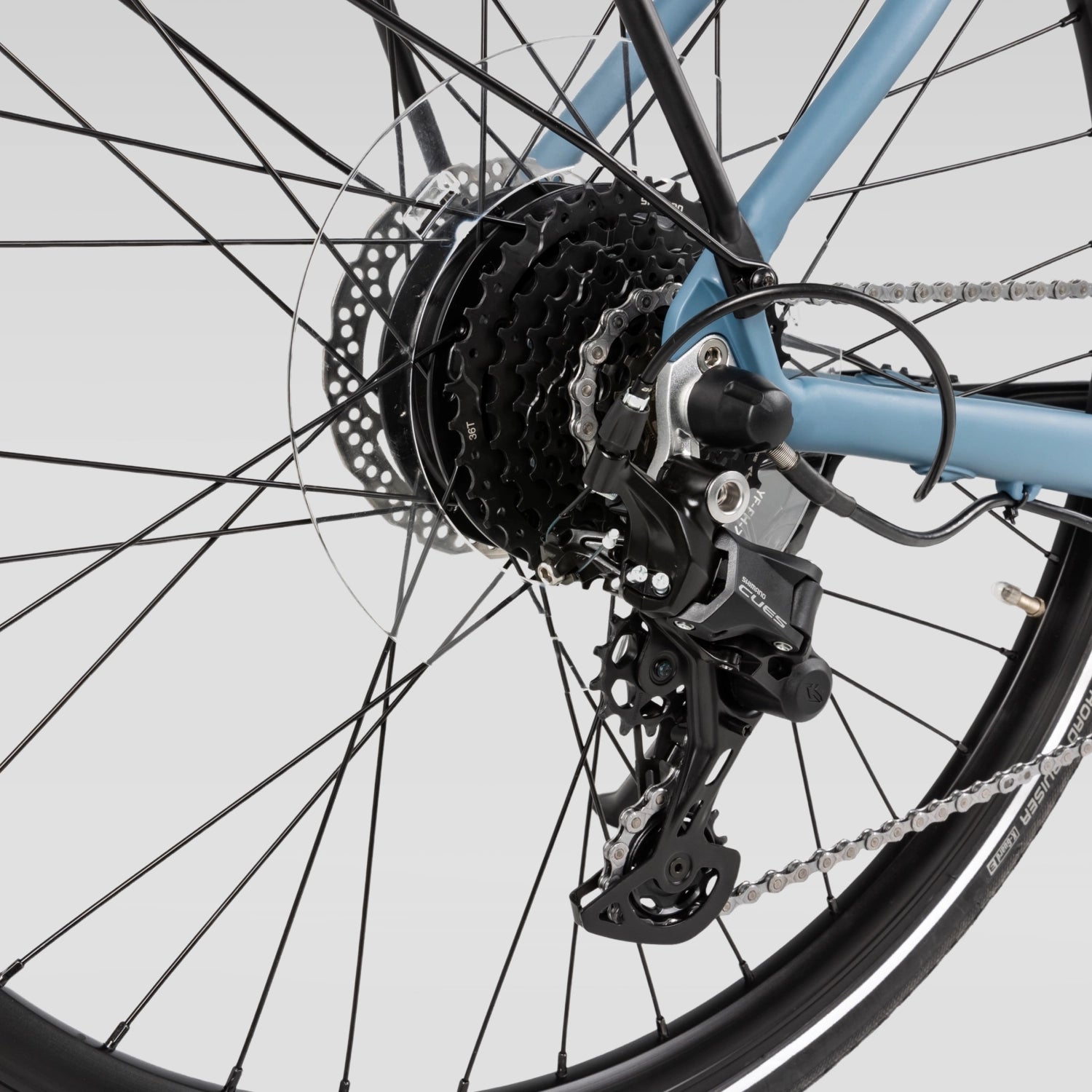

Multi-Speed System
Enjoy effortless climbing, smooth acceleration, and adaptability to various terrains thanks to the Shimano 9-speed derailleur, allowing you to fine-tune your cadence, easily tackle steep hills, and enhance your riding comfort and control. The integrated Shimano Cues technology offers smooth shifting, durability, and ultimate versatility for every ride. Whether youāre riding on flat city streets, exploring gravel paths, or conquering steep inclines, the multi-speed system lets you adjust effortlessly to changing conditions.

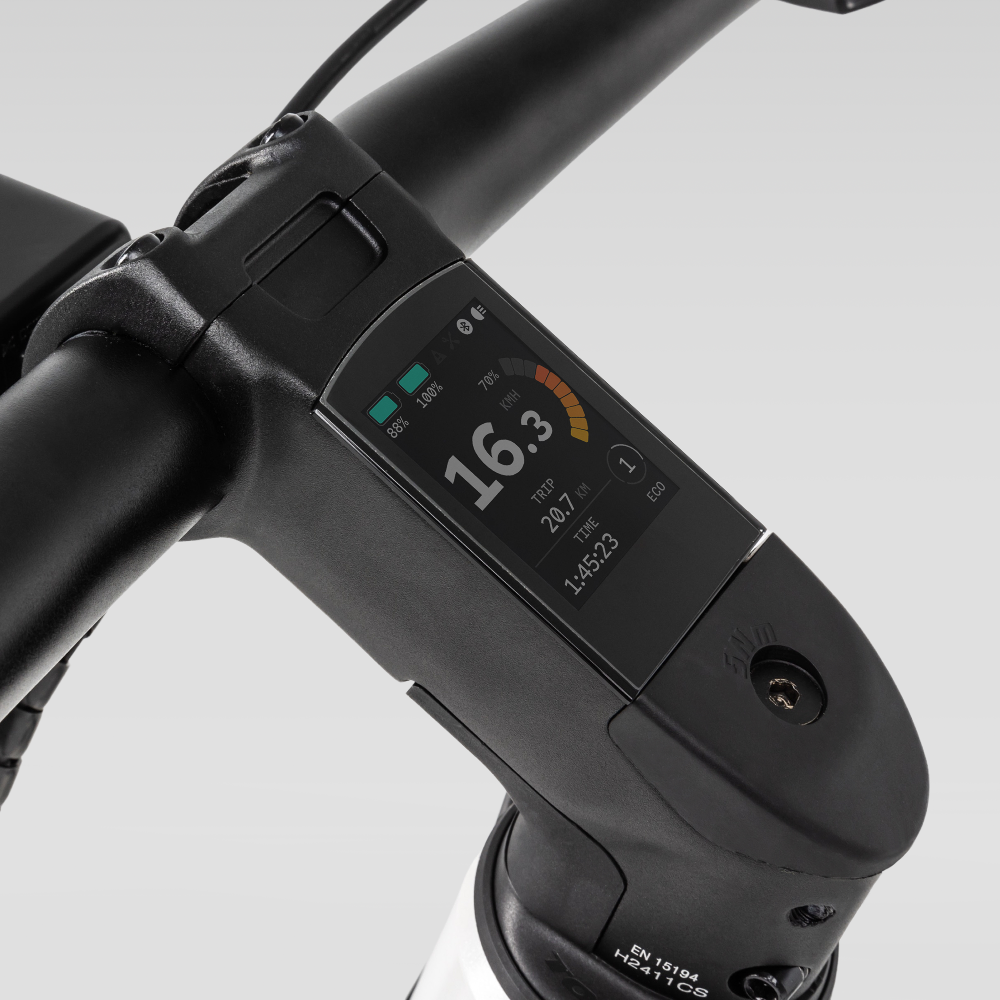

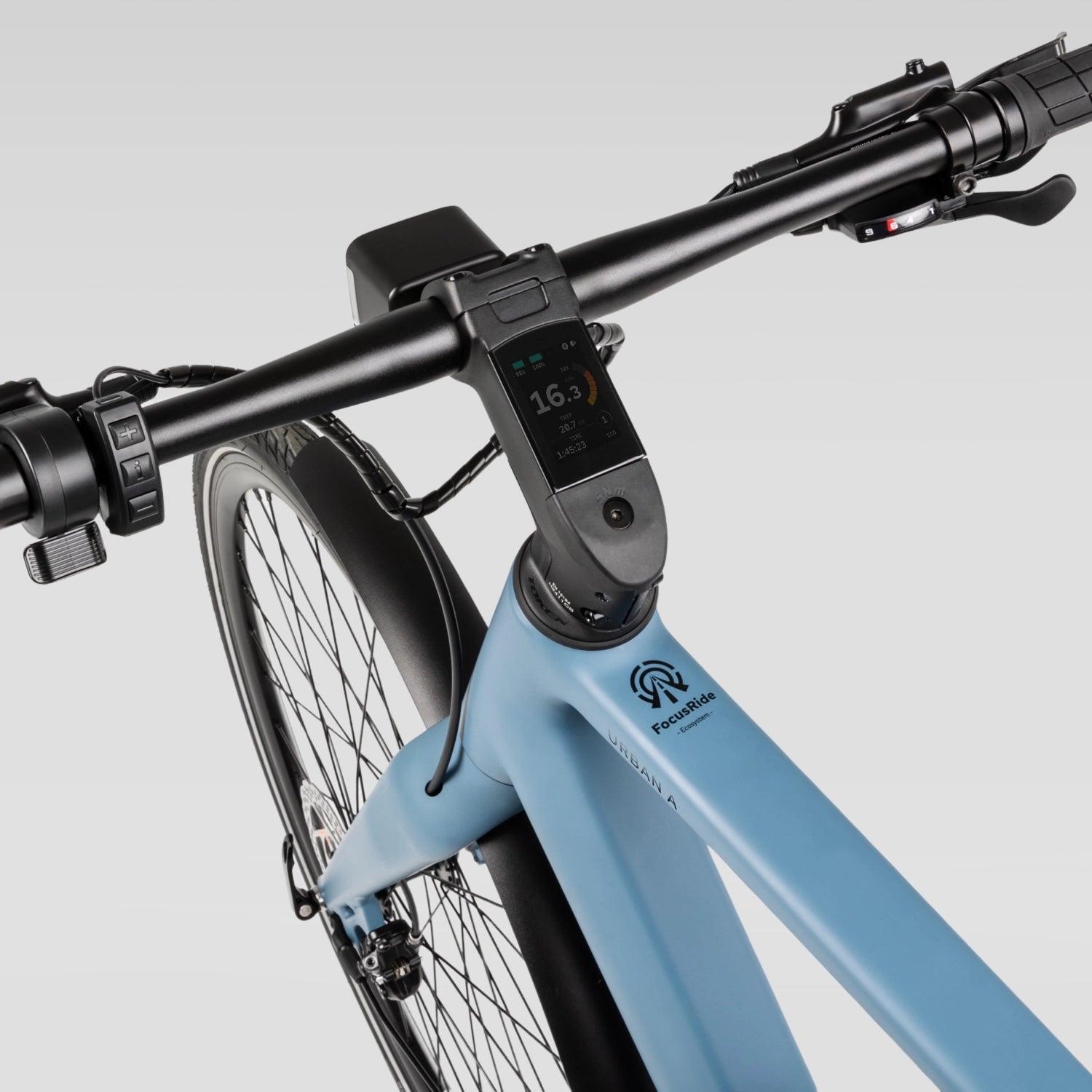

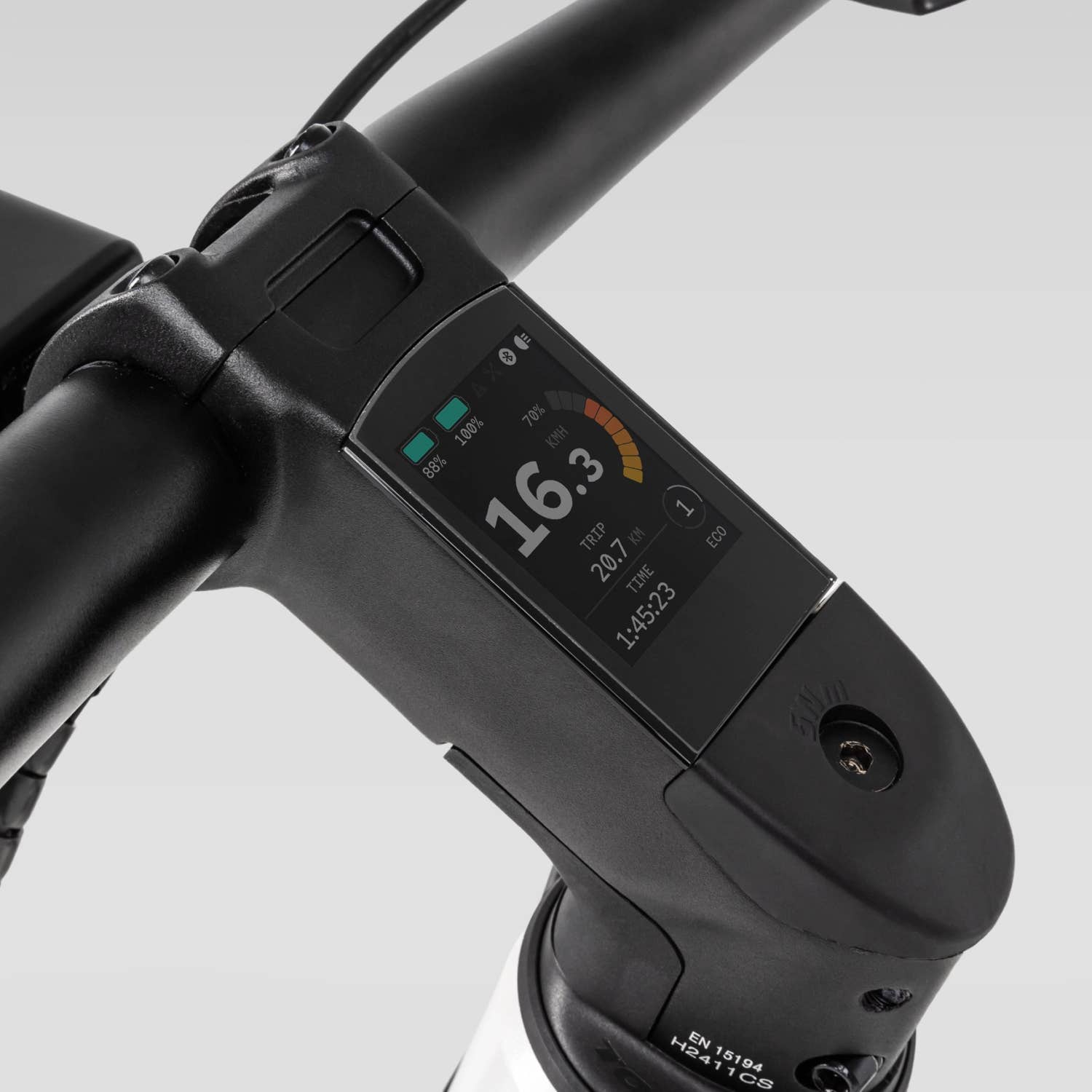

Stem-Integrated Smart Display

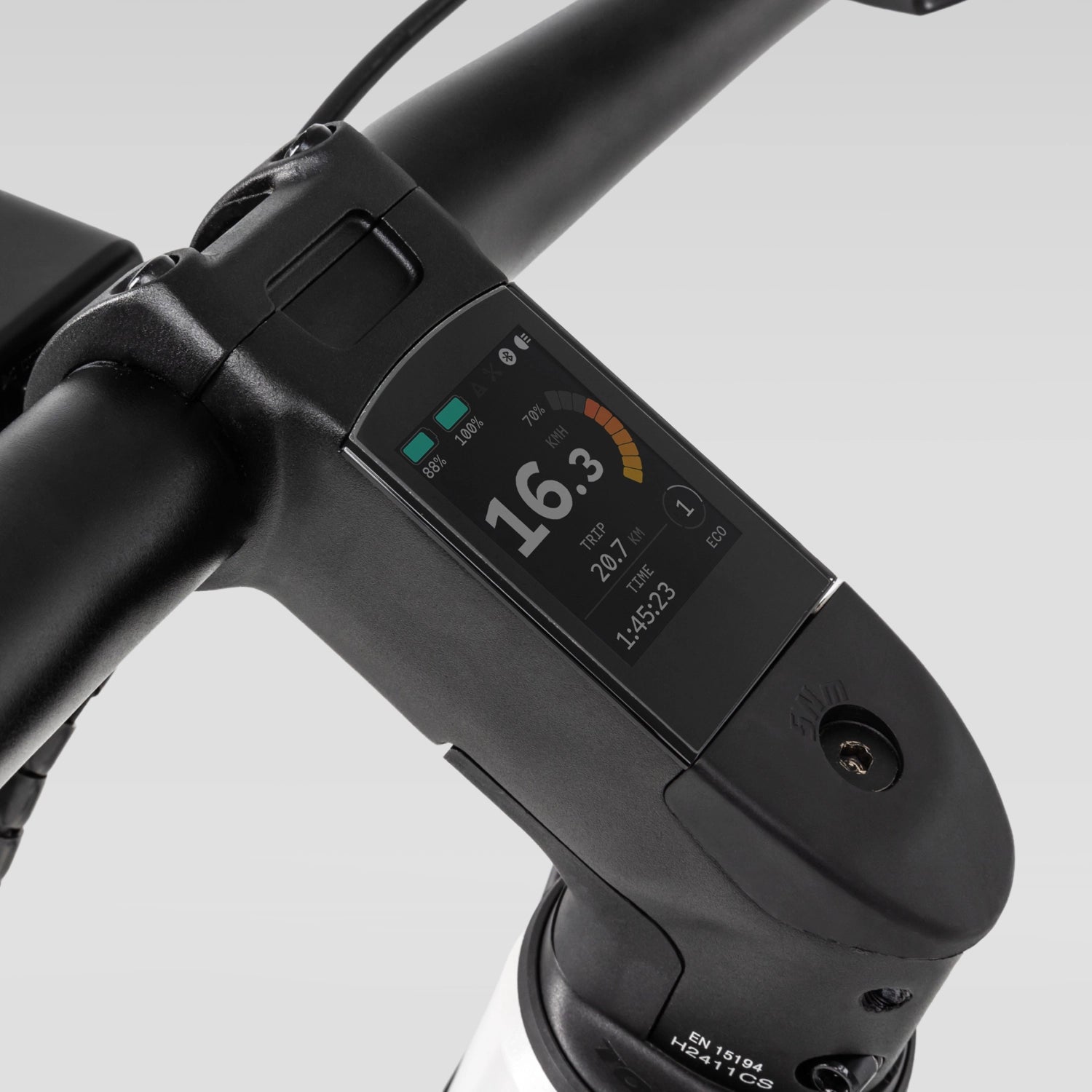

At the heart of a sleek, minimalist FocusRide console sits a clear 2" TFT display that provides an optimal viewing angle for a distraction-free ride and puts all essential performance metrics right at your fingertips. Featuring Bluetooth connectivity, it serves as a central hub for real-time data and complete ride control, enhancing your overall e-biking experience. Navigate city streets effortlessly with its intuitive interface and monitor speed, battery life, and assist level at a quick glance without shifting focus. Seamlessly sync the display with the Cikada Connect app to customize and analyze your ride, track vital stats, and record unforgettable trips, all while conveniently managing every function of your e-Bike.
Technology

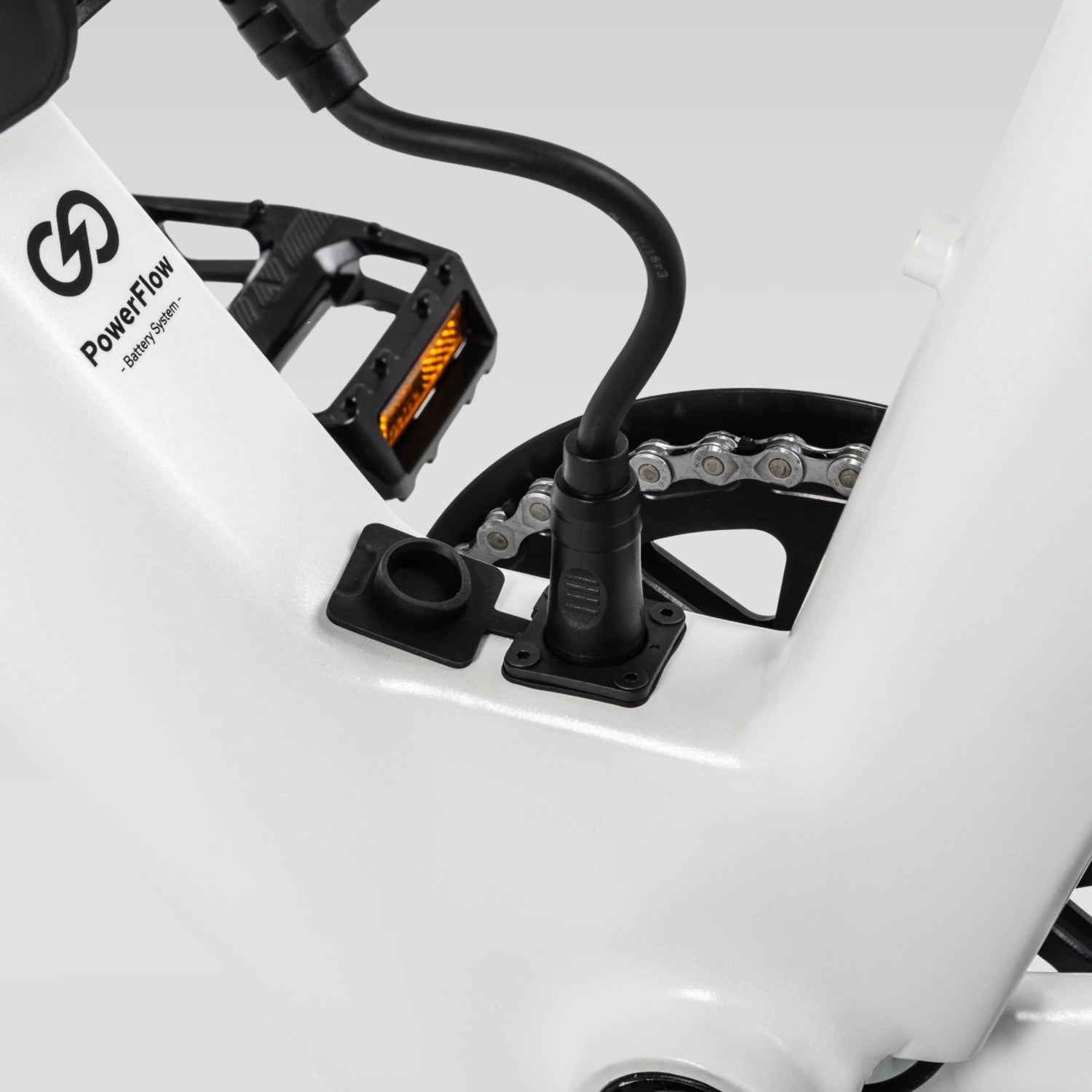

For a seamless, well-rounded, and adventurous e-biking experience, the Urban A brings together cutting-edge technologies that work in perfect harmony. Powered by DynaForce, an advanced multi-sensor technology, and a highly responsive 250W rear hub motor, the Urban A delivers a natural riding feel and optimized power output, ensuring smooth performance with 40Nm of torque across all riding styles. The stem-integrated FocusRide display keeps vital stats easily accessible and ensures a perfect viewing angle, so you can stay focused on the road ahead. Incorporating PowerFlow battery technology and a dual-battery-ready system, the Urban A provides consistent power across all terrains, extending your journey with ease and reliability.

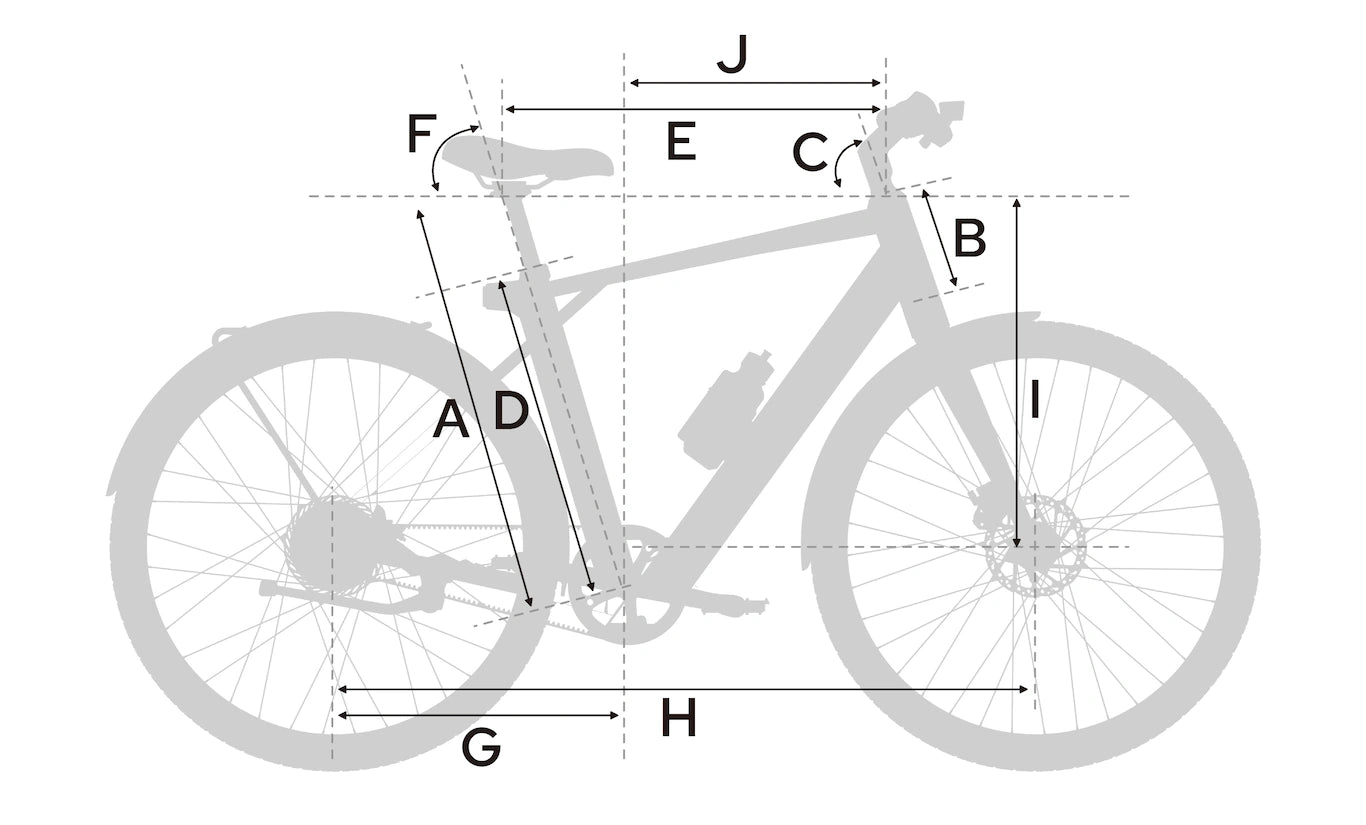

Urban Adventure e-Bike Geometry
Urban A has been designed with ergonomics and sleek aesthetics in mind to seamlessly blend into your way of living.
| Part | Medium | Large | Extra Large |
|---|---|---|---|
| A - Seat Height | Min: 610mm (24ā³), Max: 750mm (29.5ā³) | Min: 655mm (25.7ā³), Max: 805mm (31.6ā³) | Min: 685mm (27ā³), Max: 880mm (34.6ā³) |
| B - Head Tube Length | 175mm (6.8ā³) | 175mm (6.8ā³) | 175mm (6.8ā³) |
| C - Head Tube Angle | 71Ā° | 71Ā° | 71Ā° |
| D - Seat Tube Length | 500mm (19.7ā³) | 540mm (21.2ā³) | 580mm (22.8ā³) |
| E - Top Tube Length | 579.4mm (22.8ā³) | 605mm (23.8ā³) | 623.5mm (24.5ā³) |
| F - Seat Tube Angle | 73.5Ā° | 73.5Ā° | 73.5Ā° |
| G - Chainstay Length | 458.5mm (18ā³) | 458.5mm (18ā³) | 458.5mm (18ā³) |
| H - Wheel Base | 1095mm (43ā³) | 1121mm (44ā³) | 1140mm (45ā³) |
| I - Stack | 606.3mm (23.9ā³) | 606.3mm (23.9ā³) | 606.3mm (23.9ā³) |
| J - Reach | 399.8mm (15.7ā³) | 425.6mm (16.7ā³) | 442.9mm (17.4ā³) |
| K - Crank Length | 170mm (6.7ā³) | 170mm (6.7ā³) | 170mm (6.7ā³) |
| L - Wheel Size | 700C | 700C | 700C |
Detailed Specification
Full specification and detailed explanation of the Urban Adventure e-Bike construction and features.
Power System
Motor: DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm (OLD: 137.5mm/cassette/disc brake)
Battery: Samsung 21700/36V/9.8Ah/353Wh, internal down tube battery; 4-6h charging time

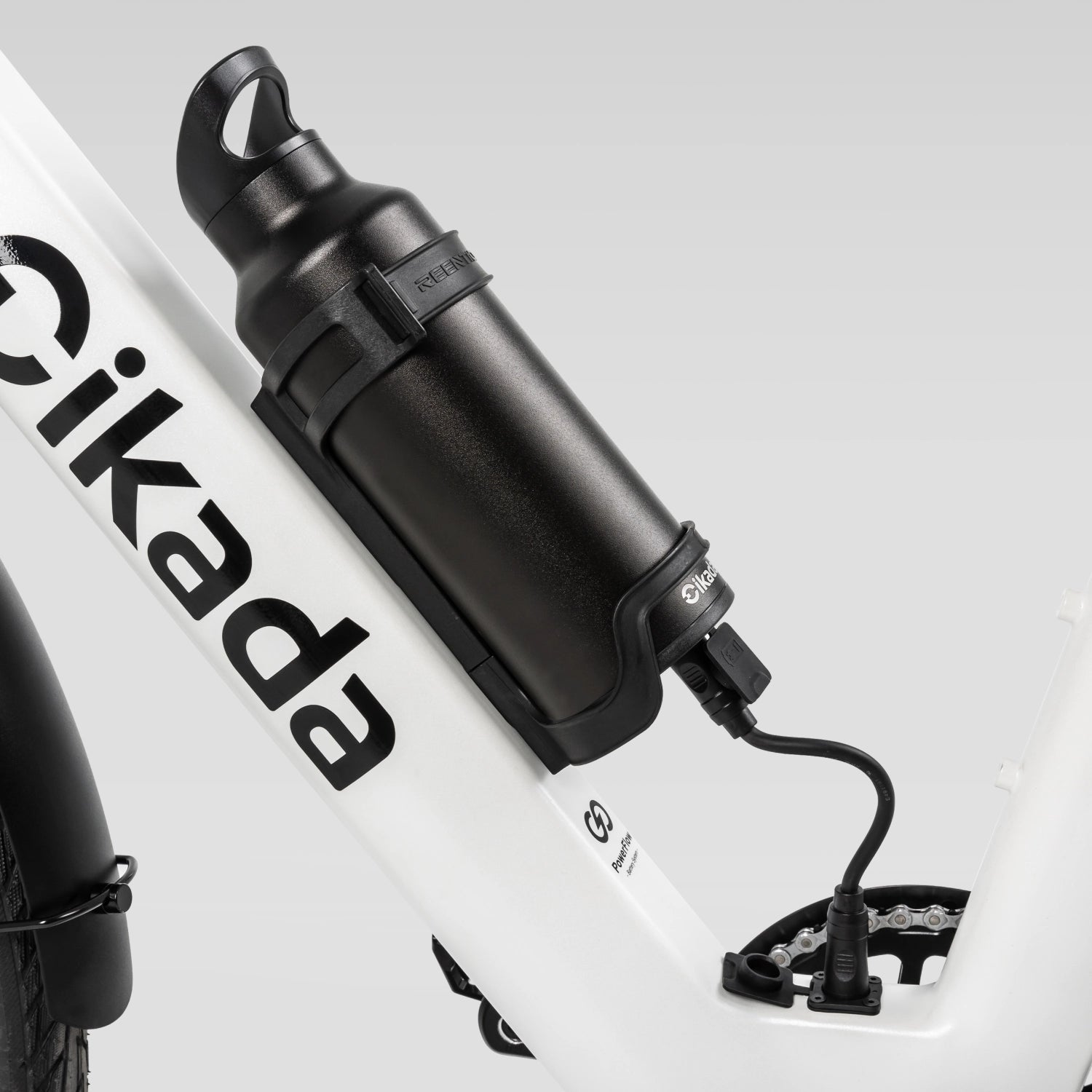

Additional Battery: Samsung 18650/36V/250Wh, water bottle battery (optional extra)
Riding Range: up to 60km (37mi) with main battery and up to 90km (56mi) with the optional water bottle battery

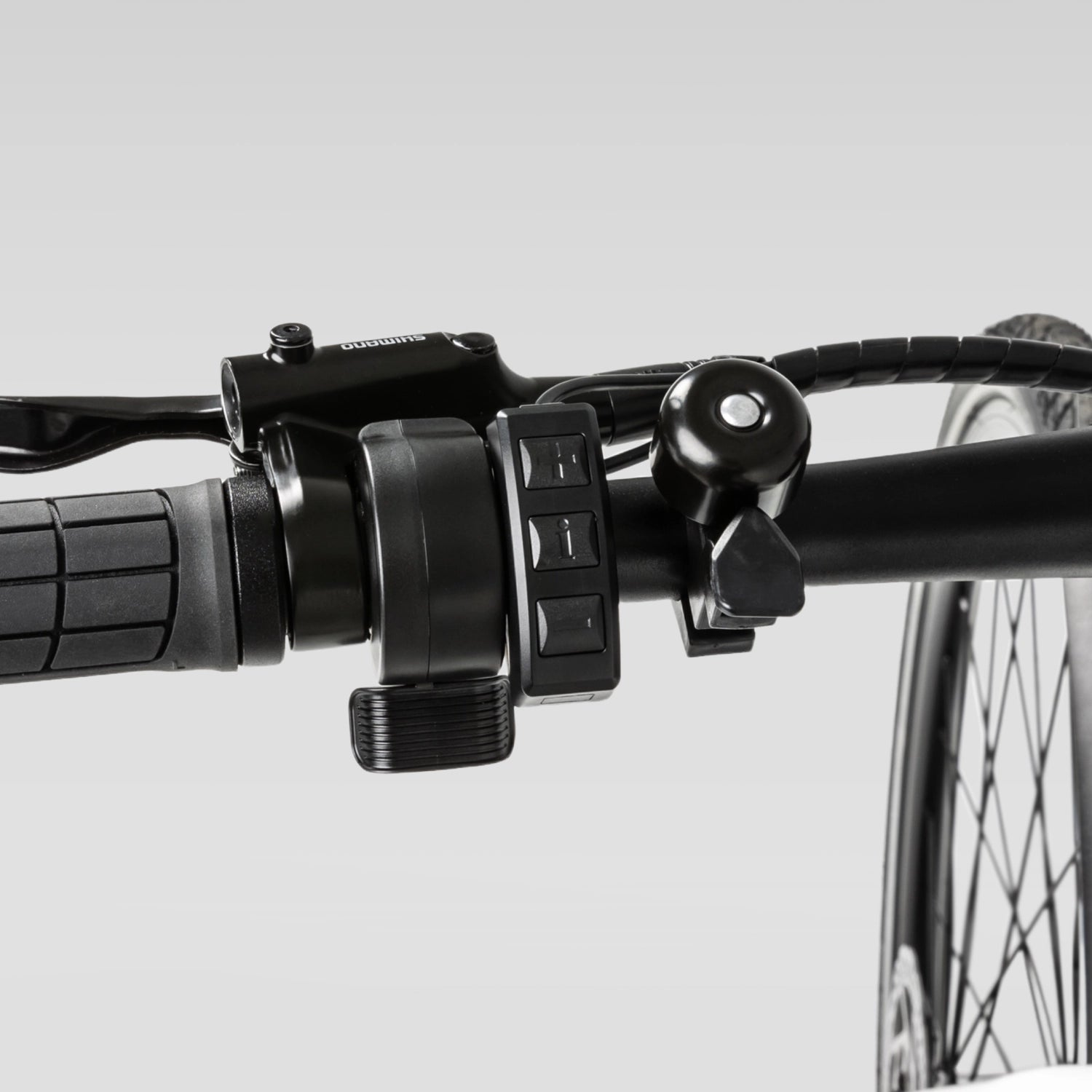

Display: Stem integrated FocusRide GoDash TFT display with Bluetooth (2ā/36V); 3 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view
Torque Sensor: Yes
Frameset
Frame: 6061 aluminium (700C x M500mm / L 540mm / XL 580mm )
Fork: Aluminium 6061 T6, rigid fork, Old - 10mm x 100mm
Wheels
Tyres: Schwalbe Road Cruiser KGuard, 42-622 green 50 EPI
Rims: 700C alloy double wall rim, ETRTO - 622 x 18.8, 36H x 13G
Front Hub: 36H x 13G, O.L.D ā 100mm, CR-MO hollow axle, W/QR
Rear Hub: Hub motor
Spokes: 13G stainless black spokes, with 14mm brass nipples
Interactivity
Compatible Applications: Cikada Connect app
Drive Train
Crankset: Prowheel steel chainring, crank length ā 170mm JIS

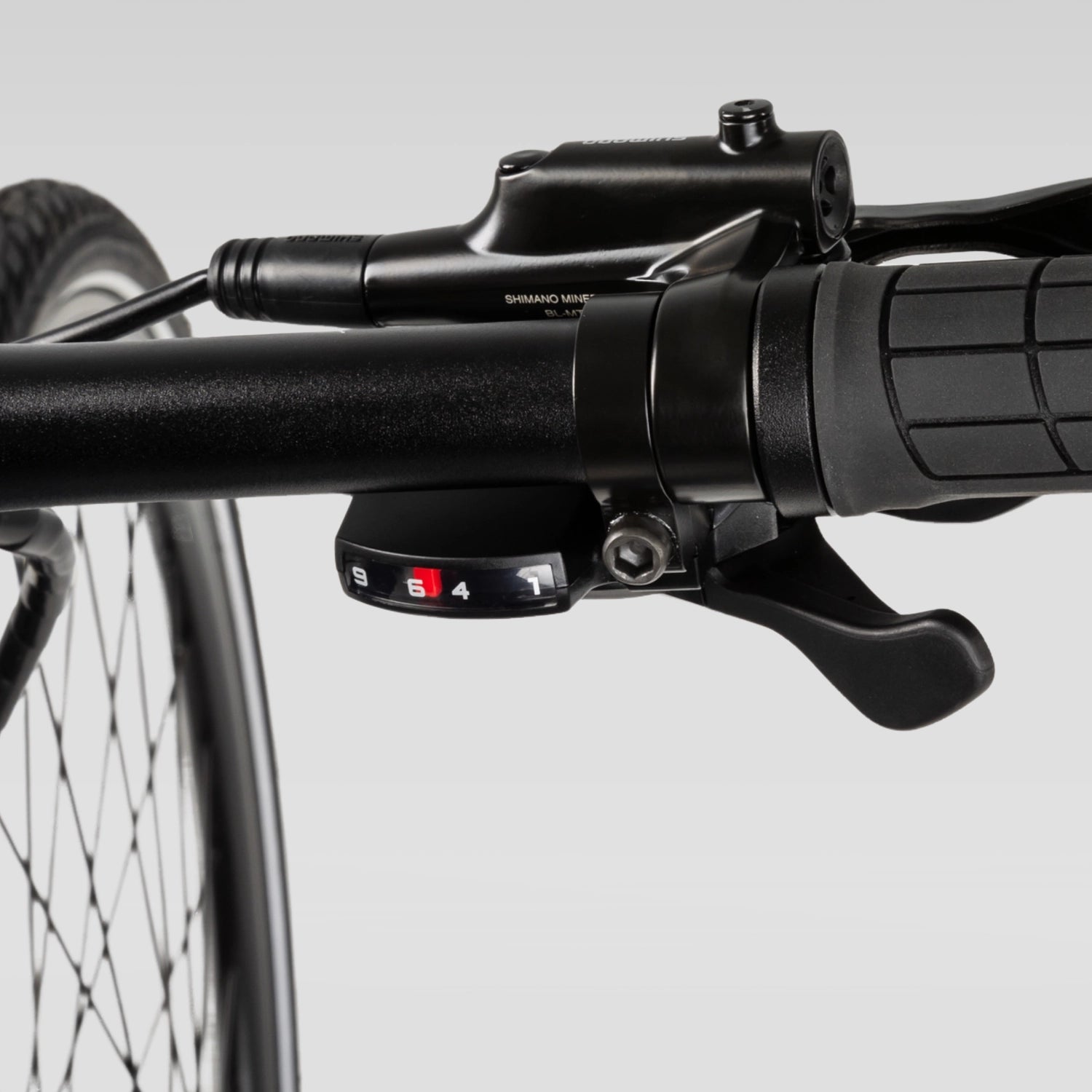

Shift Lever: Shimano Cues U4000

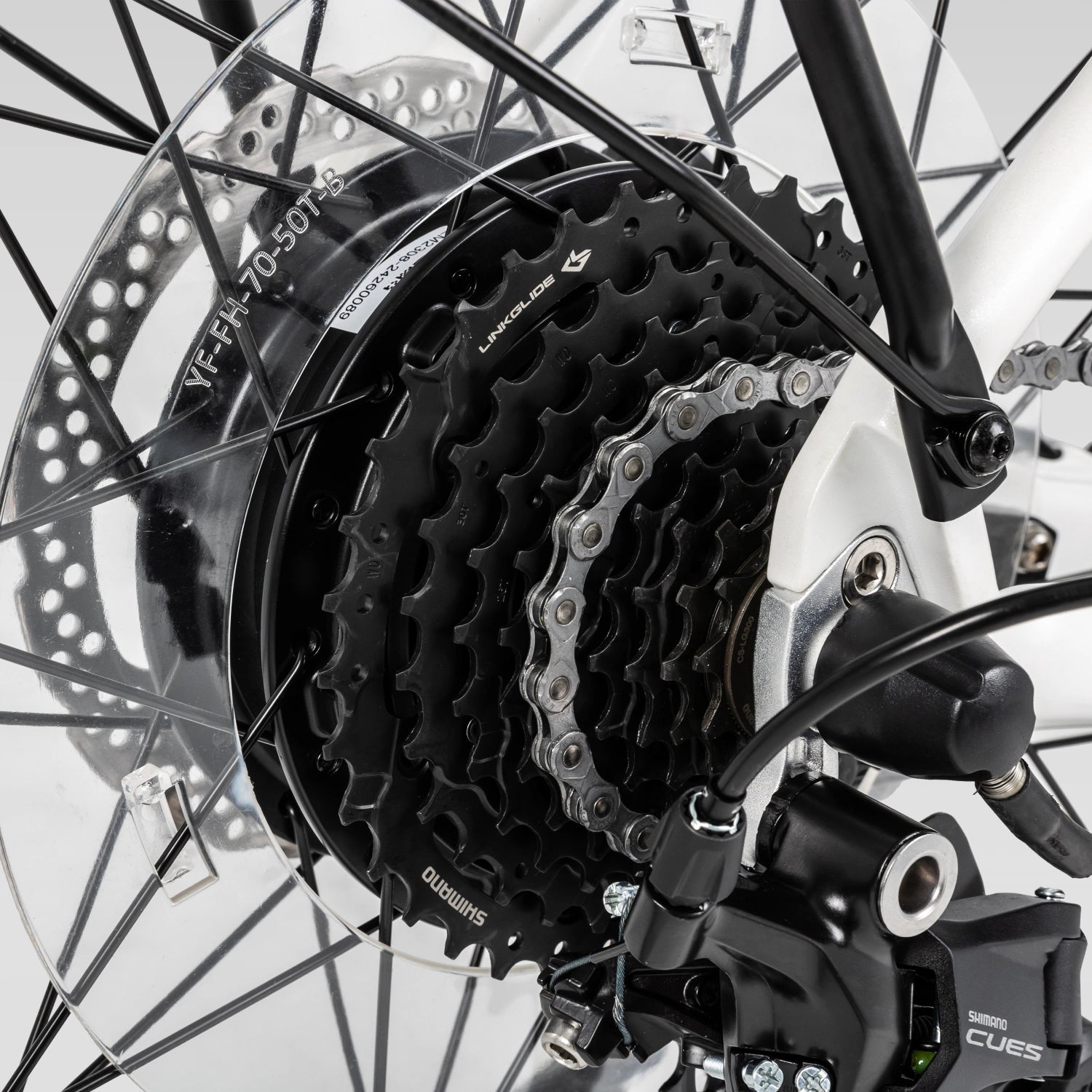

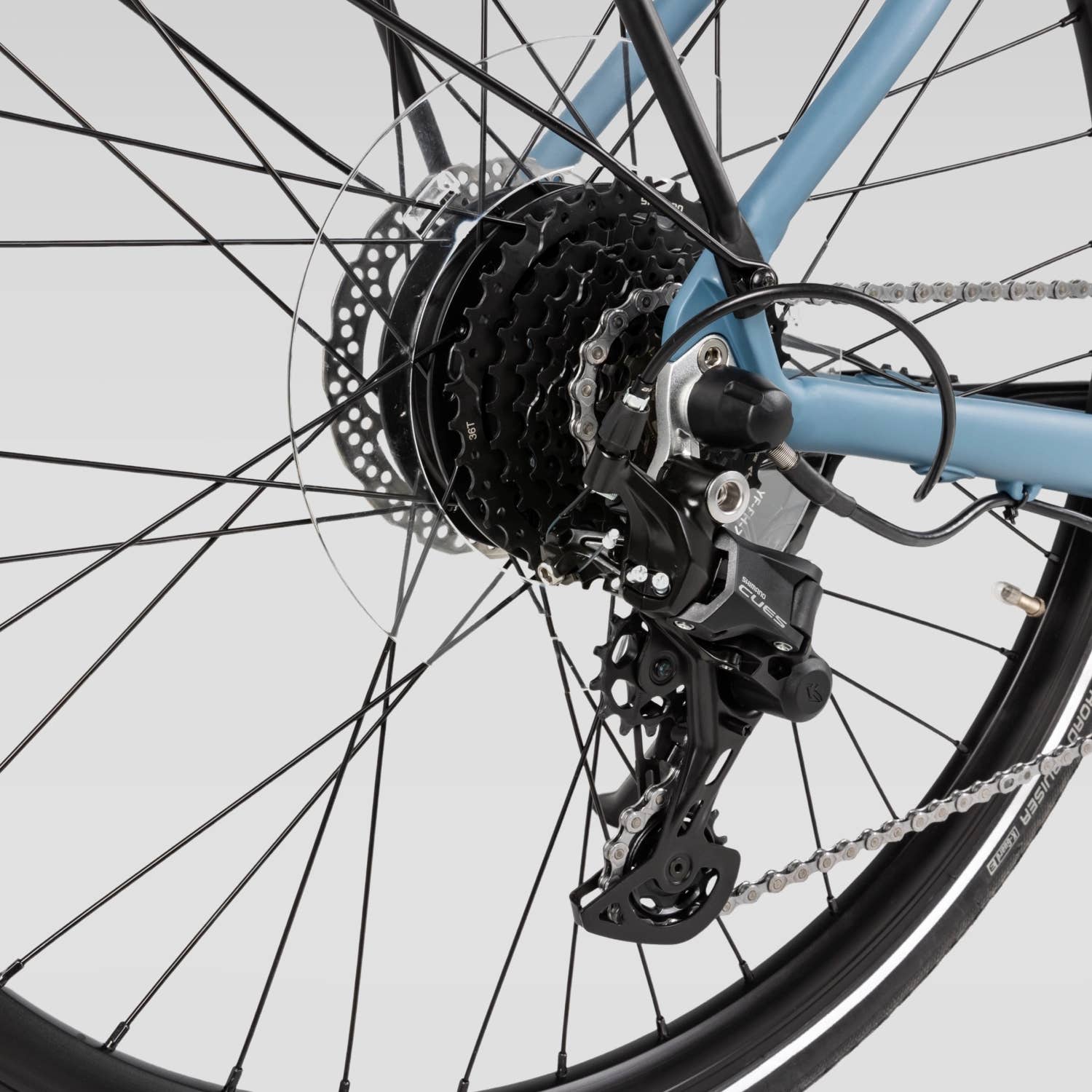

Rear Derailleur: Shimano Cues RD-U4000
Cassette: 9 spd, 11-36T
Chain: KMC-Eglide-EPT

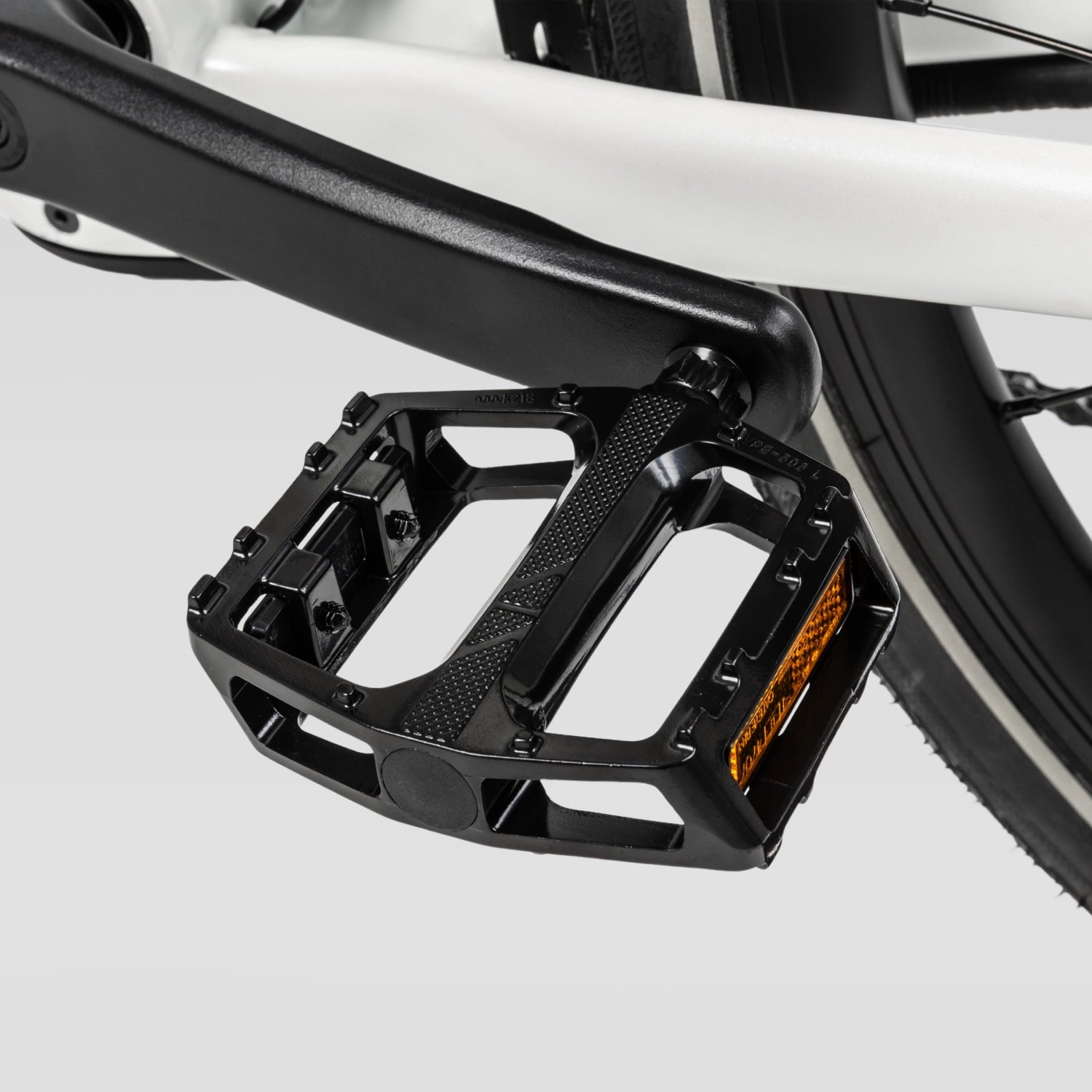

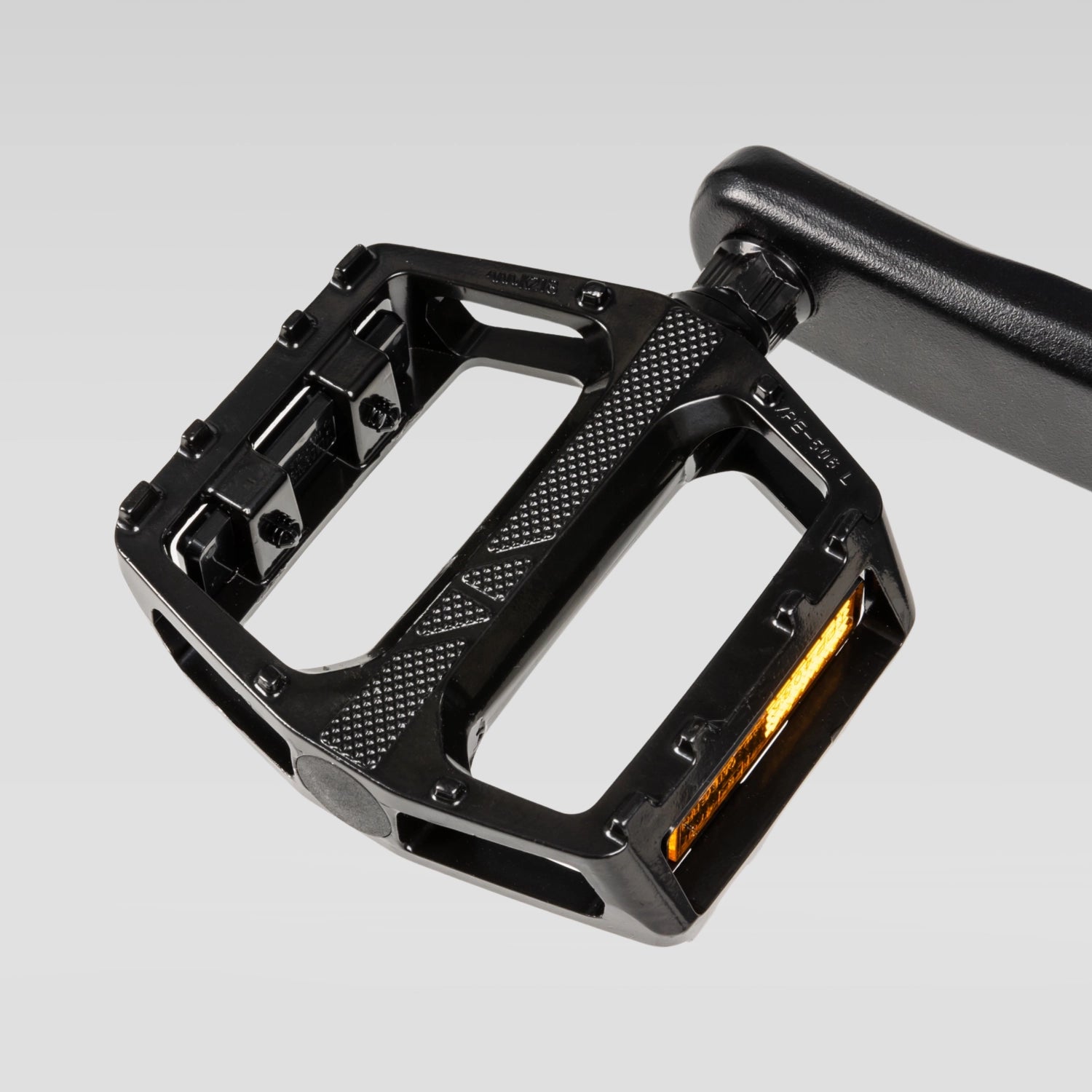

Pedals: Alloy body steel boron axle 9/16ā, 7mm boron steel, Size - 112mm x 100.5mm, with reflector fine line included, TW K-Mark
Components

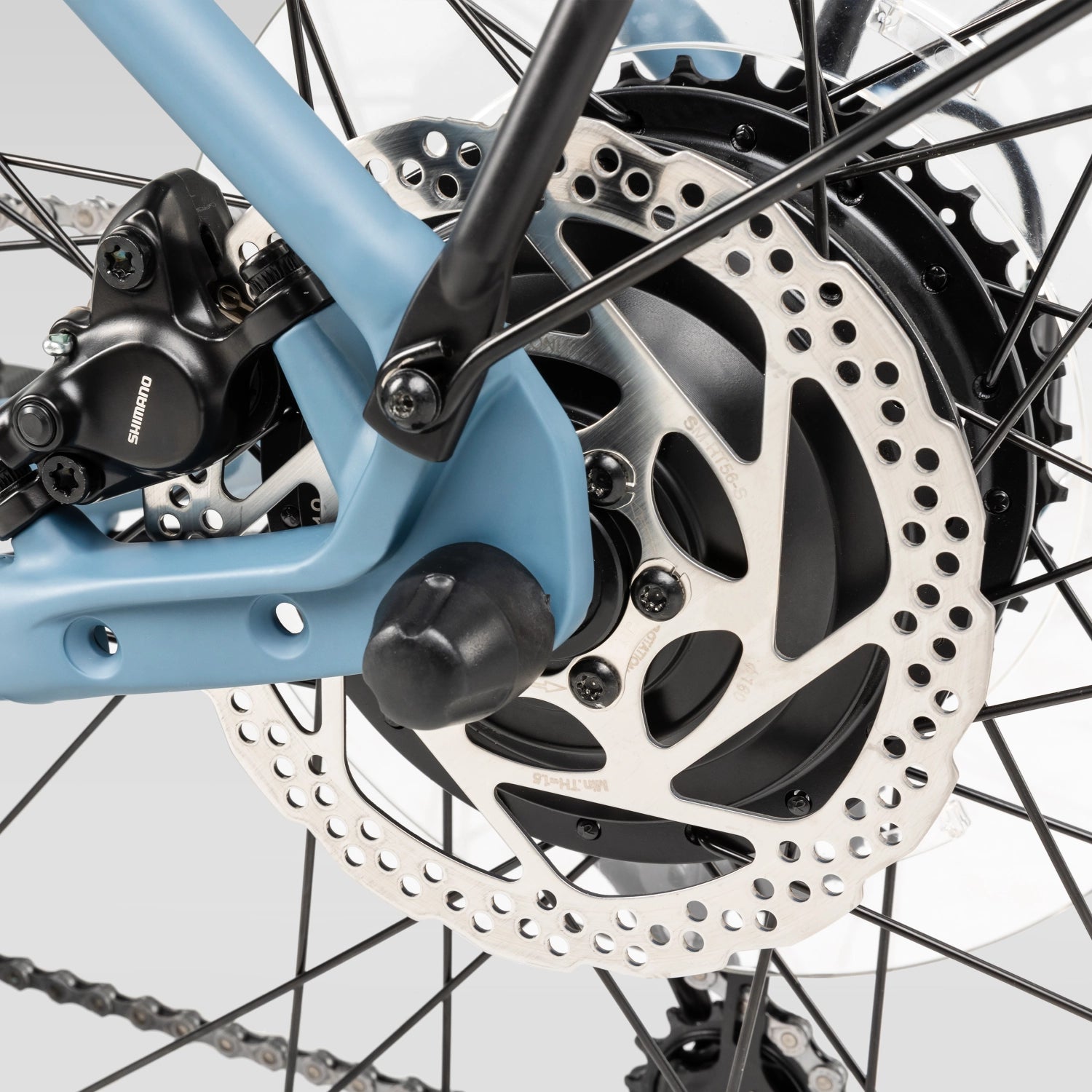

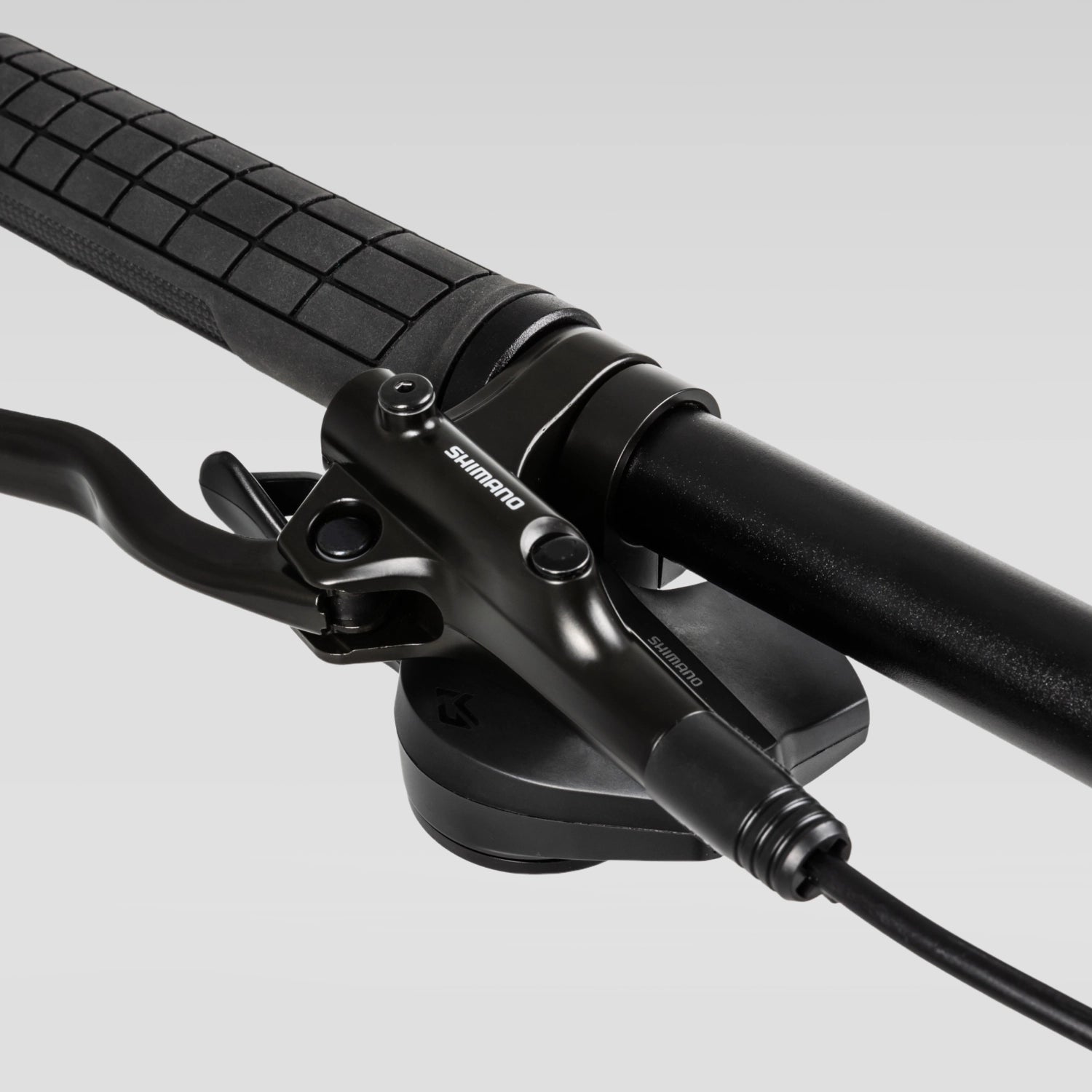

Brakes: Shimano hydraulic disc brakes, 160mm rotor, MT120
Handlebar: Straight handlebar; alloy 6061 PG, Width - 680mm M/ 700mm L&XL, Barbore - 31.8mm, Rise - 0Ā°, Backsweep - 9Ā°, sand blasted anodised black
Stem: Alloy forged stem, Barbore - Ć31.8mm, Extension - 100mm, Rise - 15Ā°, Height: 40mm, sand blast anodised black, with front light bracket
Headset: Box headset (IS52/28.6, L IS52/30), integrated cable routing headset for zoom stem

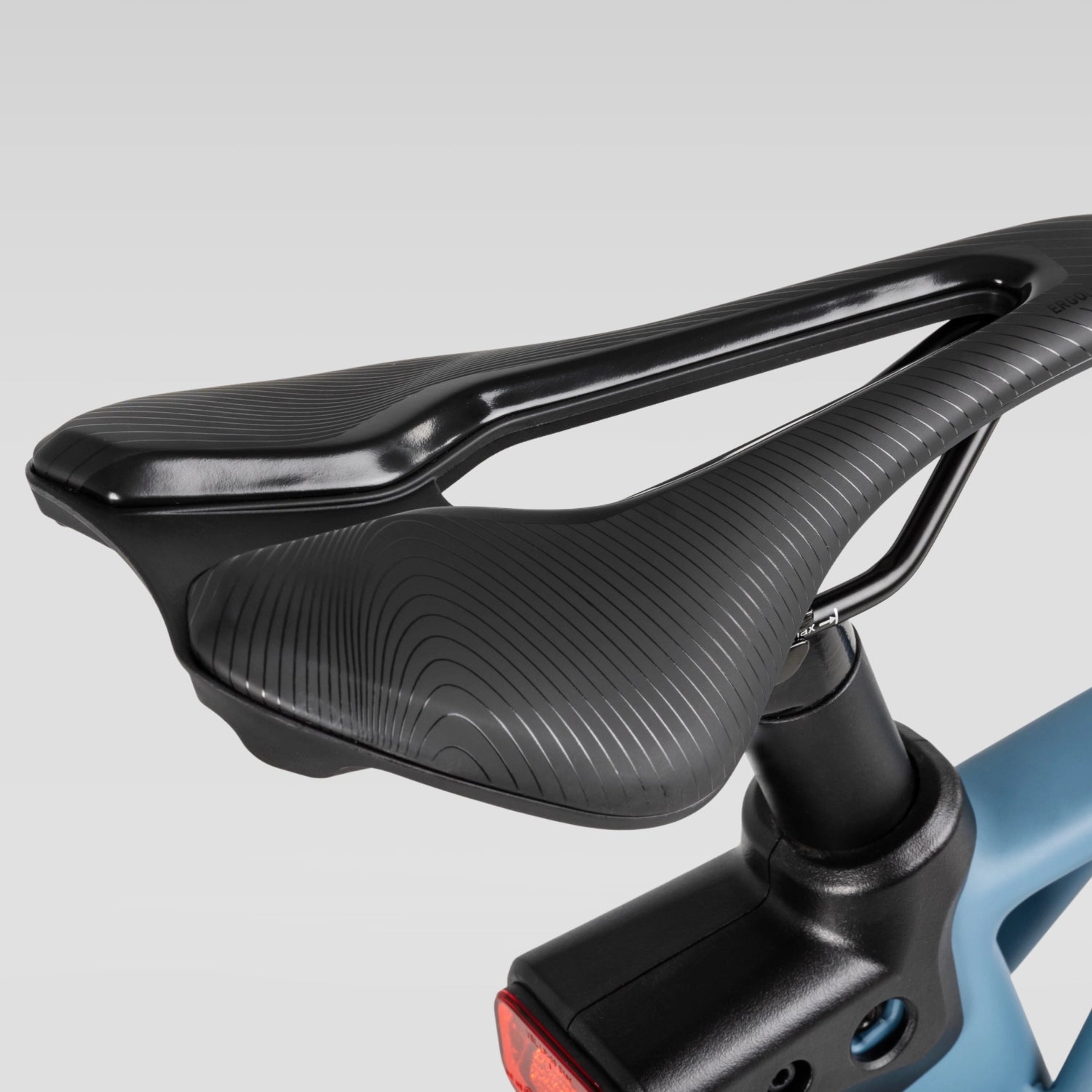

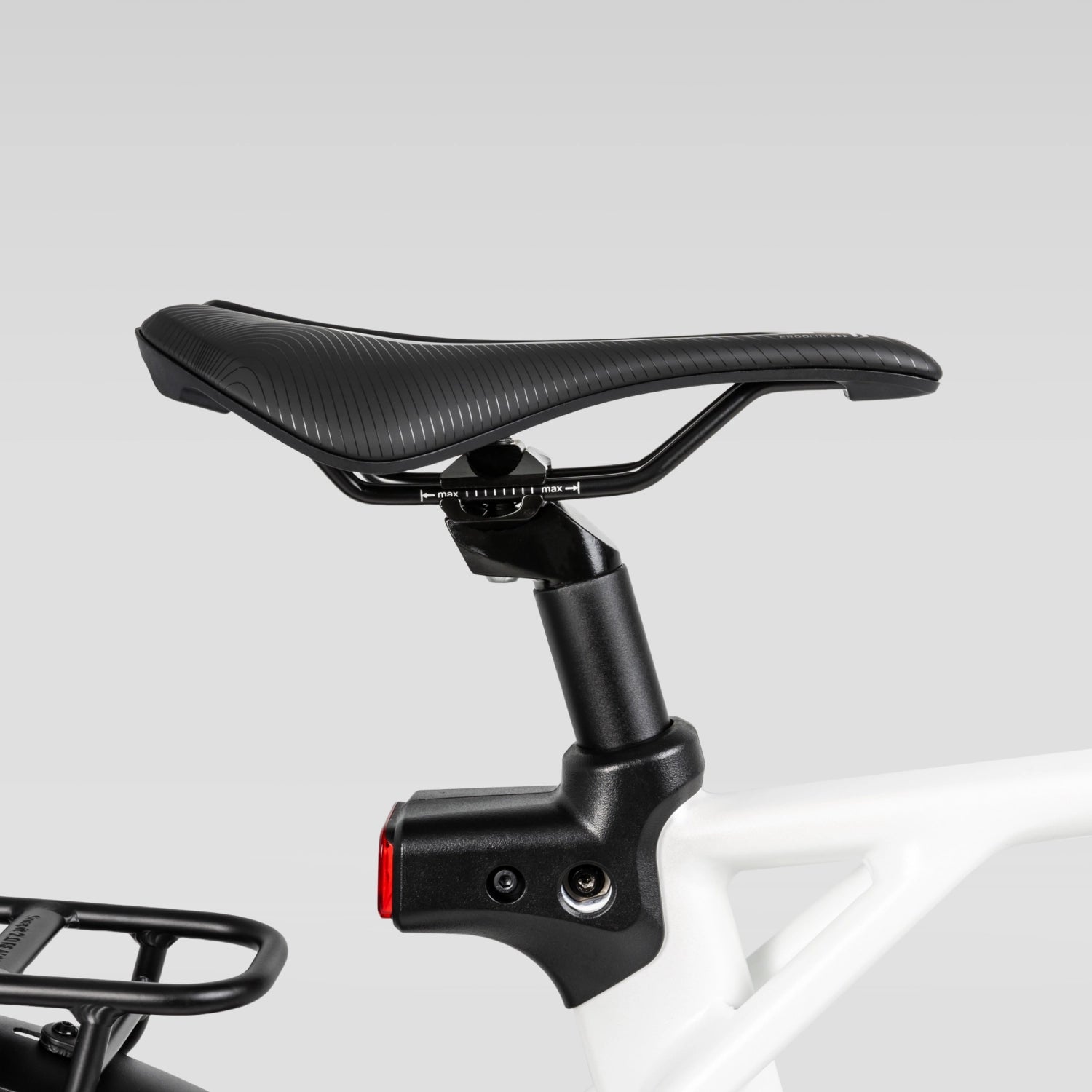

Saddle: Ergonomic sport saddle; Size - 250mm x 140mm, Material - Support PU foam, Base: PP, Rail: Steel ED black with scale, seat weight - 284g (10oz)
Seatpost: Die-casting alloy, Diameter - Ć 31.6, Offset 16mm, Length - 300mm M&L/ 350mm XL
Grips: Material ā PP/TPR, spec ID Ć22.2mm x OD 31mm x 136mm, with black anodised clamp, close end
Bottom Bracket: Torque sensor single, BB 73/ JIS
Additional Information
Product Weight: 21kg (46lbs)
Maximum User Weight: 120kg (264.5lbs)
Size Options
M: 20ā (50cm) for riders between 5ā3ā - 5ā9ā (160cm - 175cm) in height
L: 21ā (54cm) for riders between 5ā7ā - 6ā1ā (170cm - 185cm) in height
XL: 23" (58cm) for riders between 5ā11ā - 6ā5ā (180cm - 195cm) in height
Accessories

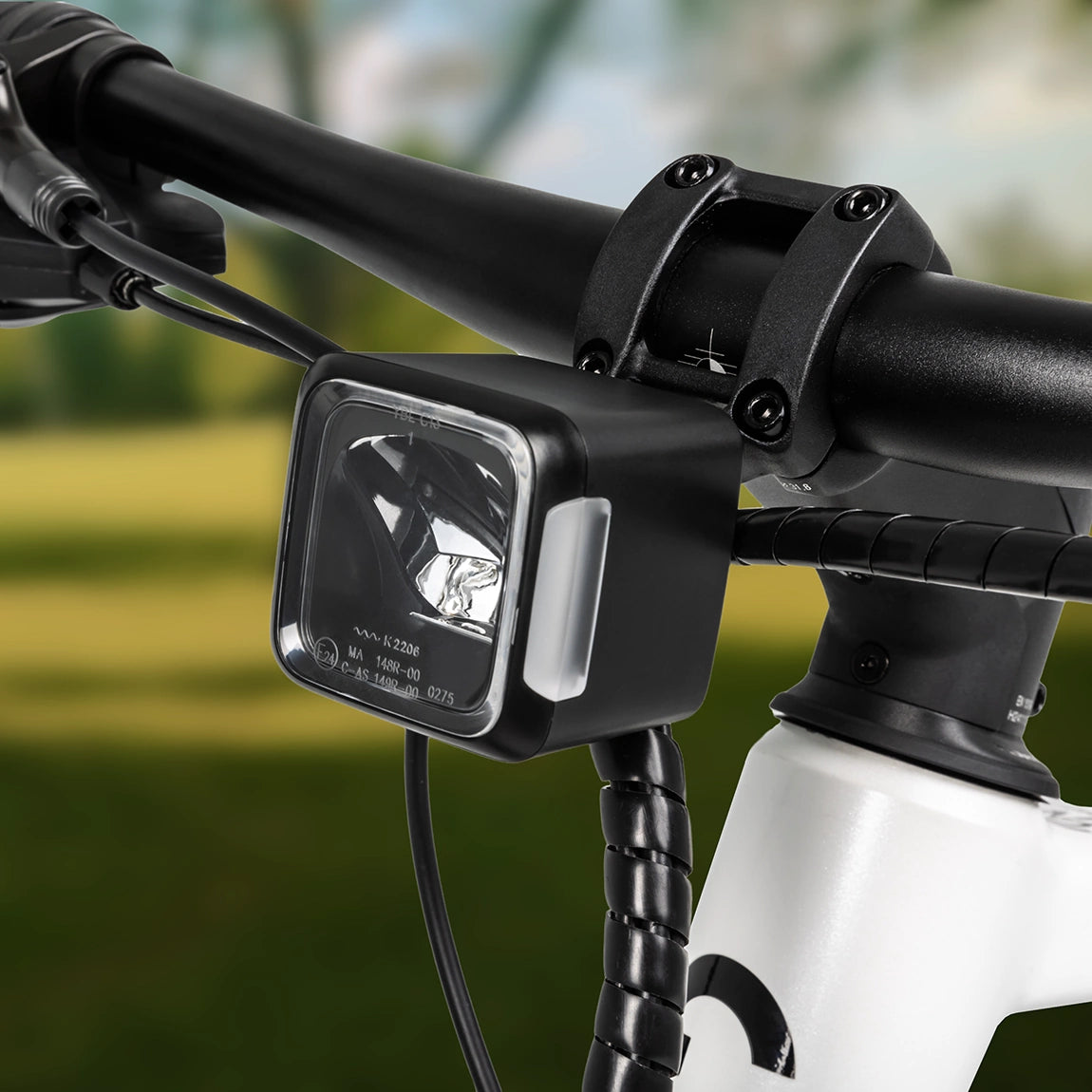

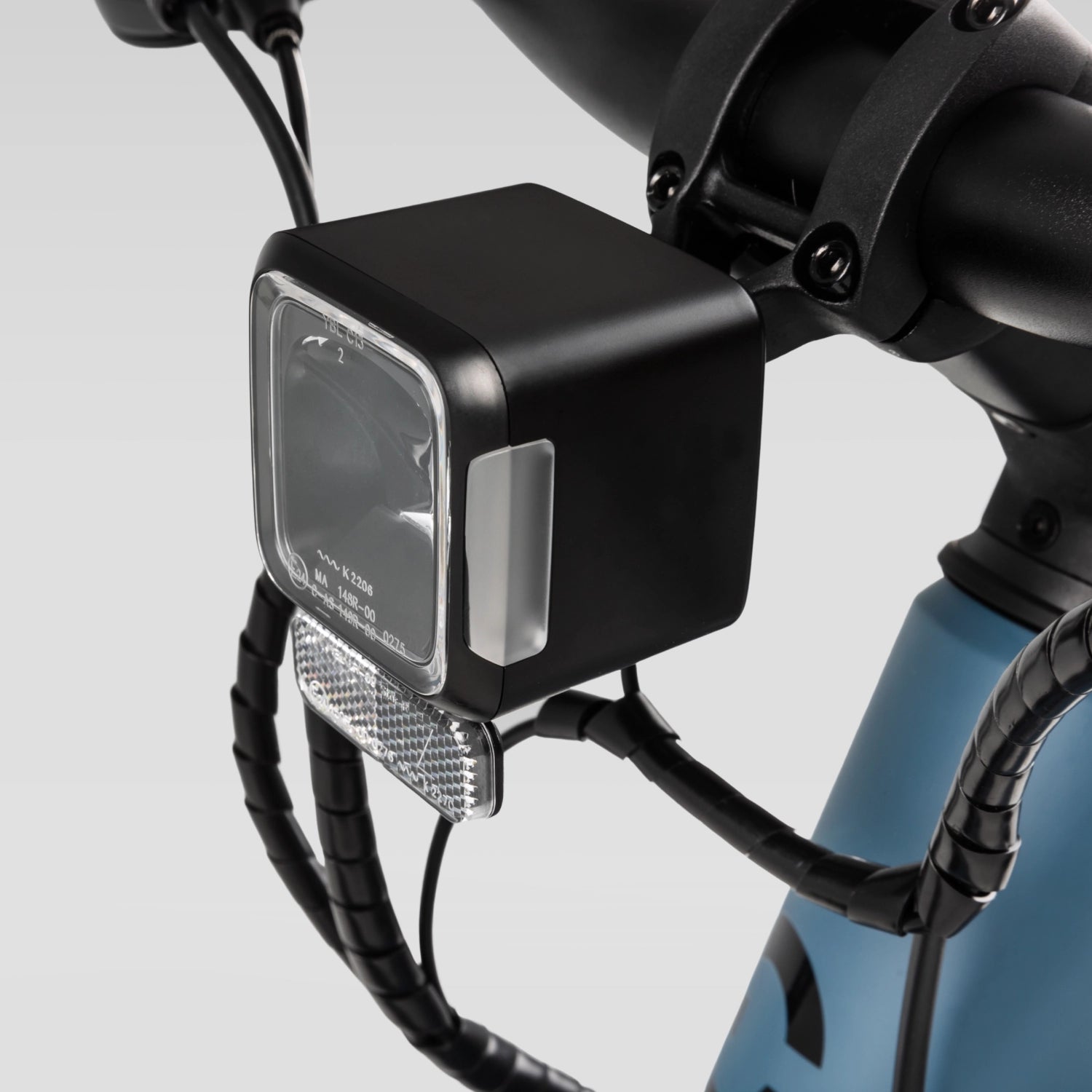

Head light

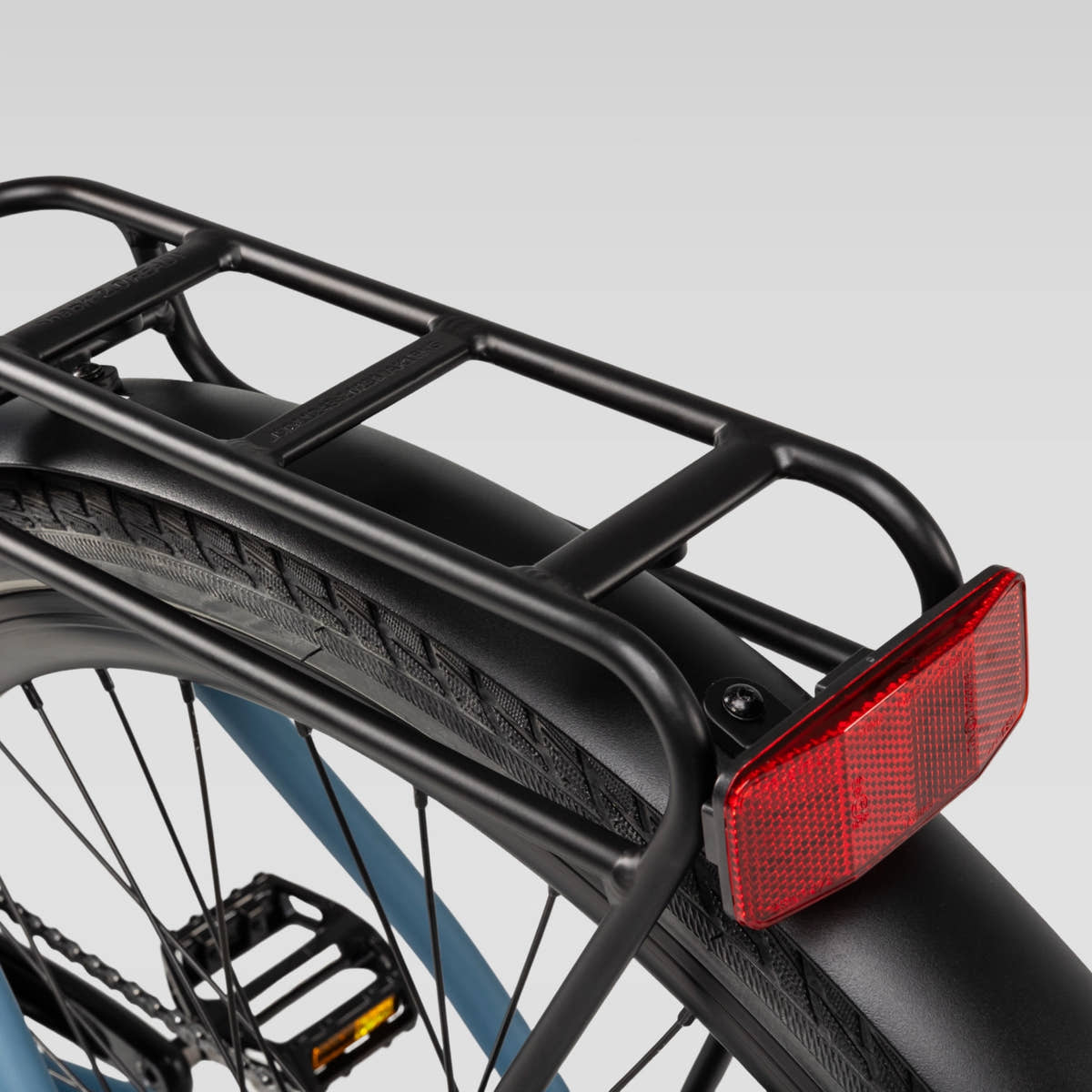

Tail light
Kickstand
Fender
Bell
